A WRISTBAND PRINTER THAT SPECIALIZES IN HEALTHCARE
Patient wristbands are the foundation for a safer, more efficient process for delivering care. The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market - Zebra's Z-Band® wristbands. Offering comprehensive connectivity options, a disinfectant-ready UV-resistant housing and the powerful Print DNA suite of applications, utilities and developer tools, the ZD510-HC increases staff productivity and patient safety. Also capable of printing wristbands for amusement, water-park and entertainment applications, the ZD510-HC is the industry's easiest to use and most dependable wristband printing solution.
VIRTUALLY NO TRAINING REQUIRED

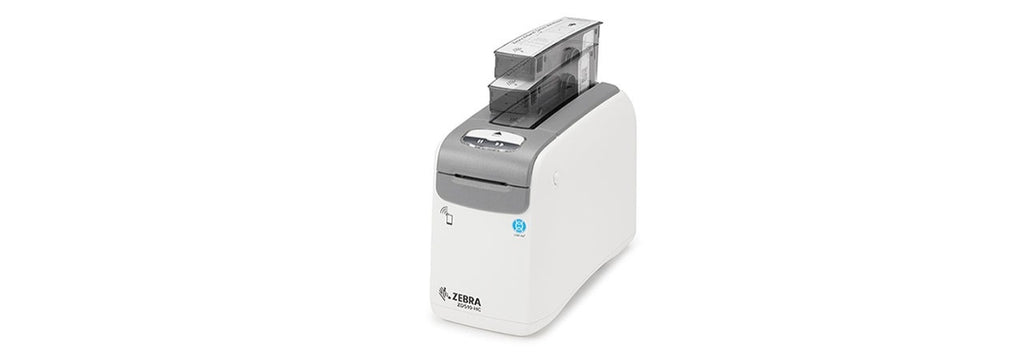

The ZD510-HC is the easiest wristband printer to use on the market. Just insert the wristband cartridge containing Zebra Z-Band wristbands and print. The printer instantly identifies the wristband size and automatically configures darkness and speed settings for optimal print quality.
EXCEPTIONAL QUALITY WITH ZEBRA Z-BANDS
Designed, produced and rigorously pre-tested, you get optimum image durability and scanning performance with Z-Band wristbands. They are resistant to hand sanitizers and are available in a variety of sizes, softness levels and colors.
EASY TO CLEAN
The ZD510-HC printer's disinfectant ready UV-resistant housing is designed to handle regular sanitizing with harsh chemicals and UV light, helping prevent the spread of germs and increase patient safety.
TRUST YOUR WRISTBAND PRINTING TO A SPECIALIST
The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market - Zebra's Z-Band® wristbands. Also capable of printing wristbands for amusement, water-park and entertainment applications, you get dependable wristband printing that increases patient safety and staff productivity.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 300 x 300 DPI
- Print speed: 102 mm/sec
- Maximum printing width: 30.16 mm
- Minimum print length: 76 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: Yes
- Wi-Fi: No
- Bluetooth: Yes
- USB port: Yes
- USB 2.0 ports quantity: 2
- Optional connectivity: Wireless LAN
Performance
- Page description languages: ZBI,ZPL,ZPL II
- Built-in barcodes: AZTECCODE,CODABAR (NW-7),Code 11,Code 39,Code 49,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN14,EAN8,GS1 DataBar Limited,Industrial 2/5,Interleaved 2/5,Logmars,MSI,MaxiCode,MicroPDF417,PDF417,POSTNET,Plessey,QR Code,UPC-A,UPC-E
- Certification: FCC Part 15, Subpart B, VCCI, RCM CE
Design
- Product colour: White
- Built-in display: No
- Display: No
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Operational conditions
- Operating relative humidity (H-H): 20 - 85 %
- Storage relative humidity (H-H): 5 - 85 %
- Storage temperature (T-T): -40 - 60 °C
- Operating temperature (T-T): 4.4 - 40 °C
Weight & dimensions
- Width: 127 mm
- Depth: 242 mm
- Height: 178 mm
- Weight: 1400 g
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
