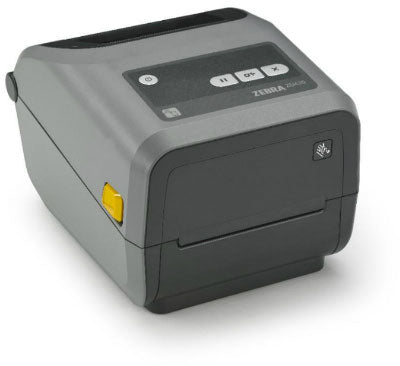

In addition to the innovative ribbon cartridge, on-site upgrades and just about every modern wired and wireless connectivity option, the ZD420 also comes with Link-OS. This unique software platform greatly reduces time spent integrating, managing and troubleshooting all of your printers — making your thermal printers more cost effective than ever. The ZD420 is currently only available for purchase in North America and the European Union countries.
Printing
- Print technology: Thermal transfer
- Colour: No
- Print speed: 152 mm/sec
- Maximum printing width: 104 mm
Paper handling
- Maximum roll diameter: 127 mm
- Maximum label width: 118 mm
- Media thickness: 0.1905 mm
- Maximum label length: 0.991 m
Ports & interfaces
- Ethernet LAN: Yes
- Wi-Fi: No
- Bluetooth: Yes
- USB port: Yes
- USB 2.0 ports quantity: 2
Performance
- Page description languages: EPL2,XML,ZPL II
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: 1D,2D,AZTECCODE,CODABAR (NW-7),Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,MaxiCode,PDF417,QR Code,UPC-A,UPC-E
- Built-in RFID module: No
- Certification: IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Design
- Product colour: Black
- Housing material: Plastic
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- AC adapter output voltage: 24 V
- AC adapter output current: 3.125 A
System requirements
- Mobile operating systems supported: Android,iOS
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): 4.4 - 41 °C
- Storage temperature (T-T): -40 - 60 °C
Weight & dimensions
- Width: 202 mm
- Depth: 254 mm
- Height: 177 mm
- Weight: 2300 g
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- LED indicators: Yes
- Clock function: Yes
