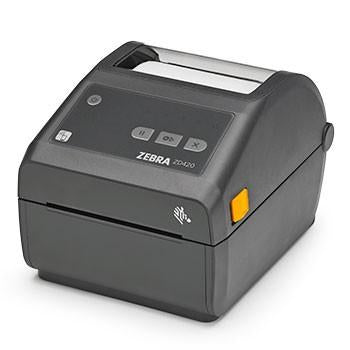

If you need fast 4-inch thermal printers that are easy to use, easy to deploy and easy to manage, then choose the ZD420. Building on the legacy of the industry-leading GK Series printers, the ZD420 Series printers deliver features and functionality that take deployment and management simplicity to a new level. The ZD420's faster, higher-quality printing keeps your business moving, along with application flexibility and a low total cost of ownership (TCO).
Faster, higher-quality printing keeps your business moving. You get an intuitive interface and wireless connections typically found in higher end models. Plus, field-installable connectivity and media handling options allow you to purchase what you need today, yet easily add new features on site to meet tomorrow’s needs.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 300 x 300 DPI
- Print speed: 102 mm/sec
- Maximum printing width: 108 mm
- Minimum print length: 6.4 mm
Paper handling
- Maximum label width: 118 mm
- Maximum roll diameter: 127 mm
- Media thickness: 0.06 - 0.1905 mm
- Maximum label length: 9.91 m
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: Yes
- Wi-Fi: No
- Bluetooth: Yes
- Bluetooth version: 4.1
- Optional connectivity: USB 2.0
Performance
- Page description languages: EPL,EZPL,ZPL II
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: Code 39,Code 93,Data Matrix,EAN128,EAN13,EAN8,MaxiCode,PDF417,POSTNET,UPC-A,UPC-E
- Built-in RFID module: No
Design
- Product colour: Grey
- Built-in display: No
- Display: No
- Housing material: Plastic
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- AC adapter output voltage: 24 V
- AC adapter output current: 3.125 A
System requirements
- Mac operating systems supported: Yes
- Windows operating systems supported: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 5 - 95 %
- Storage temperature (T-T): -40 - 60 °C
- Operating temperature (T-T): 5 - 41 °C
Weight & dimensions
- Width: 202 mm
- Depth: 254 mm
- Height: 177 mm
- Weight: 2300 g
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Character sets: ASCII
- LED indicators: Yes
