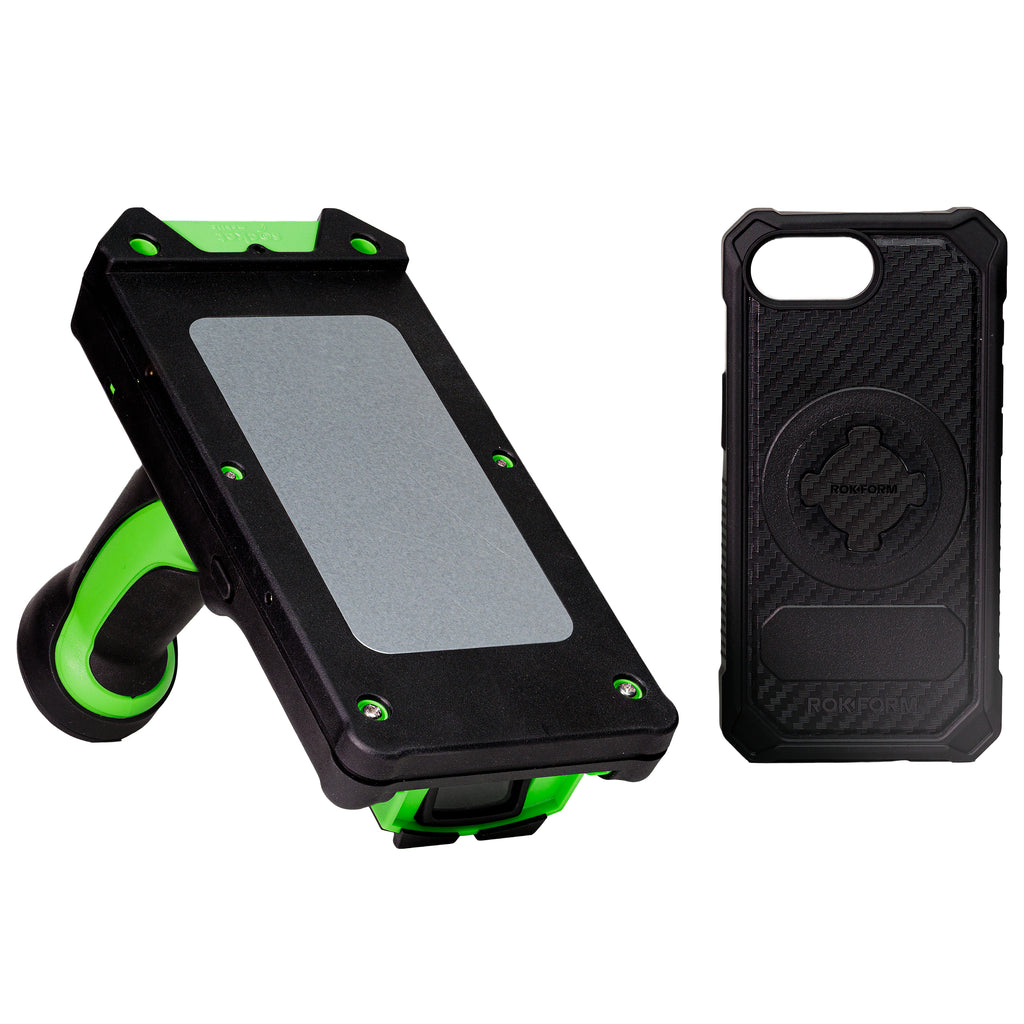

Based on the Socket Mobile XtremeScan Mag platform, the XG630 is designed for BYOD (Bring Your Own Device) operations and seamless integration with any mobile device. It offers an optimal solution to enhance efficiency and convenience in mobile workforces. Featuring a secure magnetic attachment system, workers can easily attach and detach their personal mobile devices throughout the day. This flexibility empowers users to switch between tasks such as navigation, photos, and communication while adding high-performance 1D barcode scanning when needed.
With its innovative BYOD design and rugged durability, the XG630 is ideal for modern delivery and inventory operations. It ensures tasks are completed efficiently without requiring multiple devices.
The XG630 features a comfortable pistol grip handle and fast, precise 1D laser scanning, offering a straightforward "point and shoot" approach for effortless data capture during work shifts. It also includes extended battery life for continuous operation, military-grade durability to withstand drops and harsh environments, and a user-friendly interface with intuitive LED indicators and a multi-function trigger button to simplify scanning tasks.
Equipped with Bluetooth connectivity and a strong metal plate attachment system, the XG630 ensures optimal compatibility with any mobile device and reliable integration with iOS and Android business applications.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- Sensor type: LED
- 2D (matrix & stacked) barcodes supported: Not supported
- Linear (1D) barcodes supported: Codabar,Code 128,Code 93,Code 39,EAN-8,EAN-13,JAN-13,JAN-8,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1 Databar Limited,Interleaved 2 of 5,ISBT 128,Trioptic,UPC-A,UPC-E
- Light levels (direct sunlight): 0 - 100000 lx
- Tilt reading angle: 10 - 47 °
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth: Yes
Performance
- Product colour: Black,Green
- Housing material: Plastic,Glass
- International Protection (IP) code: IP67
- Protection features: Drop resistant
- LED indicators: Yes
- Print contrast: 25 %
- Country of origin: China
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 700 mAh
- Battery voltage: 3.7 V
- Battery life: 25 h
- Charging time: 8 h
Weight & dimensions
- Width: 91 mm
- Depth: 91 mm
- Height: 193.1 mm
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Drop resistance: 2.4 m
- Operating relative humidity (H-H): 0 - 95 %
- Operating temperature (T-T): 0 - 45 °C
- Storage relative humidity (H-H): 0 - 60 %
Battery
- Rechargeable battery: Yes
- Battery capacity: 2.59 Wh
- Battery weight: 12.5 g
- Number of battery cells: 1
Technical details
- Compliance certificates: CE,Federal Communications Commission (FCC),UKCA,RoHS
- Warranty period: 1 year(s)
Other features
- Windows operating systems supported: Yes
- Mobile operating systems supported: Android,iOS
