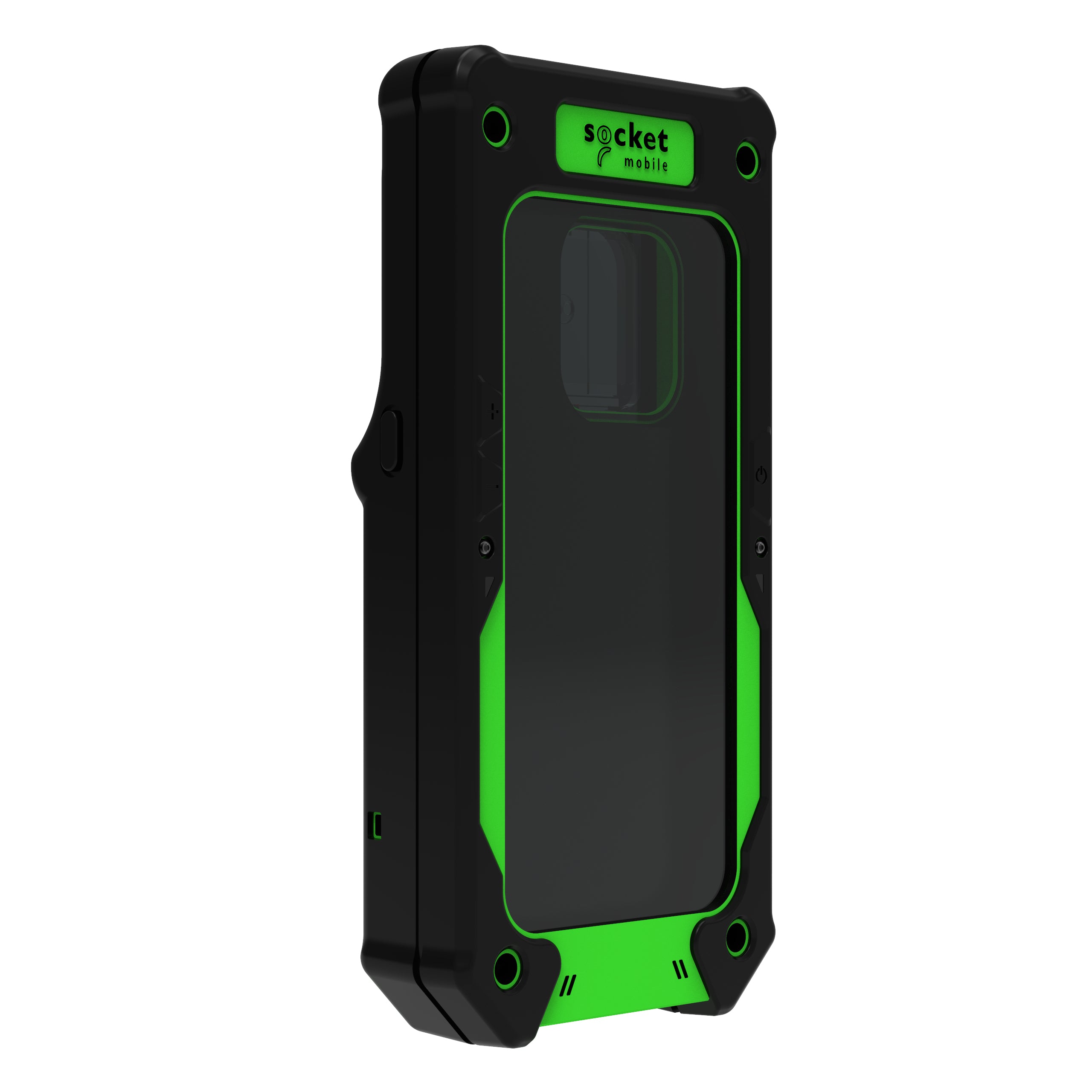

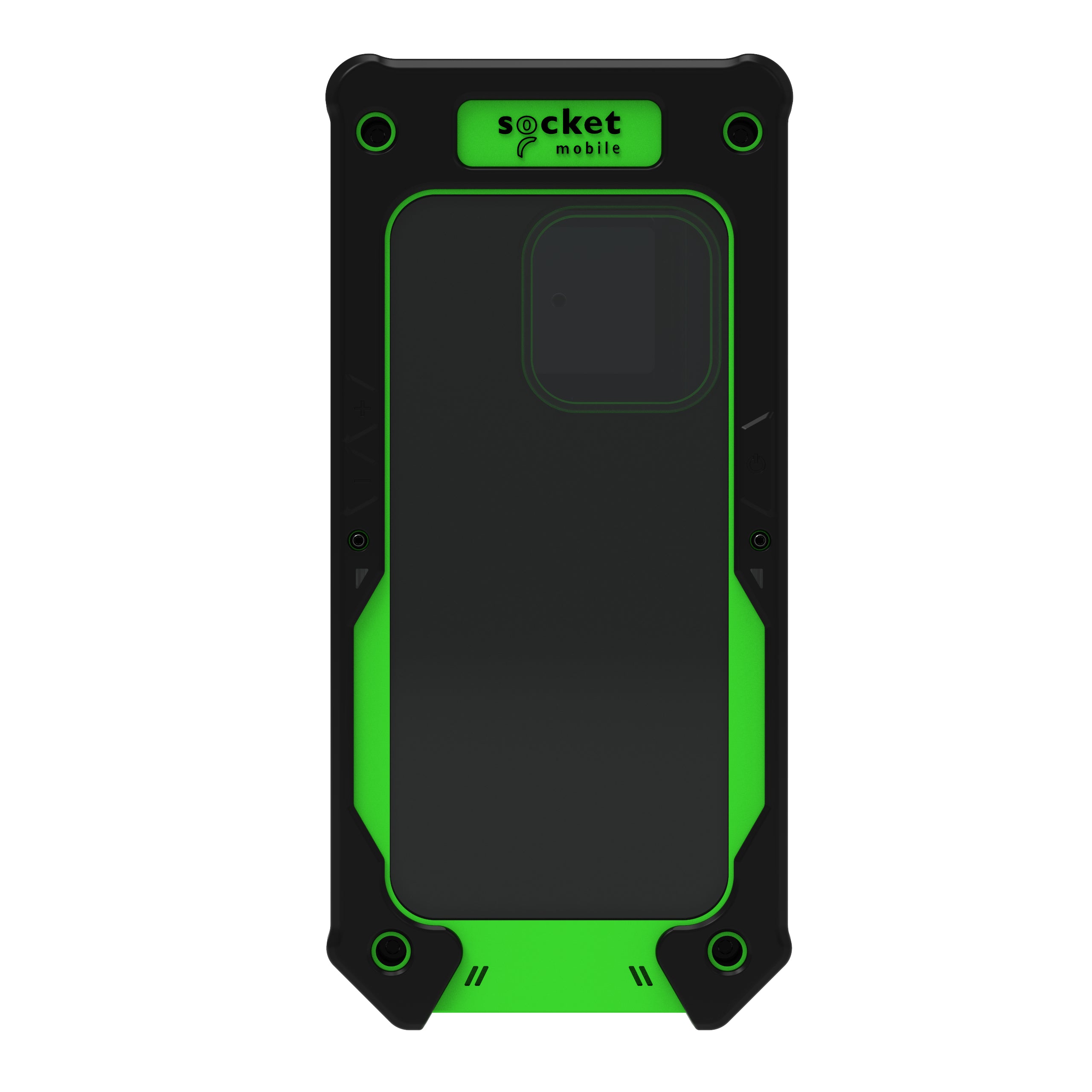

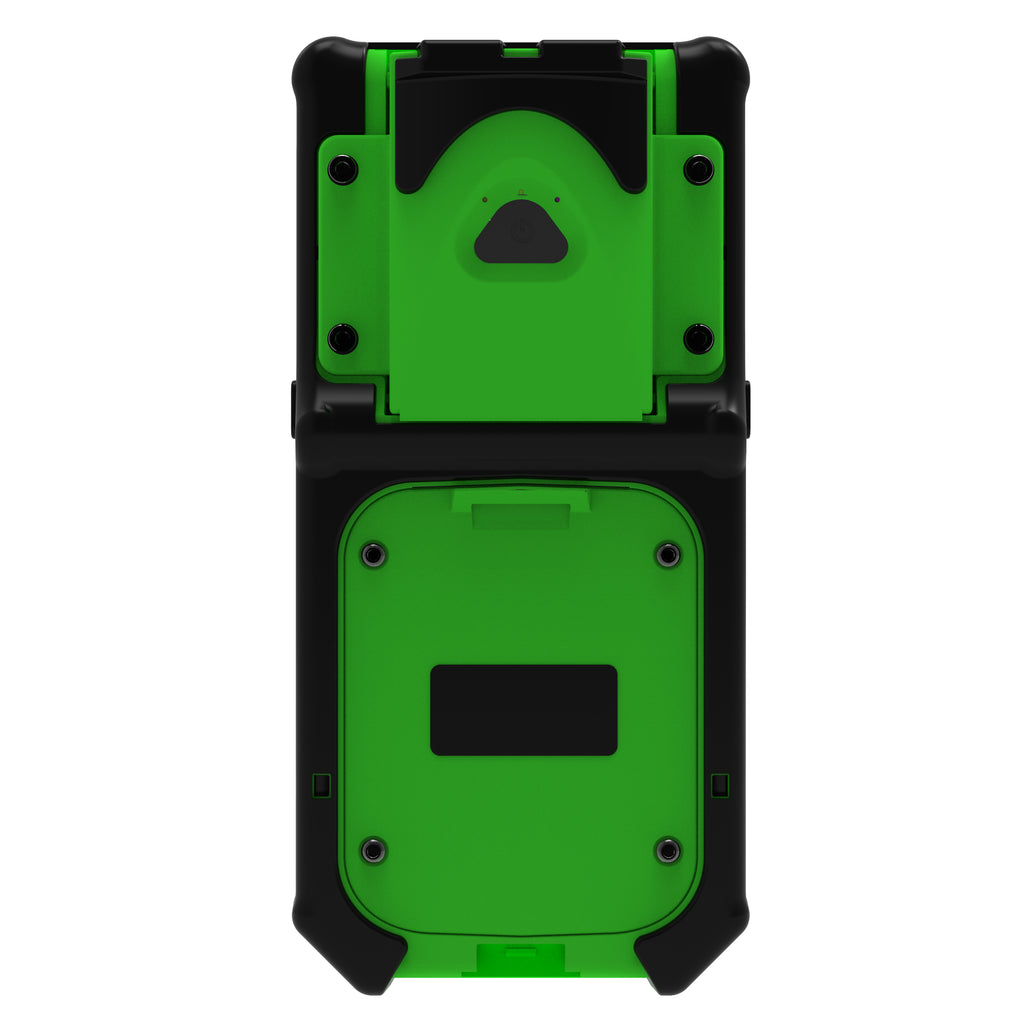

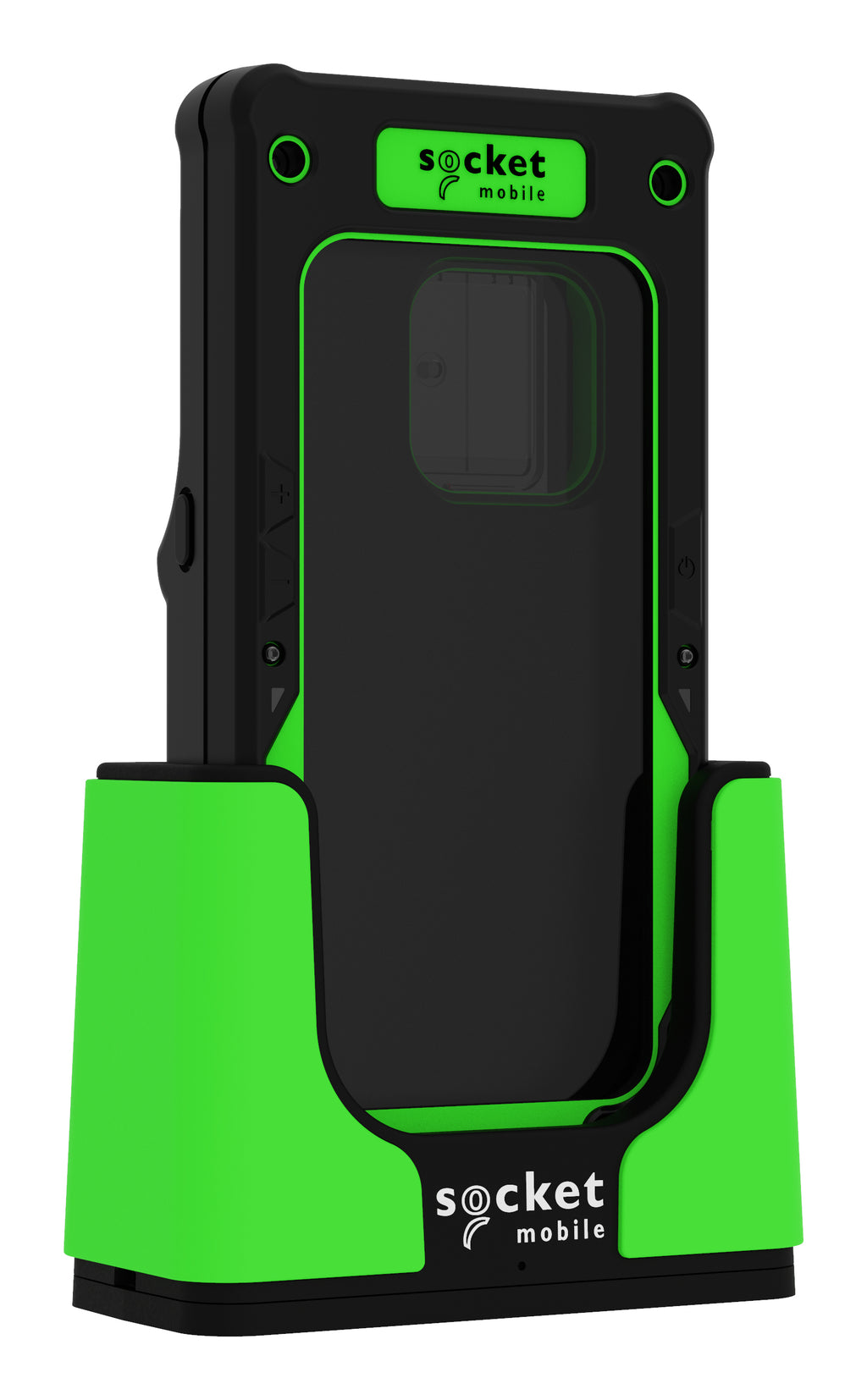

The XtremeScan XS930 is a modular, rugged, handheld mobile data reader that combines an iPhone case and 1D laser barcode reader to form a one-handed, industrial-grade scanning solution. It features long-range scanning capability, making it ideal for applications scanning barcodes on floor labels and rack labels on high shelves. The scanner is integrated with a heavy-duty case and is designed to withstand heavy use in demanding industrial environments. The XtremeScan case provides IP67-sealed housing and protects against jets of low-pressure water. It includes an integrated wireless charger, so you can charge the iPhone without removing it from the case.
With a compatible iPhone, the XtremeScan XS930 laser barcode scanner becomes a versatile and powerful mobile solution that can be used with a variety of industrial applications. The XS930 has a class 2 laser that scans through plastic or glass, in bright or poor lighting conditions, sideways, upside down, or straight at imperfect barcodes. Depending on the barcode symbology, width, size, and label media, the XS930 can scan from 1.2 inches (3.0 cm) to 180 inches (457.2 cm). The industrial-grade, rugged housing can handle multiple drops onto concrete.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- 2D (matrix & stacked) barcodes supported: Not supported
- Linear (1D) barcodes supported: Codabar,Code 128,Code 39,Code 93,EAN-13,EAN-8,JAN-13,JAN-8,GS1 DataBar Expanded,GS1-128 (UCC/EAN-128),GS1 Databar Limited,GS1 DataBar Omnidirectional,ISBT 128,Interleaved 2 of 5,Trioptic,UPC-A,UPC-E
- Sensor type: Laser
- Light levels (direct sunlight): 0 - 100000 lx
- Tilt reading angle: 10 - 47 °
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth version: 2.1+EDR
- Bluetooth: Yes
Performance
- Product colour: Black,Green
- Housing material: Plastic,Glass
- International Protection (IP) code: IP67
- Protection features: Drop proof
- LED indicators: Yes
- Print contrast: 25 %
- Country of origin: China
- Certification: UN3481, P.I. 967
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 700 mAh
- Battery voltage: 3.7 V
- Number of reads per charge: 500
- Battery life: 25 h
- Charging time: 8 h
Weight & dimensions
- Width: 91 mm
- Depth: 44.5 mm
- Height: 193.1 mm
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 0 - 60 %
- Operating relative humidity (H-H): 0 - 95 %
Battery
- Number of battery cells: 1
- Rechargeable battery: Yes
- Battery weight: 12.5 g
- Battery capacity: 2.59 Wh
Technical details
- Compliance certificates: RoHS,Federal Communications Commission (FCC),CE,UKCA
Other features
- Mobile operating systems supported: Android,iOS
