The XS640 stands out as a rugged, high-performance barcode scanner designed for fast, accurate 1D/2D scanning in demanding environments.
Based on the Socket Mobile XtremeScan Mag platform, the XS640 is designed for BYOD (Bring Your Own Device) operations and seamless integration with any mobile device. It offers an optimal solution to enhance efficiency and convenience in mobile workforces. Featuring a secure magnetic attachment system, workers can easily attach and detach their personal mobile devices throughout the day. This flexibility empowers users to switch between tasks such as navigation, photos, and communication while adding high-performance 1D/2D barcode scanning when needed.
With its innovative BYOD design and rugged durability, the XS640 is ideal for modern delivery and inventory operations. It ensures tasks are completed efficiently without requiring multiple devices.

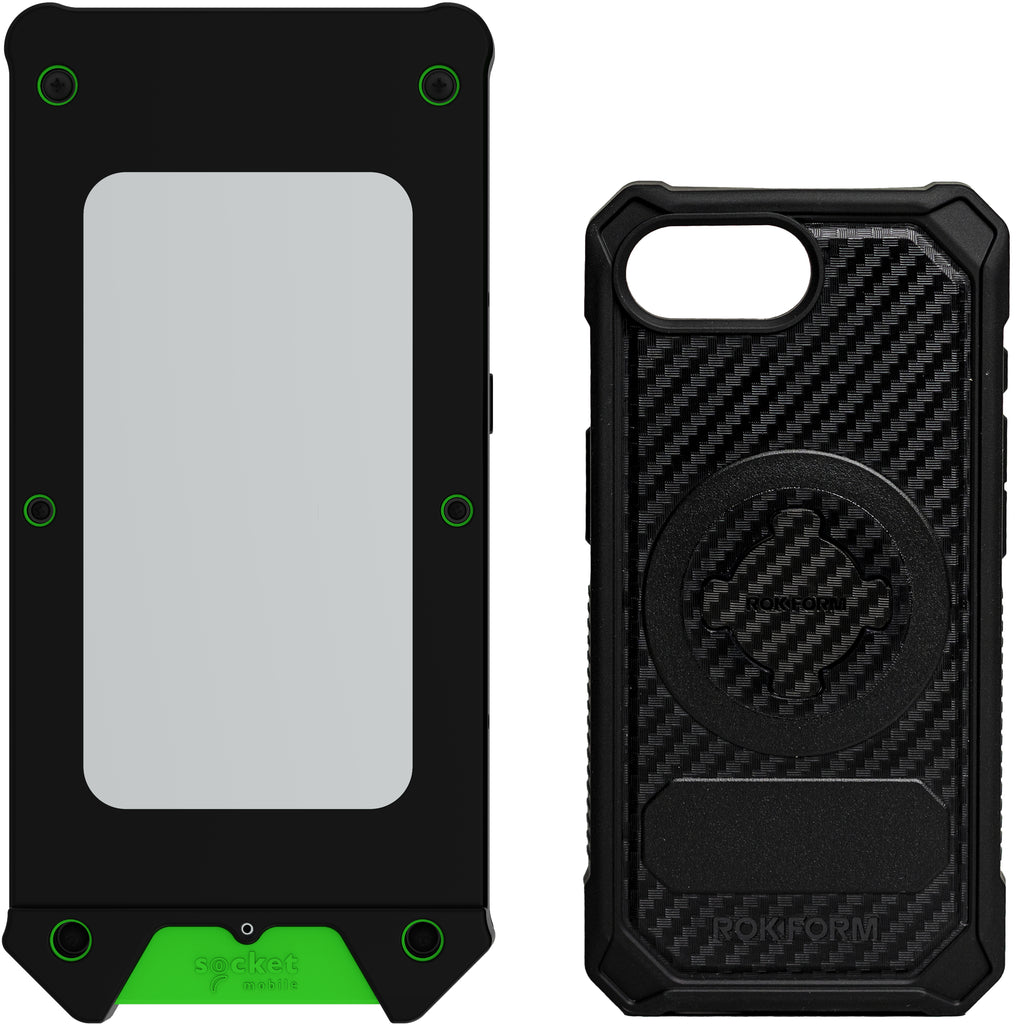

Featuring a streamlined case format, the XS640 offers a compact, easy-to-handle design for comfortable use over long shifts. Its fast, omnidirectional 1D/2D scanning delivers effortless data capture, and the secure magnetic attachment system allows for quick access when scanning is required. With extended battery life, military-grade durability to withstand drops and harsh conditions, and intuitive LED indicators, the XS640 simplifies scanning tasks while maintaining performance in any work environment.
Equipped with Bluetooth connectivity and a strong metal plate attachment system, the XS640 ensures optimal compatibility with any mobile device and reliable integration with iOS and Android business applications.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Sensor type: LED
- 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,DotCode,Grid Matrix Code,Han Xin,MaxiCode,MicroPDF417,Micro QR Code,PDF417,QR Code
- Linear (1D) barcodes supported: Codabar,Code 128,Code 93,Code 39,EAN-8,EAN-13,JAN-13,JAN-8,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1 Databar Limited,Interleaved 2 of 5,ISBT 128,Trioptic,UPC-A,UPC-E
- Light levels (direct sunlight): 0 - 100000 lx
- Tilt reading angle: 33.5 - 44.5 °
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth version: 2.1+EDR
- Bluetooth: Yes
Performance
- Product colour: Black,Green
- International Protection (IP) code: IP67
- Protection features: Drop resistant
- Print contrast: 25 %
- Country of origin: China
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 700 mAh
- Battery voltage: 3.7 V
- Number of reads per charge: 500
- Battery life: 25 h
- Charging time: 8 h
Weight & dimensions
- Width: 91 mm
- Depth: 91 mm
- Height: 193.1 mm
Operational conditions
- Operating relative humidity (H-H): 0 - 95 %
- Operating temperature (T-T): 0 - 45 °C
- Drop resistance: 2.4 m
- Storage relative humidity (H-H): 0 - 60 %
- Storage temperature (T-T): -40 - 70 °C
Battery
- Rechargeable battery: Yes
- Number of battery cells: 1
- Battery weight: 12.5 g
- Battery capacity: 2.59 Wh
Technical details
- Compliance certificates: RoHS,UKCA,CE,Federal Communications Commission (FCC)
- Warranty period: 1 year(s)
Other features
- Mobile operating systems supported: Android,iOS
- Windows operating systems supported: Yes
