The XS630 stands out with its specialized 1D laser scanning engine, delivering superior performance in environments where 1D barcodes are often damaged, worn, or difficult to read.

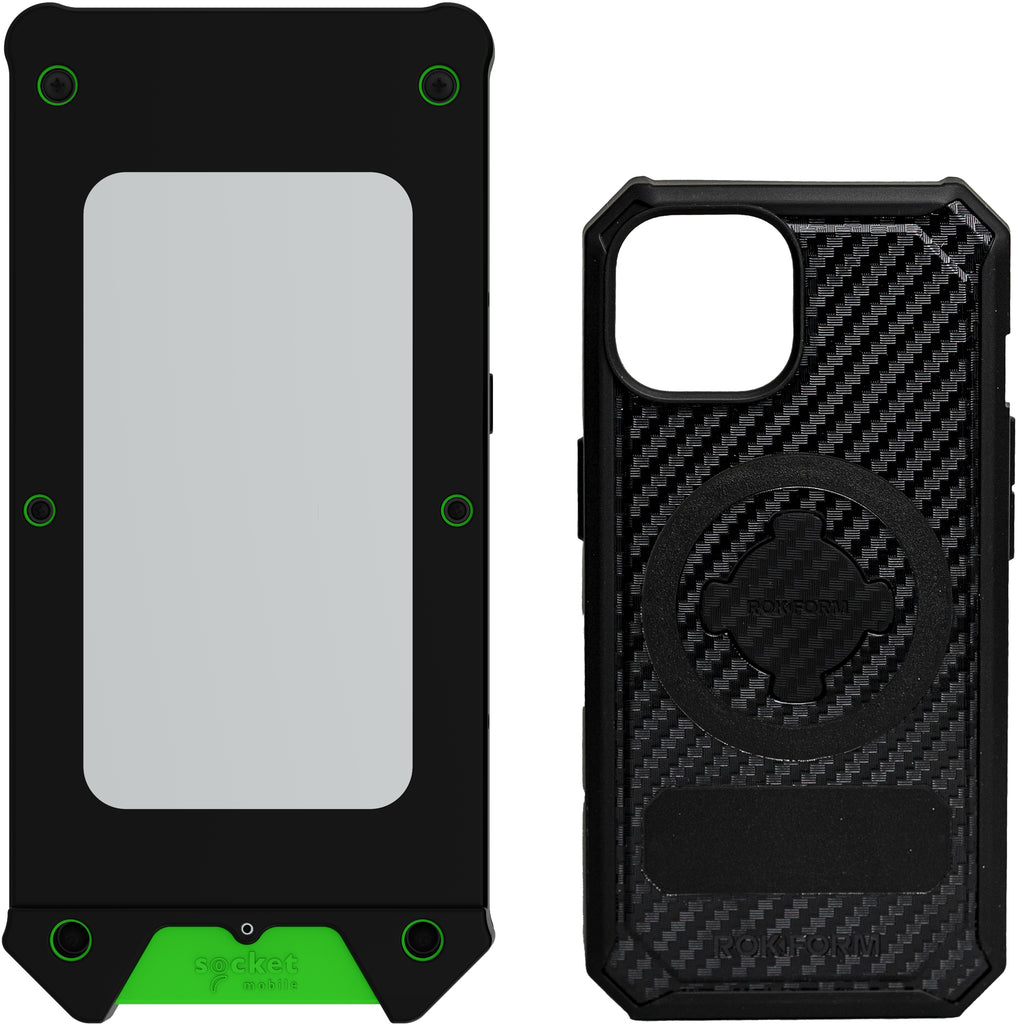

Based on the Socket Mobile XtremeScan Mag platform, the XS630 is designed for BYOD (Bring Your Own Device) operations and seamless integration with any mobile device. It offers an optimal solution to enhance efficiency and convenience in mobile workforces. Featuring a secure magnetic attachment system, workers can easily attach and detach their personal mobile devices throughout the day. This flexibility empowers users to switch between tasks such as navigation, photos, and communication while adding high-performance 1D barcode scanning when needed.
With its innovative BYOD design and rugged durability, the XS630 is ideal for modern delivery and inventory operations, ensuring tasks are completed efficiently without requiring multiple devices.
Featuring a streamlined case format, the XS630 offers a compact, easy-to-handle design for comfortable use over long shifts. Its fast, precise 1D laser scanning delivers effortless data capture, and the secure magnetic attachment system allows for quick access when scanning is required. With extended battery life, military-grade durability to withstand drops and harsh conditions, and intuitive LED indicators, the XS630 simplifies scanning tasks while maintaining performance in any work environment.
Equipped with Bluetooth connectivity and a strong metal plate attachment system, the XS630 ensures optimal compatibility with any mobile device and reliable integration with iOS and Android business applications.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- Sensor type: LED
- 2D (matrix & stacked) barcodes supported: Not supported
- Linear (1D) barcodes supported: Codabar,Code 128,Code 93,Code 39,EAN-8,EAN-13,JAN-13,JAN-8,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1 Databar Limited,Interleaved 2 of 5,ISBT 128,Trioptic,UPC-A,UPC-E
- Light levels (direct sunlight): 0 - 100000 lx
- Tilt reading angle: 10 - 47 °
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth version: 2.1+EDR
- Bluetooth: Yes
Performance
- Product colour: Black,Green
- Housing material: Plastic,Glass
- International Protection (IP) code: IP67
- Protection features: Drop resistant
- LED indicators: Yes
- Print contrast: 25 %
- Country of origin: China
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Charging port type: USB Type-C
- Battery capacity: 700 mAh
- Battery voltage: 3.7 V
- Number of reads per charge: 500
- Battery life: 25 h
- Charging time: 8 h
Weight & dimensions
- Width: 91 mm
- Depth: 91 mm
- Height: 193.1 mm
Operational conditions
- Operating relative humidity (H-H): 0 - 95 %
- Operating temperature (T-T): 0 - 45 °C
- Drop resistance: 2.4 m
- Storage relative humidity (H-H): 0 - 60 %
- Storage temperature (T-T): -40 - 70 °C
Battery
- Rechargeable battery: Yes
- Battery weight: 12.5 g
- Number of battery cells: 1
- Battery capacity: 2.59 Wh
Technical details
- Compliance certificates: RoHS,UKCA,Federal Communications Commission (FCC),CE
- Warranty period: 1 year(s)
