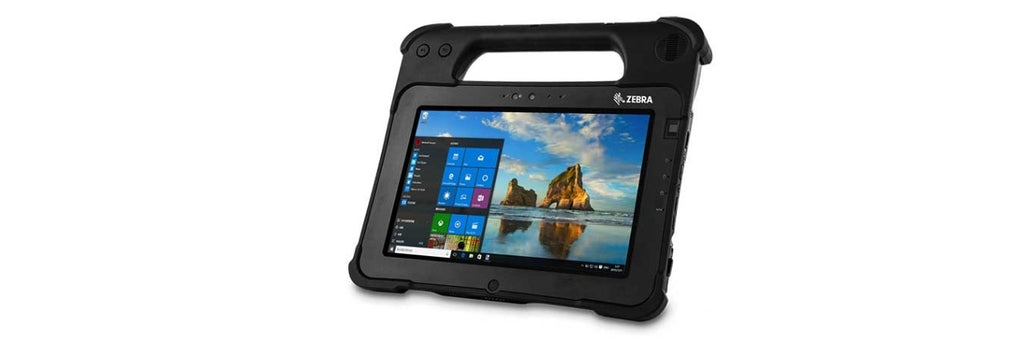

A VERSATILE RUGGED TABLET PLATFORM RUGGED TO THE CORE.
The Zebra L10 rugged platform, formerly manufactured by Xplore Technologies, offers a variety of tablet configurations and a shared accessory ecosystem that sets a new standard in office, vehicle and field-based computing.
Whether your mobile workers prefer a slate tablet (XSLATE L10), a tablet with a rigid-handle and built-in barcode reader option (XPAD L10), or a 2-in-1 laptop/tablet with a full-featured keyboard (XBOOK L10), the functional flexibility of the Zebra L10 ensures that your workers have the right computing tool for their job. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.
GET THROUGH TASKS FASTER
With more CPU options than ever, you’re guaranteed that the performance-driven L10 rugged tablet platform will be the right fit for your organization and budget, whatever your operating system. For Windows, choose between three different 8th Generation Intel Core-Series processors or an Intel Pentium-series processor. Add a PCIe solid state drive (SSD) for an extra speed boost. For Android, the Qualcomm Snapdragon 660 gives you power and performance to spare. The L10 is available with a range of RAM and storage options for every business and agency application.
EXPAND YOUR USAGE CAPABILITIES
The L10 combines latest-generation NFC, Bluetooth, 802.11ac Wi-Fi, GPS and 4G LTE mobile broadband technologies to provide uninterrupted connectivity. And each L10 rugged tablet can be equipped with workflow specific tools needed for nearly any application. This includes an optional true serial or HDMI-in port, UHF RFID reader (AEI), and built-in bar code reader (XPad only). RJ-45 jacks and multiple USB ports are standard on all models. Front facing and 13 MP rear facing cameras capture images and video, while built-in microphones support VoIP collaboration.
USE IT VIRTUALLY ANYWHERE
The L10 platform defines a new standard of rugged tablets. It is rated for a 6 ft. drop and is subjected to a raft of MIL-STD-810G tests. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With daylight or sunlight viewable reinforced glass displays and an active digitizer option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas means it's ideal for mounting in vehicles of all types.
Display
- Display diagonal: 10.1 "
- Display resolution: 1920 x 1200 pixels
- Display brightness: 1000 cd/m²
- Display glass type: Gorilla Glass
- HD type: WUXGA
- Touchscreen type: Capacitive
- Native aspect ratio: 16
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Processor generation: 8th gen Intel® Core™ i5
- Processor model: i5-8250U
- Processor cores: 4
- Processor threads: 8
- Processor boost frequency: 3.4 GHz
- Processor frequency: 1.6 GHz
- Processor cache: 6 MB
- Processor cache type: Smart Cache
- Processor operating modes: 64-bit
- Conflict-Free processor: Yes
- PCI Express configurations: 1x2+2x1,1x4,2x2,4x1
- Processor lithography: 14 nm
- Processor package size: 42 X 24 mm
- Stepping: Y0
- Processor codename: Kaby Lake R
- Supported instruction sets: AVX 2.0,SSE4.1,SSE4.2
- Processor code: SR3LA
- System bus rate: 4 GT/s
- Bus type: OPI
- Thermal Monitoring Technologies: Yes
- Thermal Design Power (TDP): 15 W
- Configurable TDP-down frequency: 0.8 GHz
- Tjunction: 100 °C
Memory
- Internal memory: 8 GB
- Internal memory type: LPDDR3-SDRAM
Storage
- Internal storage capacity: 128 GB
- Card reader integrated: Yes
- Compatible memory cards: MicroSDXC
- Storage media: SSD
Graphics
- Graphics card family: Intel
- Graphics card: UHD Graphics 620
Audio
- Number of built-in speakers: 1
- Number of microphones: 2
- Audio system: High Definition (HD)
Camera
- Rear camera type: Single camera
- Rear camera resolution (numeric): 13 MP
- Front camera: Yes
- Front camera resolution (numeric): 2 MP
Network
- Mobile network connection: Yes
- Mobile network generation: 4G
- 4G standard: LTE
- Bluetooth: Yes
- Bluetooth version: 4.2
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
- Ethernet LAN: Yes
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Combo headphone/mic port: Yes
Design
- Form factor: Slate
- Product colour: Black
- Device type: Tablet PC
- International Protection (IP) code: IP65
Performance
- Position location: Yes
- BeiDou: Yes
- GLONASS: Yes
- Assisted GPS (A-GPS): Yes
- Trusted Platform Module (TPM): Yes
Security
- Fingerprint reader: Yes
Software
- Platform: Windows
- Operating system installed: Windows 10 Pro
- Operating system architecture: 64-bit
Processor special features
- Intel® InTru™ 3D Technology: Yes
- Intel Secure Key Technology version: 1.00
- Intel® Secure Key: Yes
- Intel Smart Response Technology version: 1.00
- Intel Clear Video Technology: Yes
- Intel Identity Protection Technology version: 1.00
- Intel® OS Guard: Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® My WiFi Technology (Intel® MWT): Yes
- Intel Flex Memory Access: Yes
- Intel® Identity Protection Technology (Intel® IPT): Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel TSX-NI version: 0.00
- Intel Stable Image Platform Program (SIPP): No
- Intel Enhanced Halt State: Yes
- Intel Trusted Execution Technology: No
- Enhanced Intel SpeedStep Technology: Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Embedded options available: No
- Intel 64: Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel TSX-NI: No
- Intel® Quick Sync Video Technology: Yes
- Intel Stable Image Platform Program (SIPP) version: 0.00
- Intel® Smart Response Technology: Yes
- Intel Software Guard Extensions (Intel SGX): Yes
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery life (max): 10 h
Weight & dimensions
- Width: 280.8 mm
- Depth: 22 mm
- Height: 255.9 mm
- Weight: 1400 g
Certificates
- Compliance certificates: RoHS
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 3 - 95 %
- Operating altitude: 0 - 15240 m
Other features
- Processor socket: BGA 1356
- Processor ARK ID: 124967
