Rugged and Powerful

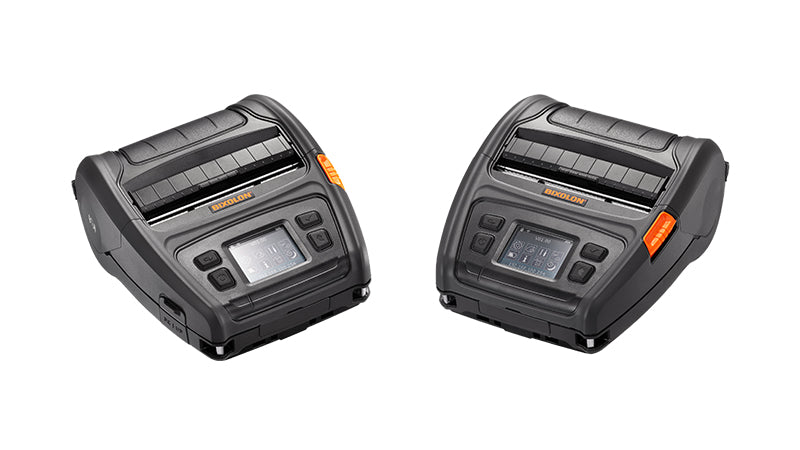

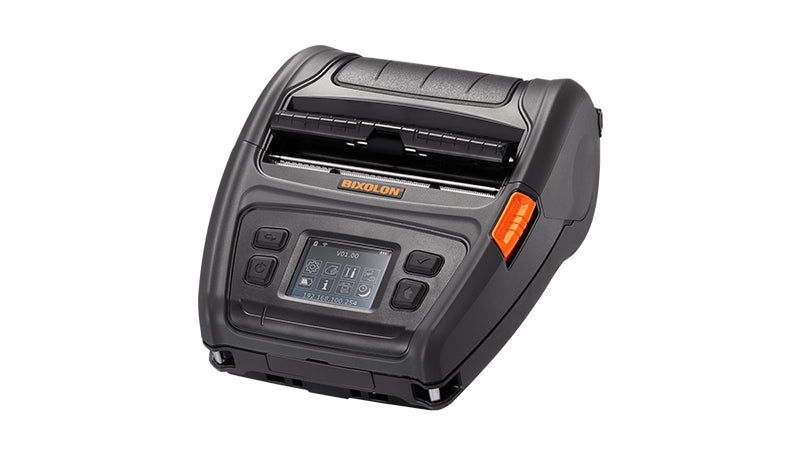

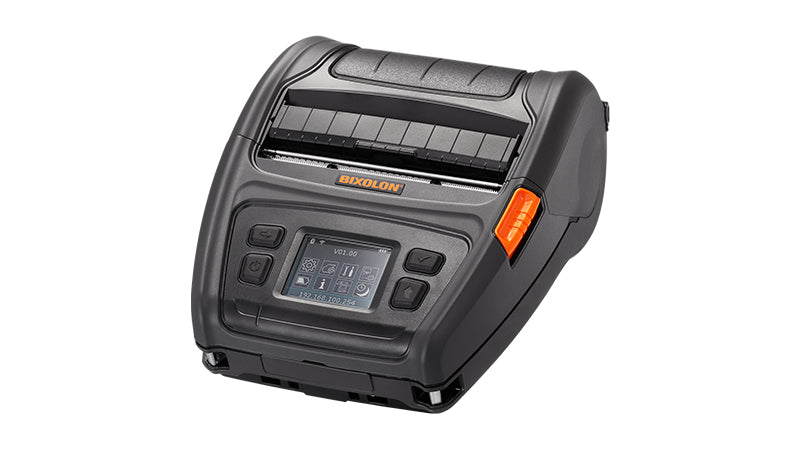

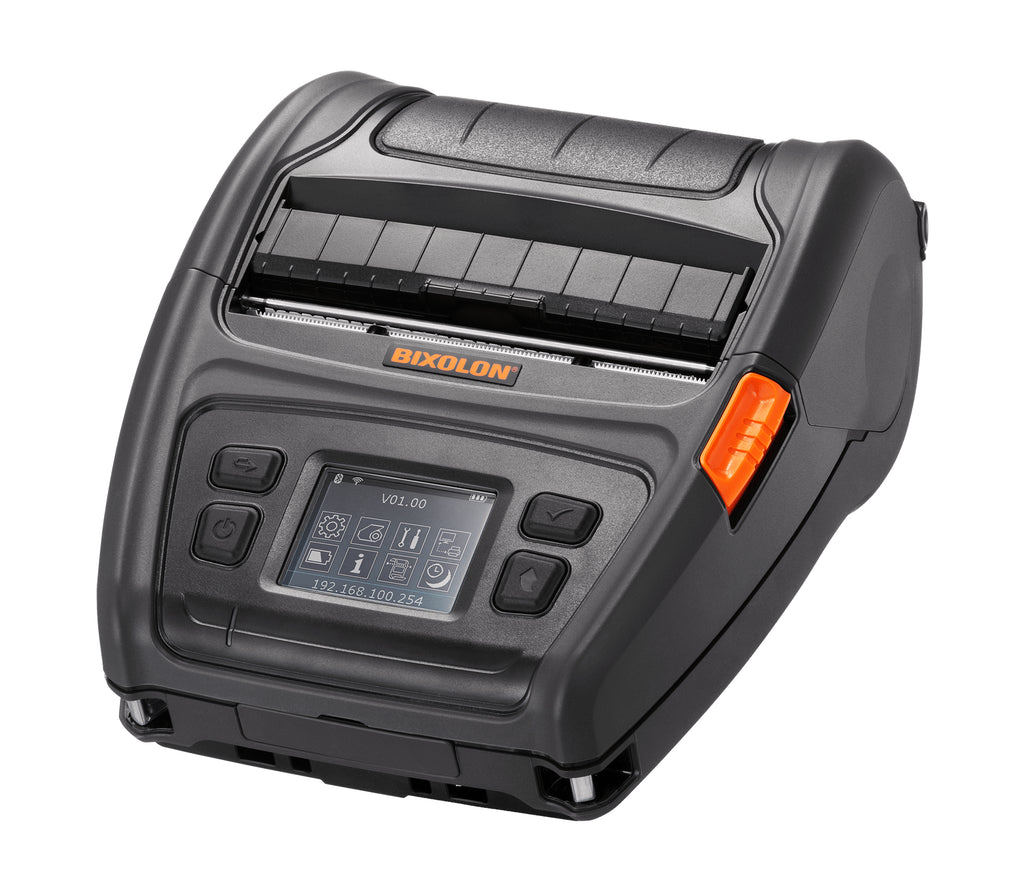

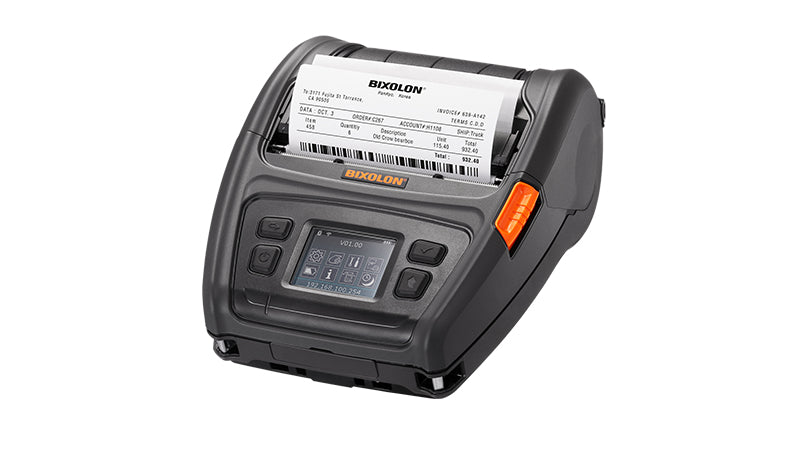

The XM7-40 is a rugged and industrial 4-inch (112mm) premium level Auto-ID Mobile Liner and Linerless Label printer bursting with value added design features and software add-ons. Providing premium-level performance at speeds of up to 5ips at 203dpi producing high quality printing output. The XM7-40 features a rugged, compact design, embedded Peeler, TFT Colour Display, drop protection of 2.1 metres and an IP54-rating. With a smart battery with universal USB Type-C Power delivery charging, this mobile label printer provides a wealth of battery health information through BIXOLON’s web-based printer profile management software XPM™, guaranteeing consistent performance throughout prolonged operations.
Providing seamless connectivity, the XM7-40 presents USB 2-0 and Serial interfaces as standard, with optional Bluetooth V5.0 Classic (MFi Certification) and WLAN 802.11a/b/g/n wireless technology which can be connected simultaneously. Supporting easy Bluetooth pairing via NFC allowing compatibility with major operations including Android™, iOS™ and Windows™. The printer also boasts unity with market leading command languages such as SLCS, BPL-Z™, BPL-C™ and BXL/POS to allow for seamless integration with customers’ existing systems.
Boasting a 128 MB SRAM, 256 MB Flash memory as standard and optional 256 MB SDRAM, 512 MB Flash memory enabling the storage of fonts and graphics, alongside firmware upgrades and tools. The XM7-40 prints directly from SAP® Smart Forms and is compatible with a range of label editing applications including BIXOLON’s Label Artist™, Label Artist Mobile™ for iOS™ & Android™, alongside the industry leading Bartender® software.
Printing
- Print technology: Direct thermal
- Type: Mobile printer
- Maximum resolution: 203 x 203 DPI
- Number of printable dots: 8 dot
- Print speed: 127 mm/sec
- Print speed: 5 ips
- Character sets: 16 BPL-Z,SLCS
Paper handling
- Maximum roll diameter: 66 mm
- Media thickness: 0.07 ± 0.15 mm
- Supported paper width: 50 - 112 mm
- Maximum printing width: 104 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- USB port: Yes
- USB connector: USB Type-C
- Serial interface: Yes
- Serial interface type: RS-232
- Bluetooth: Yes
- Bluetooth version: 5.0
Network
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
- Security algorithms: 40-bit WEP,WPA2,104-bit WEP,WPA
Features
- Page description languages: CPCL-native,ZPL II
- Internal memory: 128 MB
- Storage media: Flash
- Flash memory: 256 MB
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Colour display: No
- Display resolution: 240 x 320 pixels
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 6800 mAh
- Battery voltage: 7.2 V
Operational conditions
- Operating relative humidity (H-H): 10 - 80 %
- Storage temperature (T-T): -30 - 70 °C
- Operating temperature (T-T): -15 - 50 °C
System requirements
- Windows operating systems supported: Yes
- Mac compatibility: Yes
- Mobile operating systems supported: Android,iOS
- Linux operating systems supported: Yes
Weight & dimensions
- Width: 158 mm
- Depth: 186 mm
- Height: 82 mm
- Weight: 1090 g
Packaging content
- Drivers included: Yes
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- International Protection (IP) code: IP54
