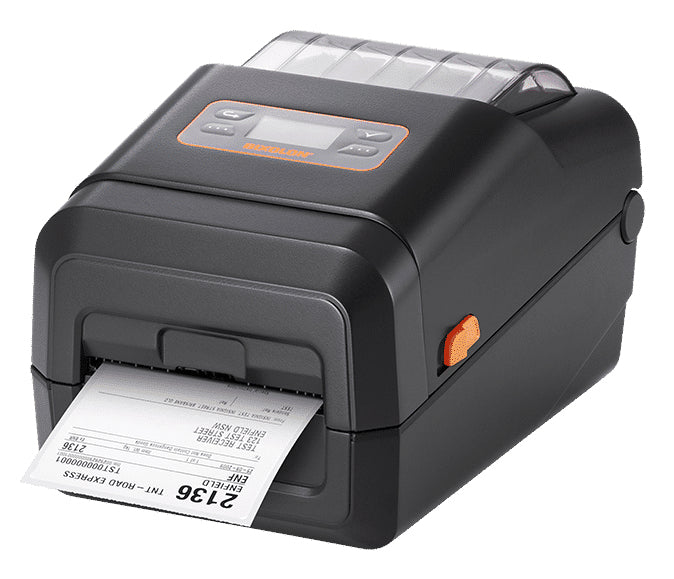

The XL5-40 is a 4-inch (114mm) Desktop Direct Thermal Linerless Label printer featuring an ergonomic clamshell design with economical linerless labelling features to allow the printing and cutting of various paper lengths for a range of applications within the Manufacturing, Retail, Hospitality and Healthcare industries. Available as the XL5-40 (203dpi) and XL5-43 (300dpi) resolution options, the XL5-40’s standard model (XL5-40) offers strong data processing and print speeds up to 6 ips (152mm/sec), with of 64MB SDRAM-DDR2, 128 MB Flash.

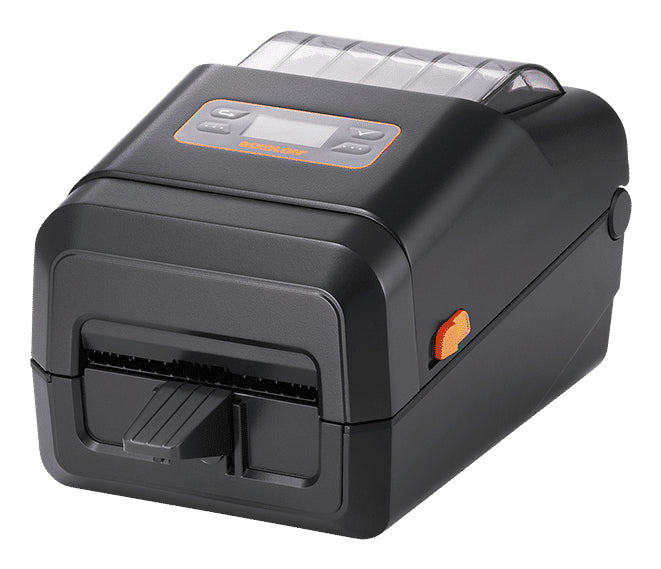

Accompanied with a full-width Auto Cutter and Media Support and Taken Sensor (label present sensor). Complimented by enhanced reliability through a Specialized Paper Path, Guillotine Cutting System and Anti-Curl support and optional LED or LCD displays. The XL5-40 is backed by a 2-year standard warranty.

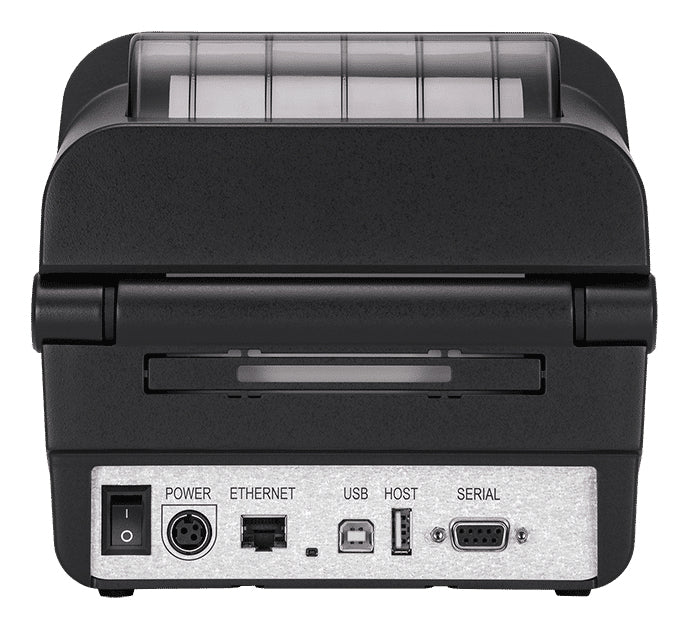

Supporting multiple connectivity options, the XL5-40 comes with Dual USB 2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XL5-40 is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ and XCM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Printing
- Print technology: Direct thermal
- Maximum resolution: 203 x 203 DPI
- Print speed: 152 mm/sec
- Maximum printing width: 108 mm
Paper handling
- Media thickness: 0.09 - 0.20 mm
- Maximum roll diameter: 127 mm
Ports & interfaces
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
- Bluetooth: Yes
- USB port: Yes
Performance
- Page description languages: BPL,EPL,SLCS,ZPL II
- Internal memory: 64 MB
- Flash memory: 128 MB
- Built-in barcodes: 1D,Codablock,Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,GS1 Databar (RSS-14),Industrial 2/5,Interleaved 2/5,LOGMARS,MSI,MaxiCode,MicroPDF417,PDF417,POSTNET,Plessey,Standard 2/5,TLC39,UPC-A,UPC-E
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Display resolution: 200 x 100 pixels
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
Operational conditions
- Operating relative humidity (H-H): 10 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 186 mm
- Depth: 287.7 mm
- Height: 173 mm
- Weight: 2800 g
Technical details
- Sustainability certificates: ENERGY STAR
