Robust and highly featured

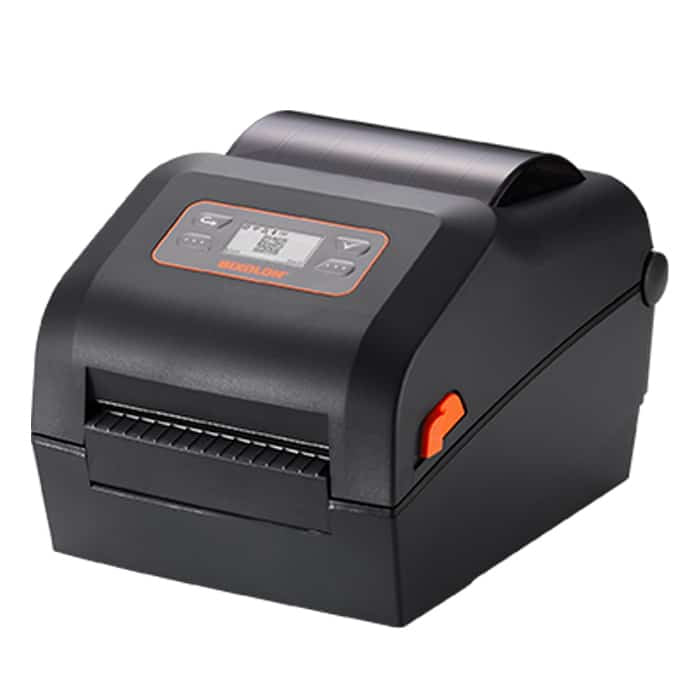

The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

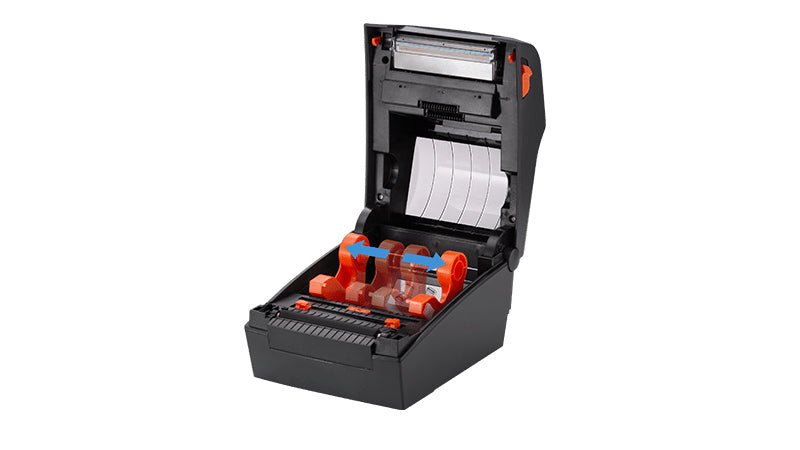

Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Printing
- Print technology: Direct thermal
- Maximum resolution: 203 x 203 DPI
- Number of printable dots: 8 dot
- Print speed: 178 mm/sec
- Maximum printing width: 108 mm
- Maximum print length: 1 m
Paper handling
- Autocutter: Yes
- Ribbon width: 110 mm
- Ribbon length: 300 m
- Maximum label width: 118 mm
- Media thickness: 0.06 - 0.2 mm
- Maximum roll diameter: 127 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- USB port: Yes
- RS-232 ports: 1
Performance
- Internal memory: 64 MB
- Flash memory: 128 MB
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Display resolution: 200 x 100 pixels
- Colour display: No
- Control type: Buttons
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
System requirements
- Linux operating systems supported: Yes
- Windows operating systems supported: Yes
- Mobile operating systems supported: Android,iOS
- Mac operating systems supported: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 194 mm
- Depth: 248 mm
- Height: 169 mm
- Weight: 1890 g
Packaging content
- Cables included: USB
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Character sets: 5 BPL-E,16 BPL-Z,SLCS,Unicode
