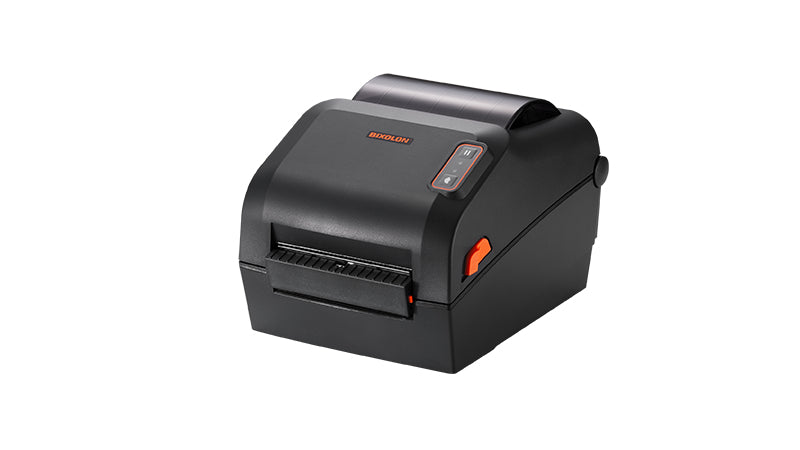

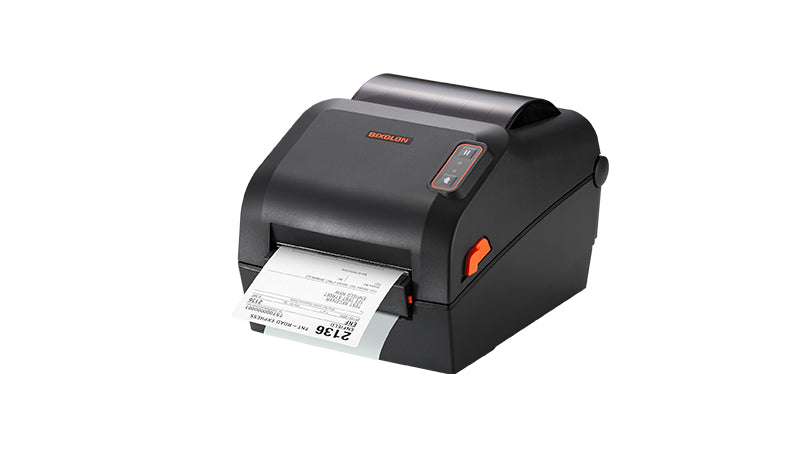

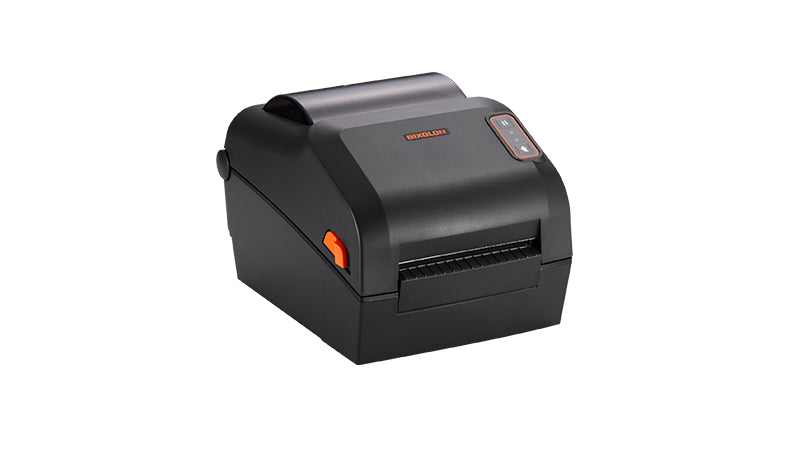

4-inch Direct Thermal Desktop Label Printer
The compact, 4-inch Direct Thermal XD5-40d provides a performance feature set supporting multiple media types and range of wired and wireless interfaces. Fast processing and print speeds up to 7ips, the printer has optional high resolution and LCD display choices. 300dpi for finer output and LCD display for easier setup and use, or to receive instructional and alert information that provides links to model specific support pages.
Reliable and Solid Performance
- Supporting Direct Thermal(XD5-40d) and Thermal Transfer(XD5-40t) label printing
- Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
- Optional 300 dpi high-resolution choice for fine print quality
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.0 (MFi certified)
- Extended memory space up to 256MB SDRAM, 512MB Flash
Next Level Usability
- Supports UHF RFID print and encode capability plus minimum encoding inlay pitch of 0.6 inch (16 mm) inlay
- An adjustable media guide and a holder
- Compact clamshell design with intuitive menu buttons and optional LCD Display
- Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
- Field-installable Peeler and Auto Cutter
Secure and Efficient Management
- Twin funtion™ supported: Copy printer setting and data by USB
- Compatible with label design software;
- BIXOLON’s Label Artist™ and Seagull's BarTender®
- XPM™ & XCM™ - Web-based printer management software and connection app
- A suite of SDKs for major operating systems
- Building standalone label printing solution using XI, BIXOLON's BASIC programming Interpreter
Printing
- Print technology: Direct thermal
- Maximum resolution: 203 x 203 DPI
- Print speed: 178 mm/sec
Paper handling
- Autocutter: Yes
- Ribbon width: 110 mm
- Ribbon length: 300 m
- Core diameters supported: 12.7 mm (0.5"),25.4 mm (1"),38.1 mm (1.5")
- Maximum roll diameter: 127 mm
- Media thickness: 0.06 - 0.2 mm
- Maximum label width: 118 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: No
- Wi-Fi: No
- USB port: Yes
- USB 2.0 ports quantity: 2
Performance
- Internal memory: 64 MB
- Flash memory: 128 MB
- Built-in barcodes: 1D,2D,AZTECCODE,CODABAR (NW-7),Codablock,Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,GS1 Databar (RSS-14),IMB,Industrial 2/5,Interleaved 2/5,LOGMARS,MSI,MaxiCode,MicroPDF417,PDF417,POSTNET,Plessey,QR Code,Standard 2/5,TLC39,UPC
Design
- Product colour: Black
- Built-in display: No
- Control type: Buttons
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
System requirements
- Linux operating systems supported: Yes
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Mobile operating systems supported: Android,iOS
Operational conditions
- Operating relative humidity (H-H): 10 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 194 mm
- Depth: 248 mm
- Height: 169 mm
- Weight: 1890 g
Packaging content
- Cables included: USB
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Emulations: SLCS, BPL-Z (ZPLII), BPL-E (EPL)
- Character sets: 5 BPL-E,16 BPL-Z,SLCS,Unicode
