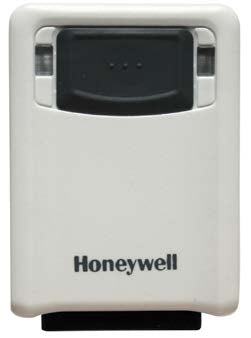

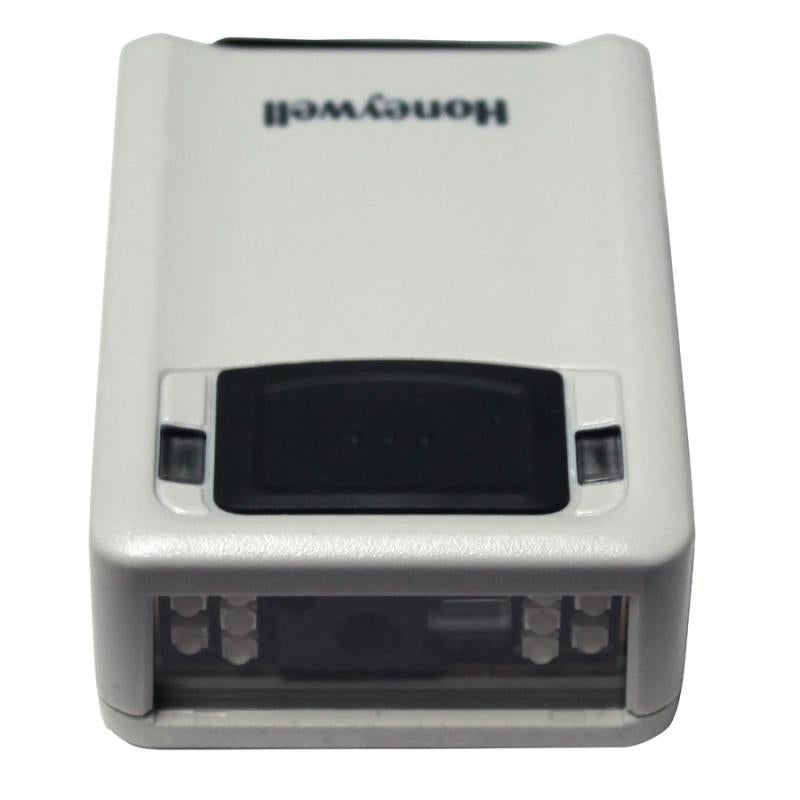

The Honeywell Vuquest3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments.
Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.
Scanning
- Type: Fixed bar code reader
- Scanner type: 1D/2D
- Linear (1D) barcodes supported: PDF417
- Sensor type: Photo diode
- Light levels (direct sunlight): 0 - 100000 lx
- Pitch reading angle: -45 - 45 °
- Yaw reading angle: -65 - 65 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: Keyboard wedge,RS-232,USB
Performance
- Product colour: Ivory
- International Protection (IP) code: IP53
- LED indicators: Yes
Power
- Power source type: DC
- Power consumption (typical): 2.3 W
- Power consumption (standby): 0.45 W
- Input voltage: 5 V
- Power consumption: 450 mA
Weight & dimensions
- Width: 51 mm
- Depth: 73 mm
- Height: 26 mm
- Weight: 77 g
Operational conditions
- Operating relative humidity (H-H): 5 - 95 %
- Storage temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): 0 - 40 °C
Logistics data
- Harmonized System (HS) code: 84716070
