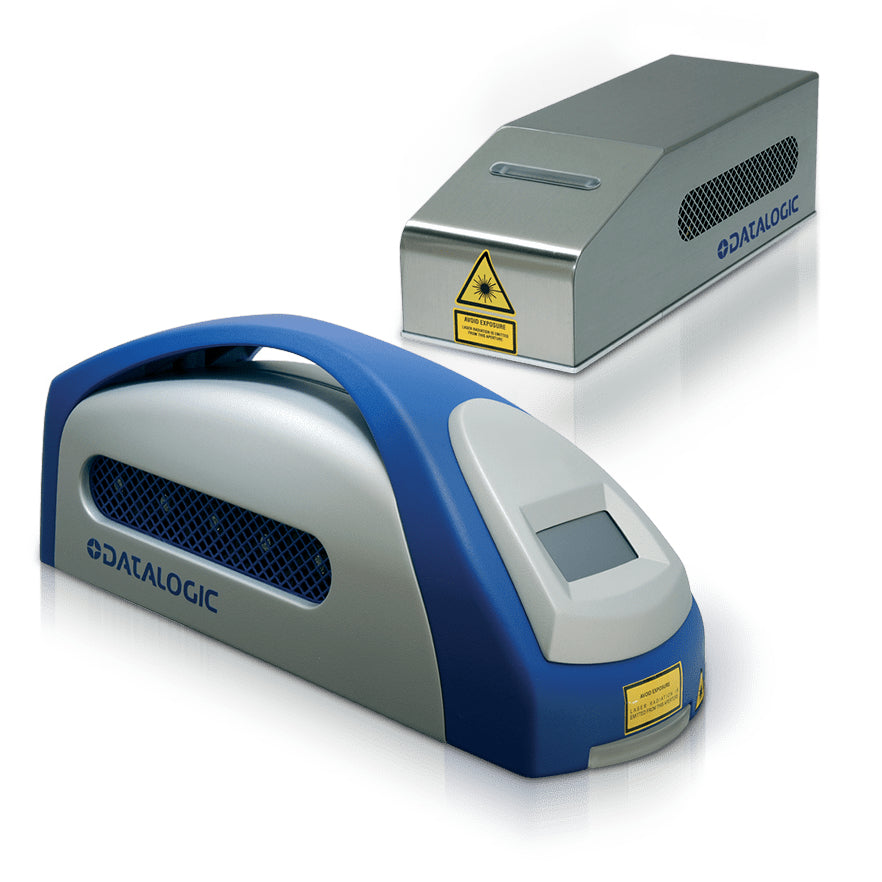

The Ulyxe product line provides ideal laser marking solutions for both stand-alone applications and industrial production lines. -
Integrated 6 W DPSS laser marking system, due to its costeffective, innovative design, Ulyxe becomes the first choice in marking solutions by providing the best price/performance for plastic and metal marking applications.
Performance
- Laser output power: 6 W
- Laser wavelength: 1064 nm
- Repetition rate range: 200000 Hz
- Pulse width: 25 ns
- Laser aiming type: Semiconductor
- Focus beam: 635 nm
- Scanning method: 4-axis (XYZA)
- Working distance: 178 mm
- Fixing distance: 186 mm
- Working area: 100 x 100 mm
- Laser class: 4
Ports & interfaces
- USB port: Yes
- RS-232 ports: 1
Power
- Power source type: DC
- DC input voltage: 24 V
- DC current (max): 13 A
- Power consumption (typical): 200 W
- Power consumption (max): 300 W
Design
- Product type: DPSS laser marker
- International Protection (IP) code: IP21
Weight & dimensions
- Width: 410 mm
- Depth: 145.6 mm
- Height: 123.5 mm
- Weight: 7800 g
Operational conditions
- Operating temperature (T-T): 15 - 35 °C
- Storage temperature (T-T): -5 - 55 °C
