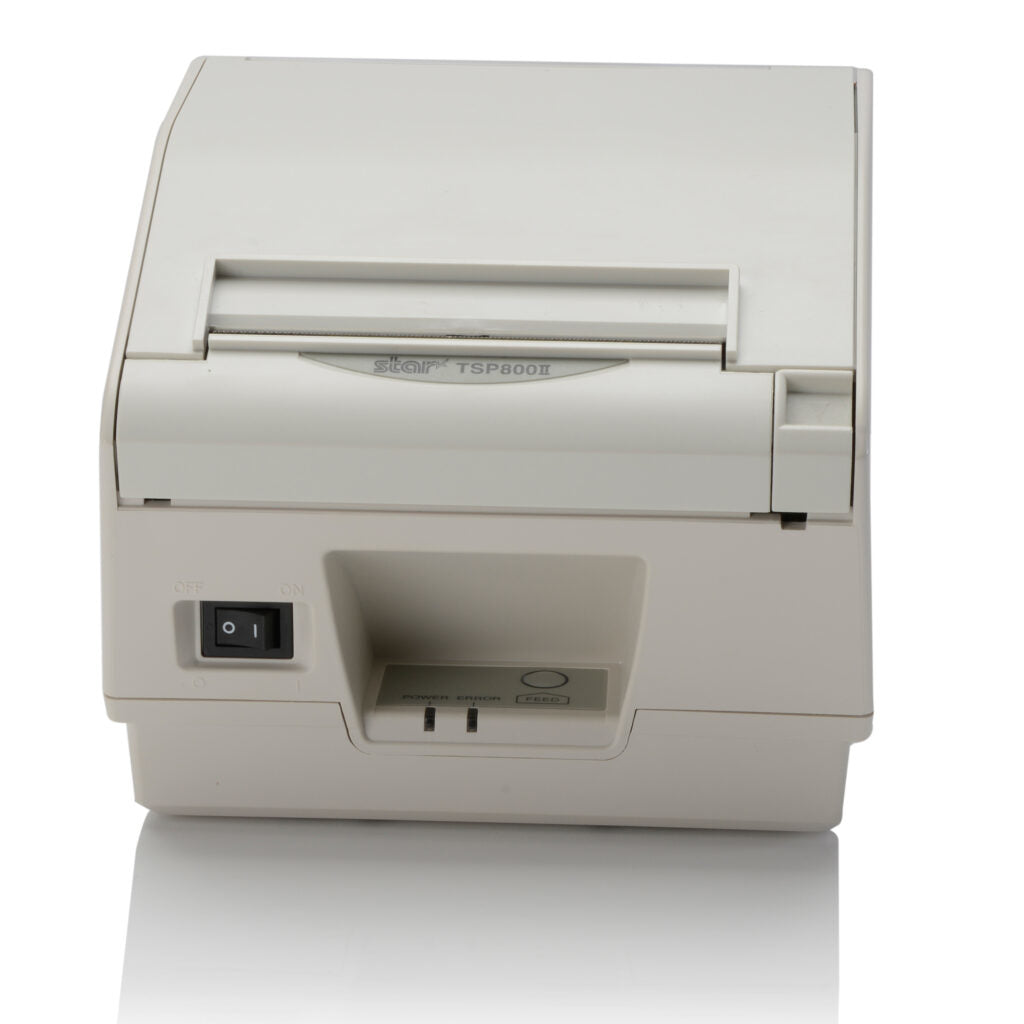

This revolutionary wide-format POS printer provides a solution to a number of applications where no POS printer was able to before. From compact web printing to mobile transportation printing as well as producing wide high-quality POS receipts with professional and crisp graphics, the TSP800II is the solution!
The TSP800II is the only printer on the market that provides printing on 3” to 4.4” wide paper at an amazing speed. It is the perfect printer for applications that need to print a large amount of information on a receipt. The TSP800II can also be purchased with a locking mechanism to secure any sensitive or costly roll of paper (See Model: TSP800Rx).
Printing
- Print technology: Direct thermal
- Colour: No
- Print speed: 180 mm/sec
- Print speed: 37 ppm
- Maximum print height: 8 mm
Paper handling
- Maximum label width: 104 mm
- Supported paper width: 58, 80, 82.5, 112 mm
- Maximum roll diameter: 100 mm
- Autocutter durability: 2 million cuts
- Media thickness: 0.065 - 0.15 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: No
- Wi-Fi: No
- USB port: No
- RS-232 ports: 1
Performance
- Internal memory: 8 MB
- Certification: UL, C-UL, TüV, CB, FCC, VCCI, EN55022, CE
Design
- Product colour: White
Power
- Power consumption: 1800 mA
System requirements
- Minimum RAM: 1 MB
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -4 - 140 °F
- Operating temperature (T-T): 5 - 45 °C
- Storage temperature (T-T): -20 - 6 °C
Weight & dimensions
- Width: 180 mm
- Depth: 213 mm
- Height: 148 mm
- Weight: 1.7 g
Logistics data
- Harmonized System (HS) code: 84433210
Other features
- Emulations: Star Mode, ESC/POS
- Maximum internal memory: 16 MB
