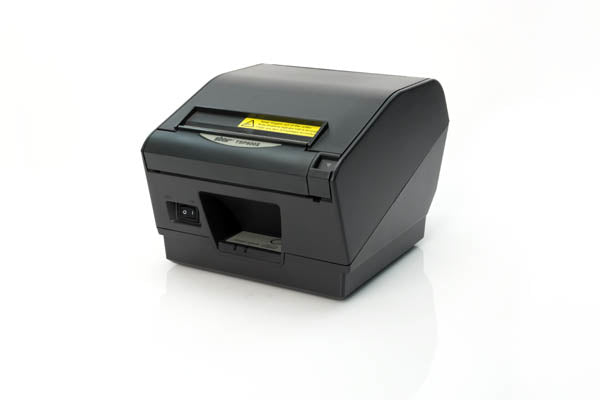

This revolutionary wide-format POS printer provides a solution to a number of applications where no POS printer was able to before. From compact web printing to mobile transportation printing as well as producing wide high-quality POS receipts with professional and crisp graphics, the TSP800II is the solution!
The TSP800II is the only printer on the market that provides printing on 3” to 4.4” wide paper at an amazing speed. It is the perfect printer for applications that need to print a large amount of information on a receipt. The TSP800II can also be purchased with a locking mechanism to secure any sensitive or costly roll of paper (See Model: TSP800Rx).
Printing
- Print technology: Direct thermal
- Print speed: 180 mm/sec
- Print speed: 7 ppm
Paper handling
- Supported paper width: 58, 80, 82.5, 112 mm
- Media thickness: 0.065 - 0.15 mm
- Maximum roll diameter: 112 mm
Ports & interfaces
- Connectivity technology: Wired
- Optional connectivity: Serial (RS-232)
Features
- Internal memory: 8 MB
- Autocutter durability: 2 million cuts
Design
- Product colour: Grey
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 5 - 45 °C
- Storage temperature (T-T): -20 - 6 °C
Weight & dimensions
- Width: 180 mm
- Depth: 213 mm
- Height: 148 mm
- Weight: 1900 g
Print quality
- Maximum print height: 8 mm
Logistics data
- Harmonized System (HS) code: 84433210
