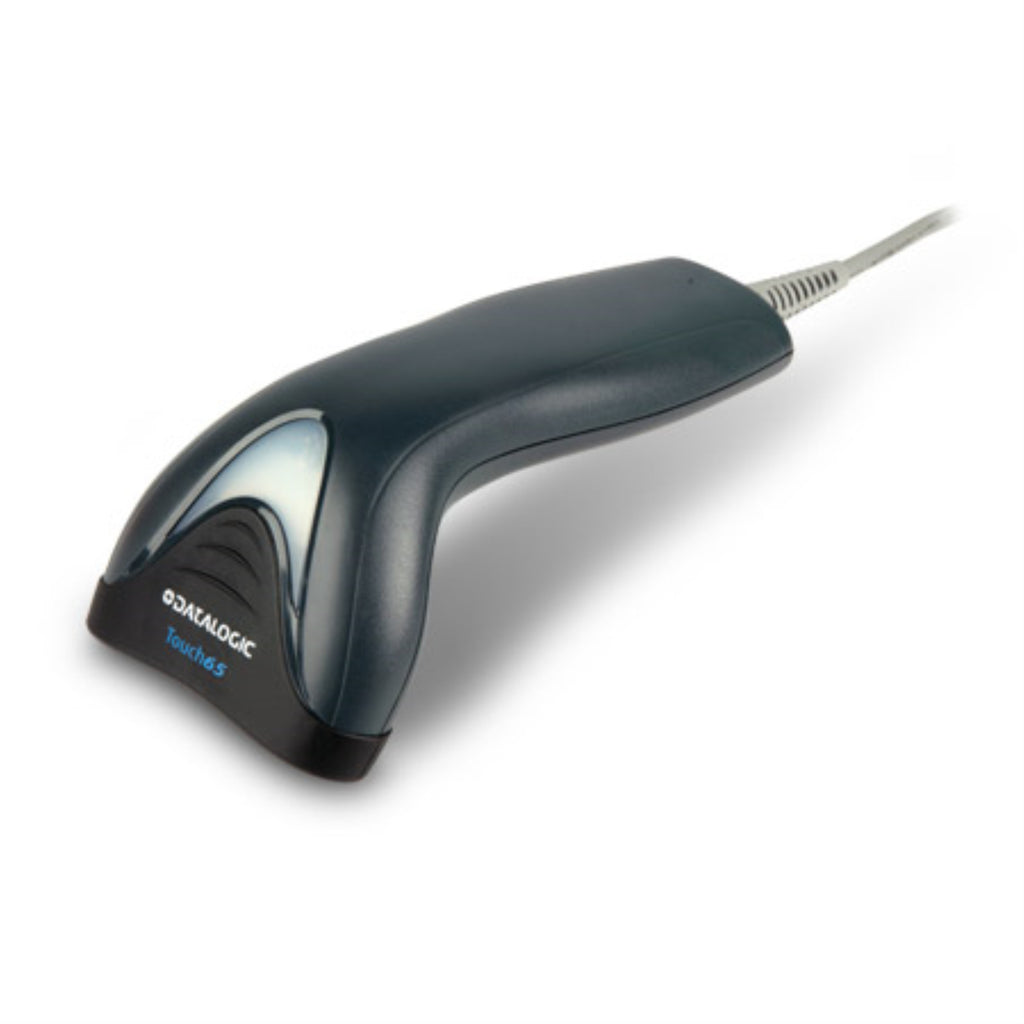

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- Linear (1D) barcodes supported: Code 39,EAN-13
- 2D (matrix & stacked) barcodes supported: Not supported
- Sensor type: Laser
- Working distance: 150 mm
- Light levels (direct sunlight): 0 - 20000 lx
- Wavelength: 640 nm
- Tilt reading angle: -45 - 45 °
- Pitch reading angle: -65 - 65 °
- Yaw reading angle: -70 - 70 °
- Tilt angle range: -45 - 45 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: USB
- Bluetooth: No
Performance
- Product colour: Black
- International Protection (IP) code: IP30
- Buzzer: Yes
- Built-in display: No
- Certification: RoHS
Power
- Input voltage: 5 V
- Power consumption: 100 mA
Weight & dimensions
- Width: 84 mm
- Depth: 160 mm
- Height: 58 mm
- Weight: 130 g
Packaging data
- Cables included: USB
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 5 - 95 %
- Storage temperature (T-T): -40 - 70 °C
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84716070
