Easy-to-use impact printer
Easy to use

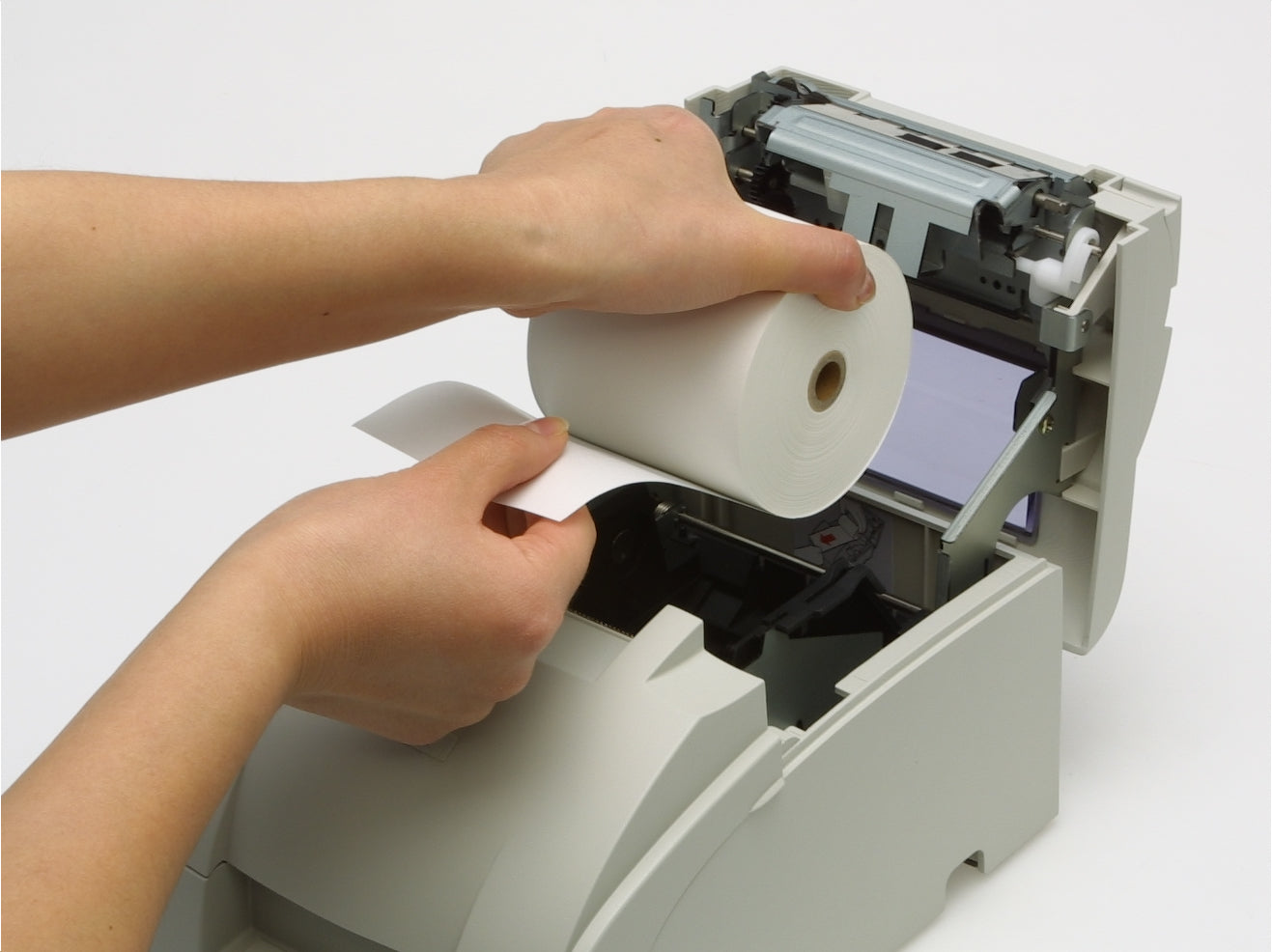

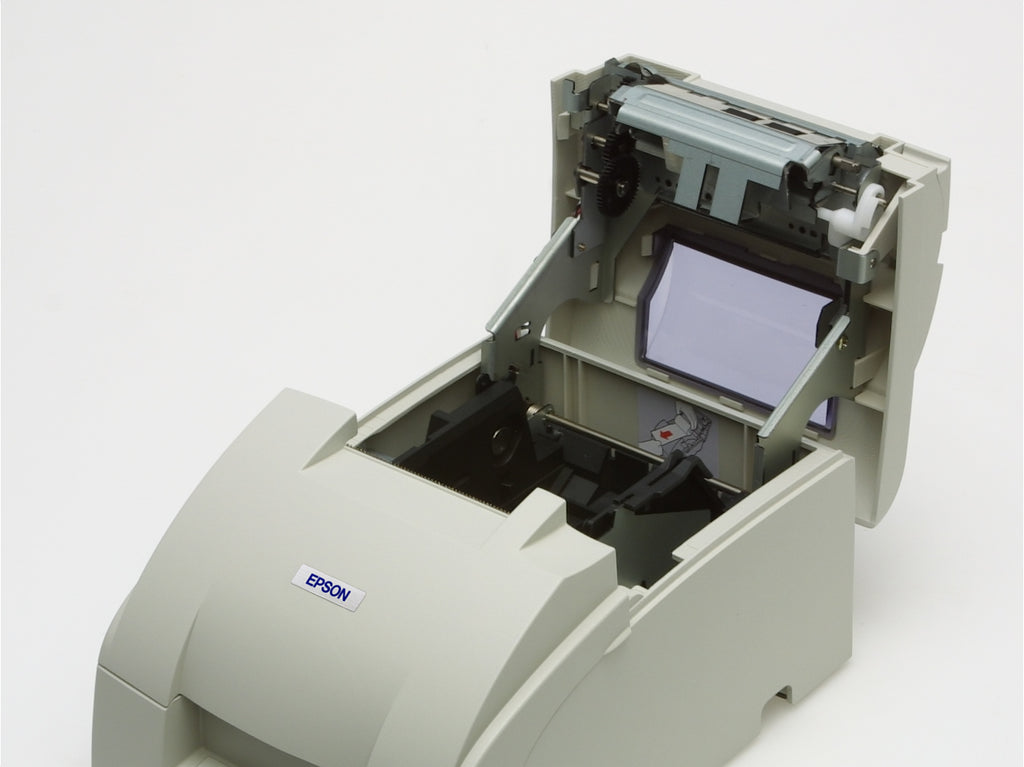

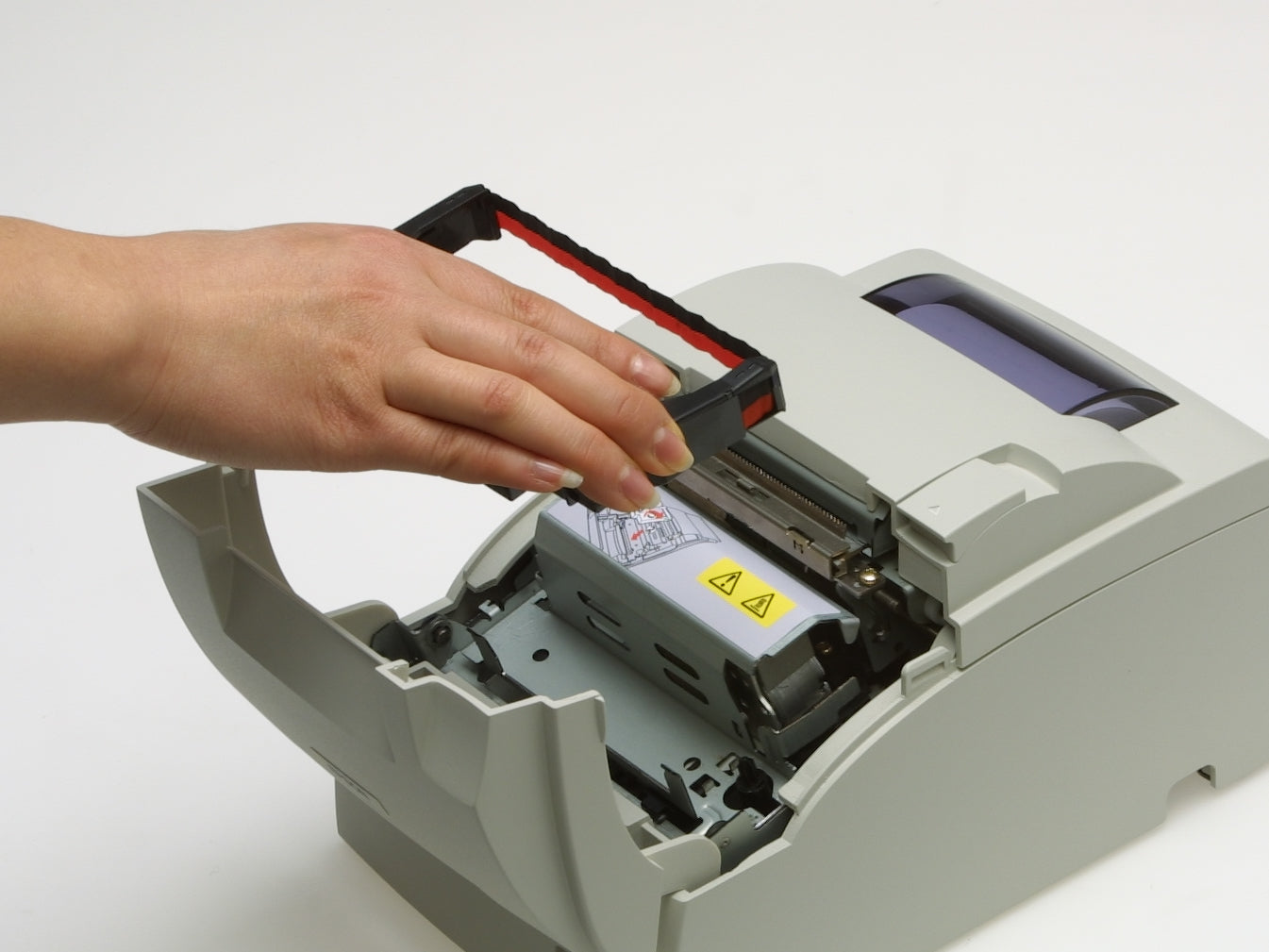

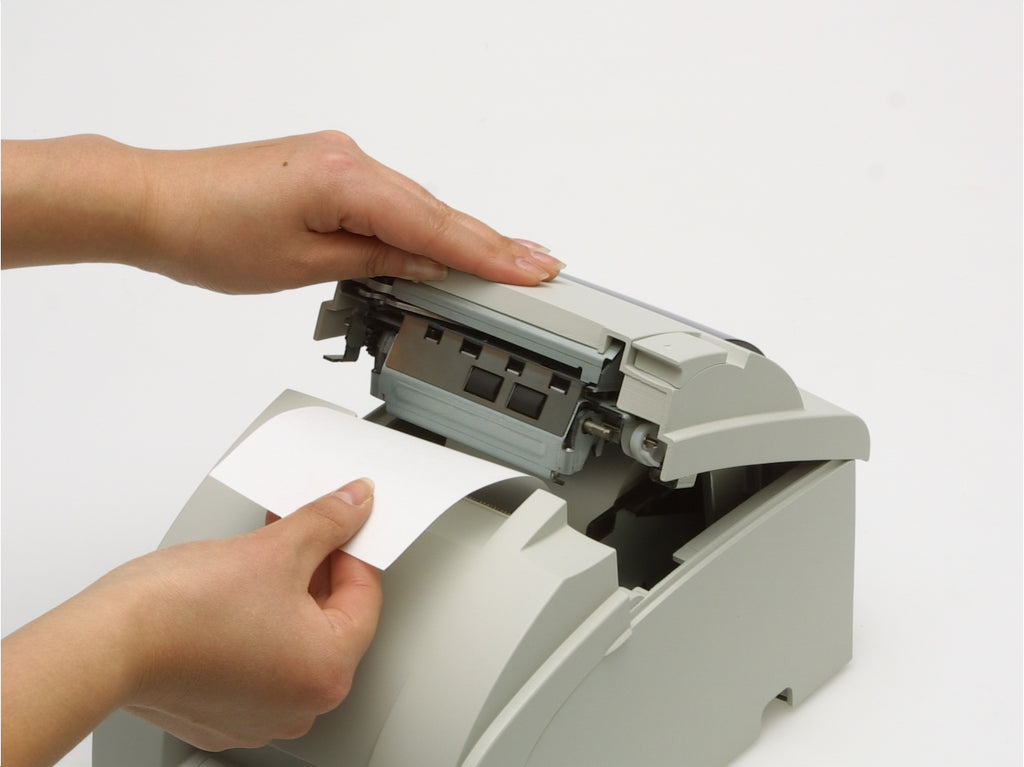

The TM-U220 is a robust, high performance impact receipt printer which is exceptionally easy to use. Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220 is very reliable and prints on plain paper in three widths.
Compact
Space-saving and versatile, it has a footprint of just 160(W) x 248 (D) x 133 (H) mm, and can also be wall-mounted.
Printing
- Print technology: Dot matrix
- Colour: Yes
- Character density: 16 cpi
Paper handling
- Supported paper width: 76 mm
- Maximum roll diameter: 83 mm
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: Ethernet
Network
- Ethernet LAN: Yes
Features
- Sound pressure level (printing): 64 dB
- Cutter: Yes
- Country of origin: China
Design
- Product colour: Black
Power
- AC input voltage: 24 V
- Power supply type: AC
Operational conditions
- Storage temperature (T-T): -10 - 50 °C
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 10 - 90 %
Weight & dimensions
- Width: 160 mm
- Depth: 248 mm
- Height: 139 mm
- Weight: 2500 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 300 mm
- Package depth: 330 mm
- Package height: 220 mm
- Package weight: 3820 g
Logistics data
- Harmonized System (HS) code: 84433210
