High-speed receipt printer
Market-leading1, high-performance and eco-conscious receipt printers, backed by proven reliability

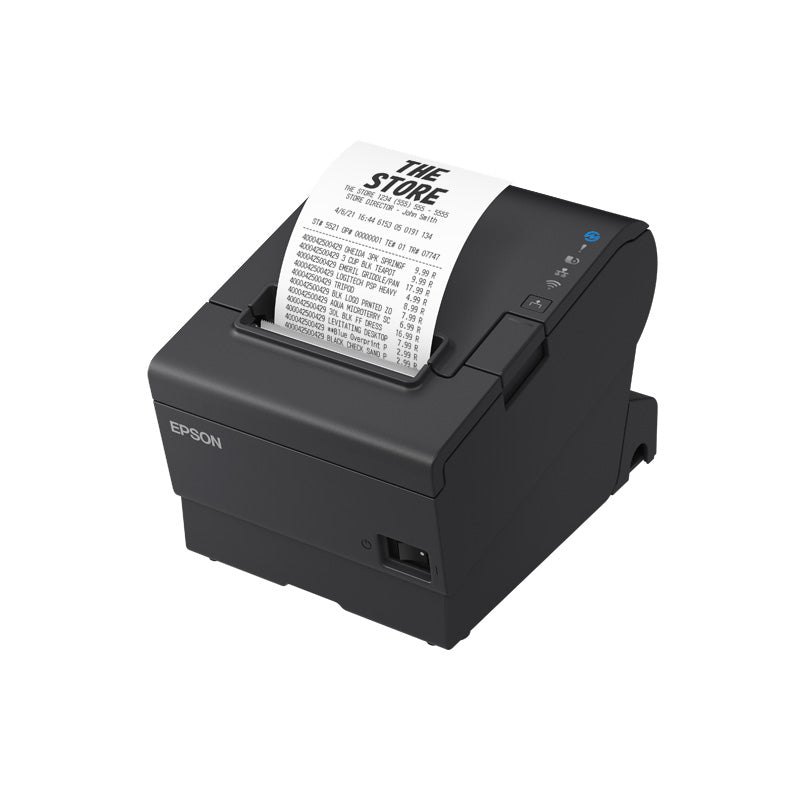

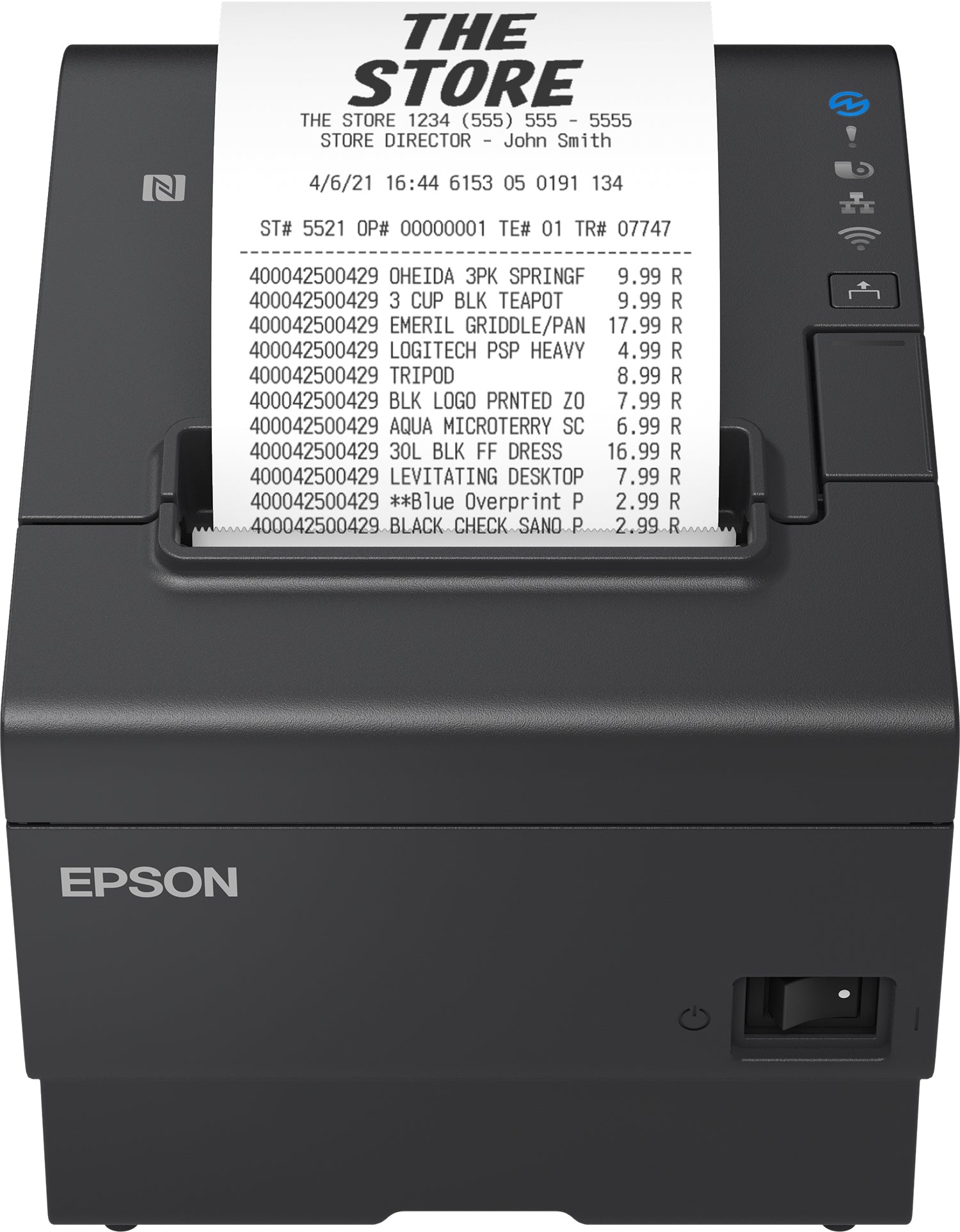

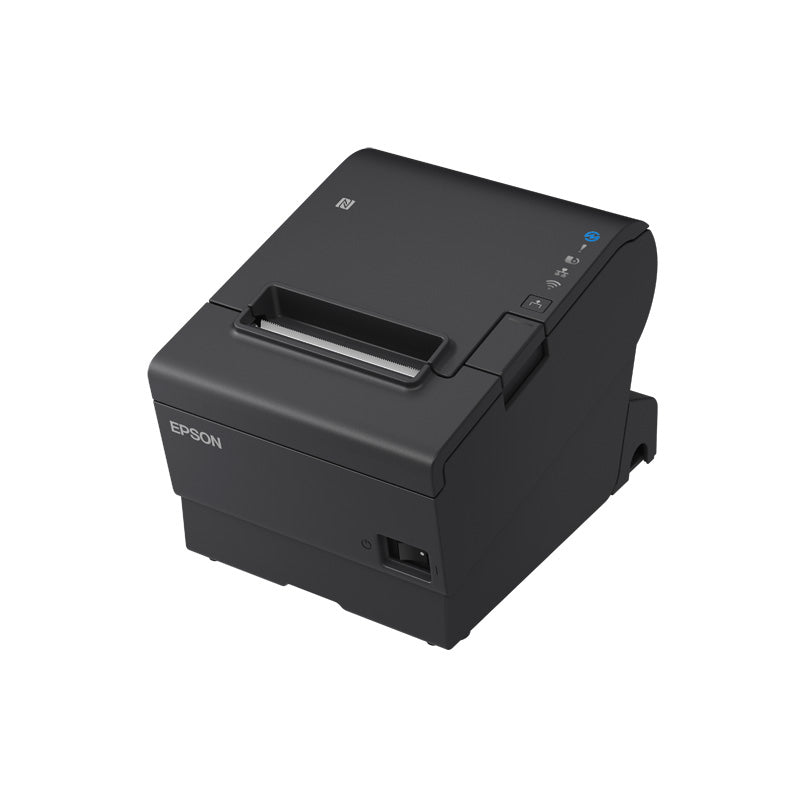

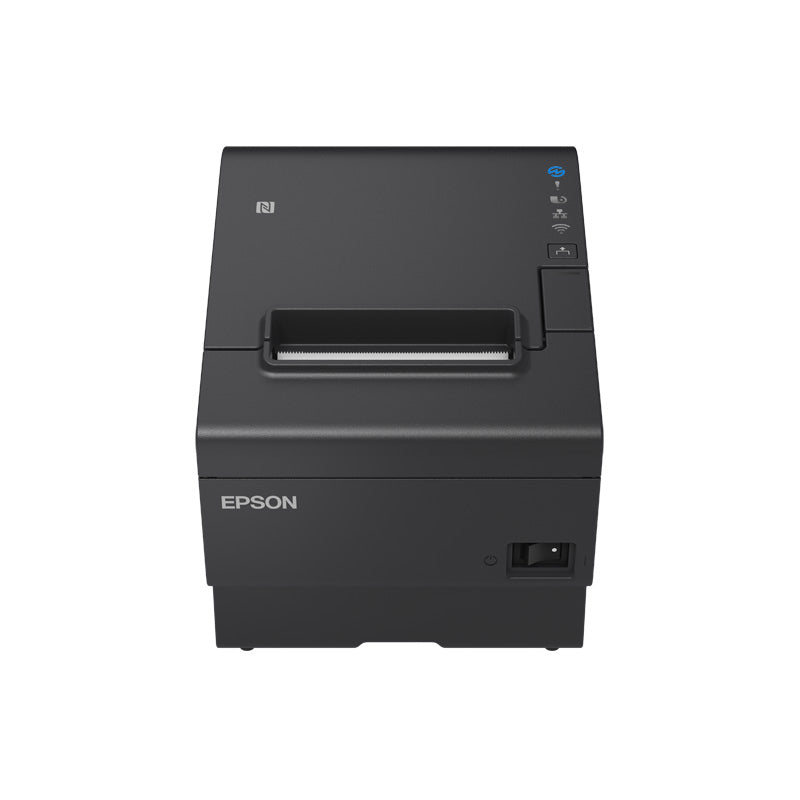

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.
Reliable and high-performance
Avoid downtime by choosing proven, reliable hardware from the market leader1. Fast print speeds of 500mm/s and high-quality, printed legible receipts will ensure happy customers.
Backwards compatible
The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters/tills.
Eco-conscious
The TM-T88VII demonstrates reduced environmental impacts, with lower noise level, lower power consumption and smaller, more efficient power supply. The printer is now compatible with more eco-friendly, Phenol-free paper.
Printing
- Print technology: Thermal
- Type: POS printer
- Maximum resolution: 180 x 180 DPI
- Print speed: 500 mm/sec
- Printing characters: Text,Graphic,Barcode,2D barcode
- Character sets: ANK
Paper handling
- Printing media thickness: 48 - 80 µm
- Supported paper width: 80 mm
- Maximum roll diameter: 83 mm
- Media thickness: 48 - 80 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- USB port: Yes
- USB connector: USB Type-A / USB Type-B
- Near Field Communication (NFC): Yes
- Optional connectivity: Wireless LAN
Network
- Ethernet LAN: Yes
Features
- Sound pressure level (standby): 52 dB
- Sound pressure level (printing): 52 dB
- Mean time between failures (MTBF): 360000 h
- Autocutter durability: 3 million cuts
- Paper save function: Yes
- Mounting position: Horizontal/Vertical
- Country of origin: Philippines
- Print head life: 200 km
- Wall mountable: Yes
- Built-in sensors details: Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor
- Certification: CE
Design
- Product colour: Black
Power
- Power consumption (printing): 28.6 W
- AC input voltage: 24 V
- Power consumption: 28600 mA
- Power consumption (standby): 1.4 W
- Power consumption (standby): 1400 mA
Operational conditions
- Storage temperature (T-T): -10 - 50 °C
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 5 - 45 °C
System requirements
- Pre-installed software: Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print
Weight & dimensions
- Width: 145 mm
- Depth: 195 mm
- Height: 148 mm
- Weight: 1700 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 195 mm
- Package depth: 235 mm
- Package height: 260 mm
- Package weight: 2704 g
Print technology
- Column capacity: 42/56
Logistics data
- Pallet weight (UK): 0 g
- Harmonized System (HS) code: 84433210
- Products per pallet: 112 pc(s)
- Pallet gross weight: 0 g
- Products per pallet (UK): 168 pc(s)
Technical details
- Lifetime: 20000000 lines
Other features
- Mean cycles between failures (MCBF): 70000000
- Buffer size: 4 KB
