Printing
- Print technology: Thermal
- Type: POS printer
- Maximum resolution: 180 x 180 DPI
- Print speed: 500 mm/sec
- Character size: 1.41 x 3.39 mm
- Printing characters: Text,Graphic,Barcode,2D barcode
- Character sets: ANK
Paper handling
- Maximum roll diameter: 83 mm
- Supported paper width: 80 mm
- Printing media thickness: 48 - 80 µm
- Media thickness: 48 - 80 mm

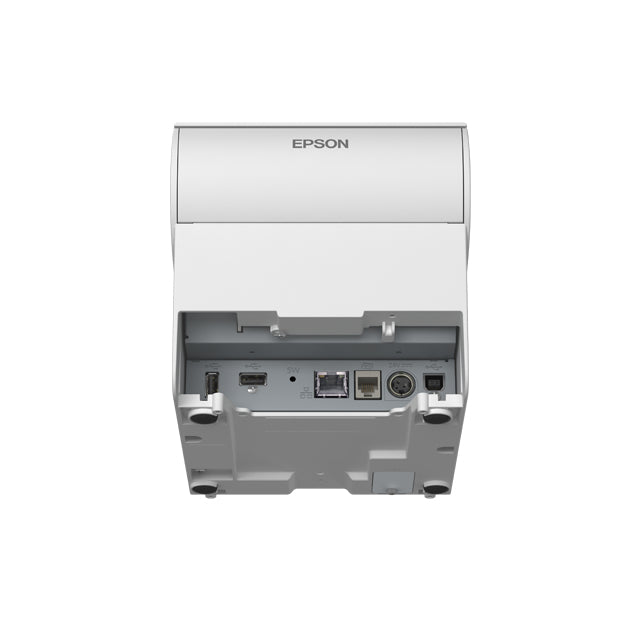

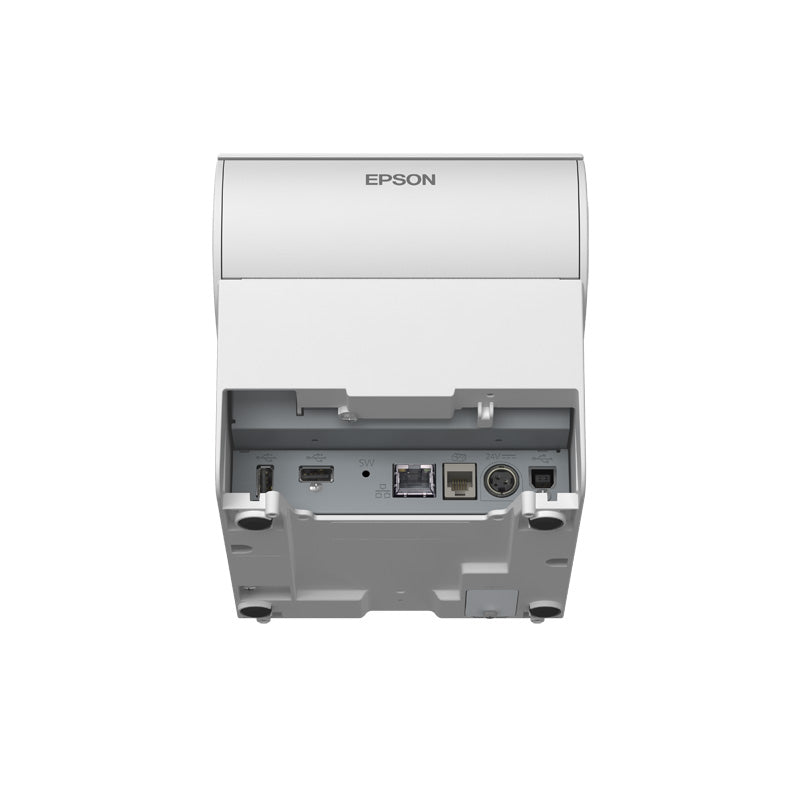

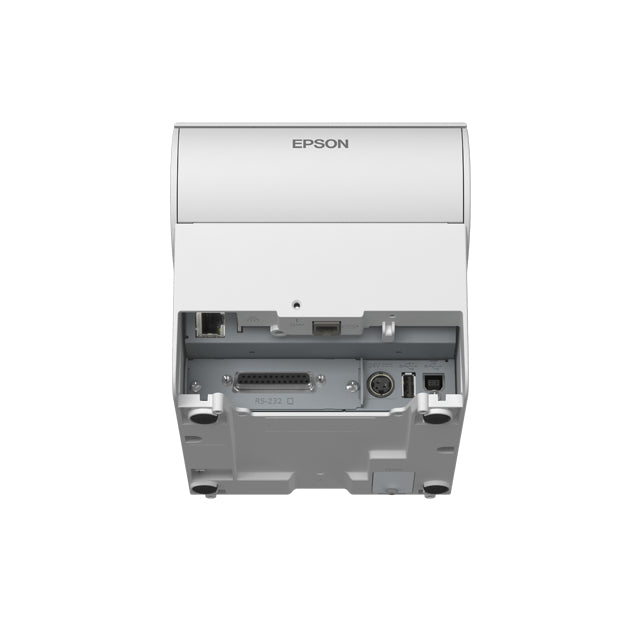

Ports & interfaces
- Connectivity technology: Wired & Wireless
- USB port: Yes
- USB connector: USB Type-A / USB Type-B
- Near Field Communication (NFC): Yes
- Optional connectivity: Wireless LAN
Network
- Ethernet LAN: Yes
Features
- Sound pressure level (printing): 52 dB
- Sound pressure level (standby): 52 dB
- Mean time between failures (MTBF): 360000 h
- Autocutter durability: 3 million cuts
- Paper save function: Yes

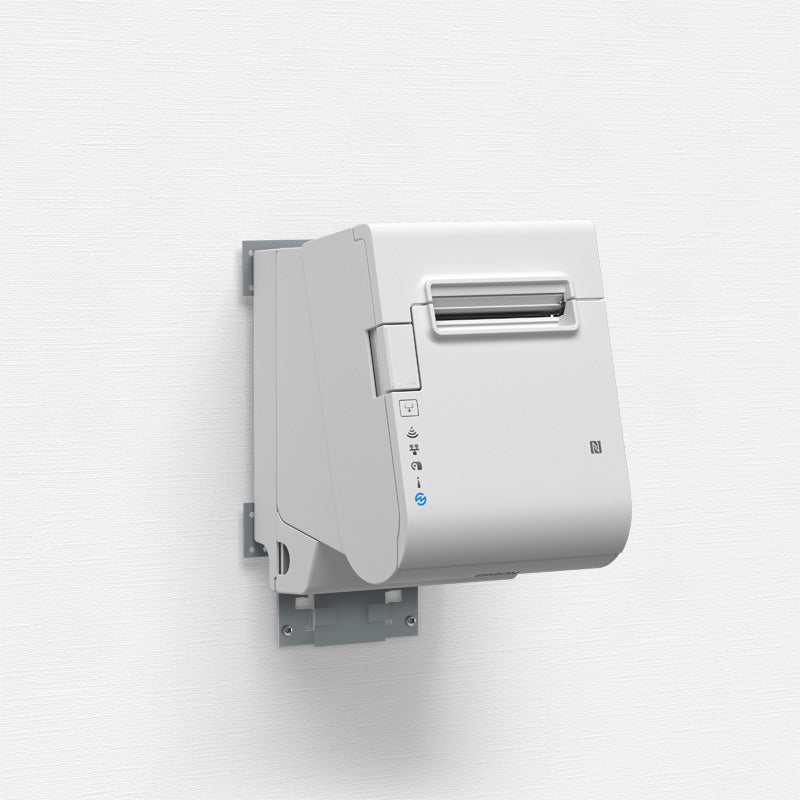

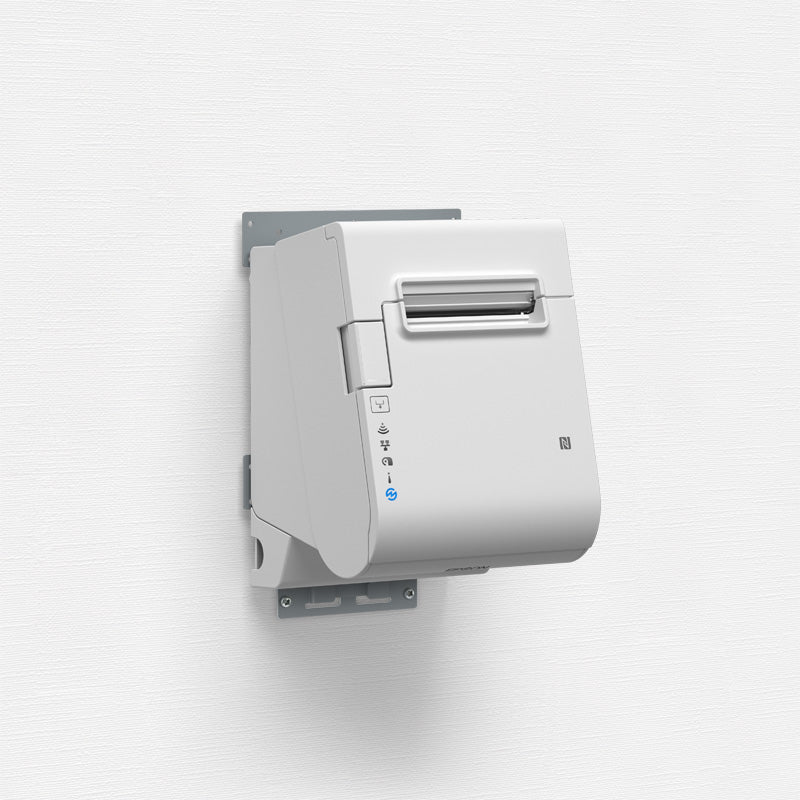

- Wall mountable: Yes
- Mounting position: Horizontal/Vertical
- Print head life: 200 km
- Country of origin: Philippines
- Built-in sensors details: Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor
- Certification: CE
Design
- Product colour: White
Power
- Power consumption (printing): 28.6 W
- AC input voltage: 24 V
- Power consumption (standby): 1.4 W
- Power consumption: 28600 mA
- Power consumption (standby): 1400 mA
Operational conditions
- Storage relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 5 - 45 °C
- Storage temperature (T-T): -10 - 50 °C
- Operating relative humidity (H-H): 10 - 90 %
System requirements
- Pre-installed software: Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print
Weight & dimensions
- Width: 145 mm
- Depth: 195 mm
- Height: 148 mm
- Weight: 1700 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 195 mm
- Package depth: 235 mm
- Package height: 260 mm
- Package weight: 2704 g
Print technology
- Column capacity: 42/56
Logistics data
- Pallet weight (UK): 0 g
- Harmonized System (HS) code: 84433210
- Products per pallet: 112 pc(s)
- Pallet gross weight: 0 g
- Products per pallet (UK): 168 pc(s)
Technical details
- Lifetime: 20000000 lines
Other features
- Buffer size: 4 KB
- Mean cycles between failures (MCBF): 70000000
