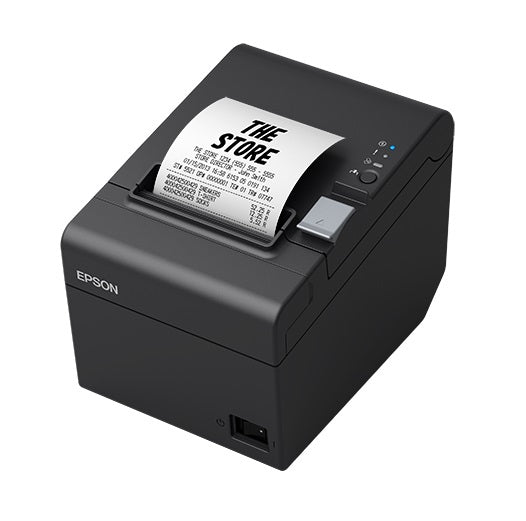

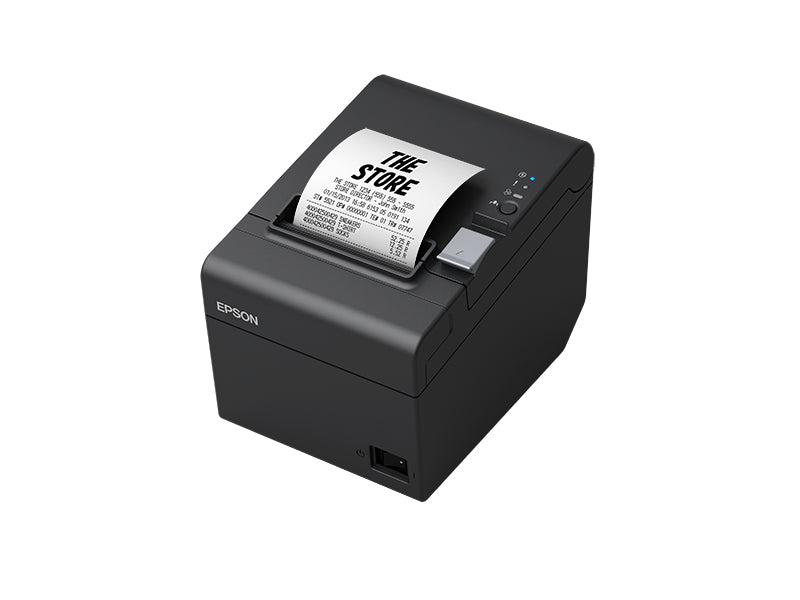

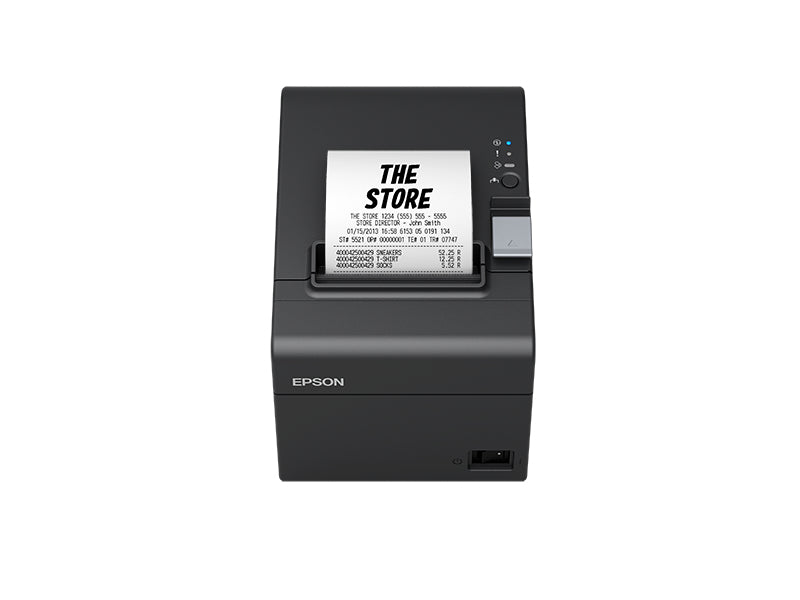

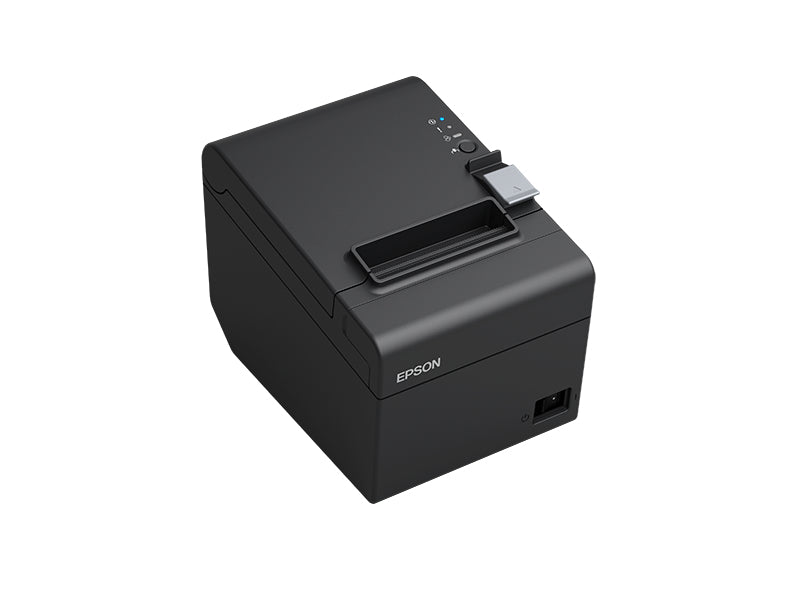

Epson TM-T20III (011): USB + Serial, PS, Blk, EU
The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.
Affordable
This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.
Reliable
With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20III in high-volume printing environments.
Flexible
The TM-T20III comes with a built-in USB interface. You can select from two models: 1) USB + Serial, 2) Ethernet, making the model a long-term investment as it is possible to switch connectivity at any time.
Fast
Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.
Printing
- Print technology: Direct thermal
- Type: POS printer
- Maximum resolution: 203 x 203 DPI
- Print speed: 250 mm/sec
- Character density: 22.6 cpi
- Printing characters: Text,Graphic,Barcode
- Character sets: ANK
Paper handling
- Maximum roll diameter: 83 mm
- Supported paper width: 80 mm

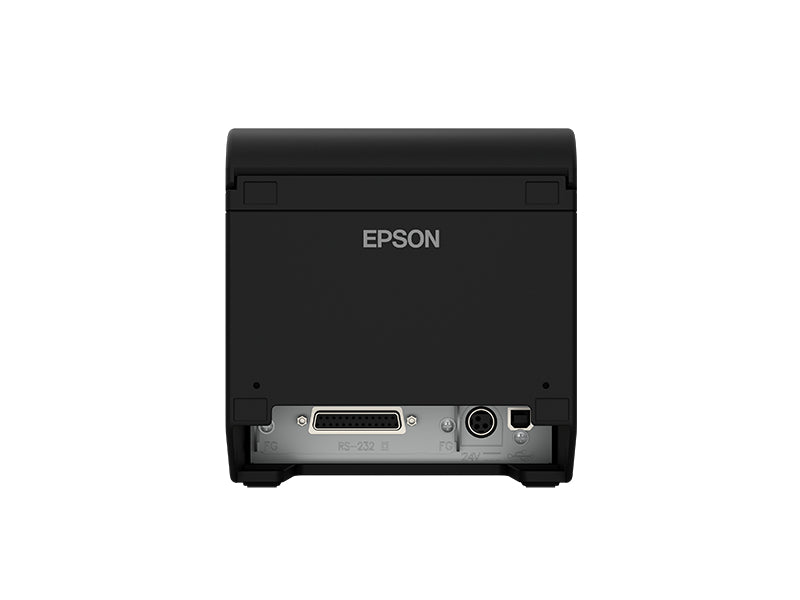

Ports & interfaces
- Connectivity technology: Wired
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB connector: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Standard interfaces: RS-232,USB 2.0
- Serial ports quantity: 1
Network
- Ethernet LAN: No
- Wi-Fi: No
Features
- Sound pressure level (printing): 55 dB
- Mean time between failures (MTBF): 360000 h
- Half-cutter: Yes
- Cutter: Yes
- Autocutter durability: 1.5 million cuts
- Paper save function: Yes
- Mounting position: Horizontal/Vertical
- Country of origin: Philippines
- Wall mountable: Yes
- Print head life: 150 km
- Built-in sensors details: Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor
- Safety: UL, CSA, TÜV
- Certification: FCC-Class A, CE, EN55022-Class A
Design
- Product colour: Black
Power
- Power source type: AC
- AC input voltage: 24 V
- Power consumption: 1800 mA
- Power consumption (standby): 100 mA
Operational conditions
- Storage relative humidity (H-H): 10 - 90 %
- Operating relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -10 - 50 °C
- Operating temperature (T-T): 5 - 45 °C
Weight & dimensions
- Width: 140 mm
- Depth: 199 mm
- Height: 146 mm
- Weight: 1700 g
Packaging data
- Cables included: AC
- Quantity per pack: 1 pc(s)
- Package width: 192 mm
- Package depth: 235 mm
- Package height: 280 mm
- Package weight: 2620 g
Packaging content
- Drivers included: Yes
- AC adapter included: Yes
- Quick start guide: Yes
Print technology
- Column capacity: 48/64
Logistics data
- Pallet weight (UK): 0 g
- Harmonized System (HS) code: 84433210
- Products per master (outer) case: 4 pc(s)
- Master (outer) case width: 400 mm
- Master (outer) case length: 490 mm
- Master (outer) case height: 295 mm
- Master (outer) case gross weight: 0 g
- Products per pallet: 112 pc(s)
- Products per pallet layer: 16 pc(s)
- Pallet gross weight: 0 g
- Products per pallet (UK): 168 pc(s)
- Products per pallet layer (UK): 24 pc(s)
Technical details
- Lifetime: 15000000 lines
Other features
- Print head life: 150 million characters
- Mean cycles between failures (MCBF): 60000000
- Buffer size: 4 KB
- Print head life: 150.000.000 Impulse
