Truly multifunctional

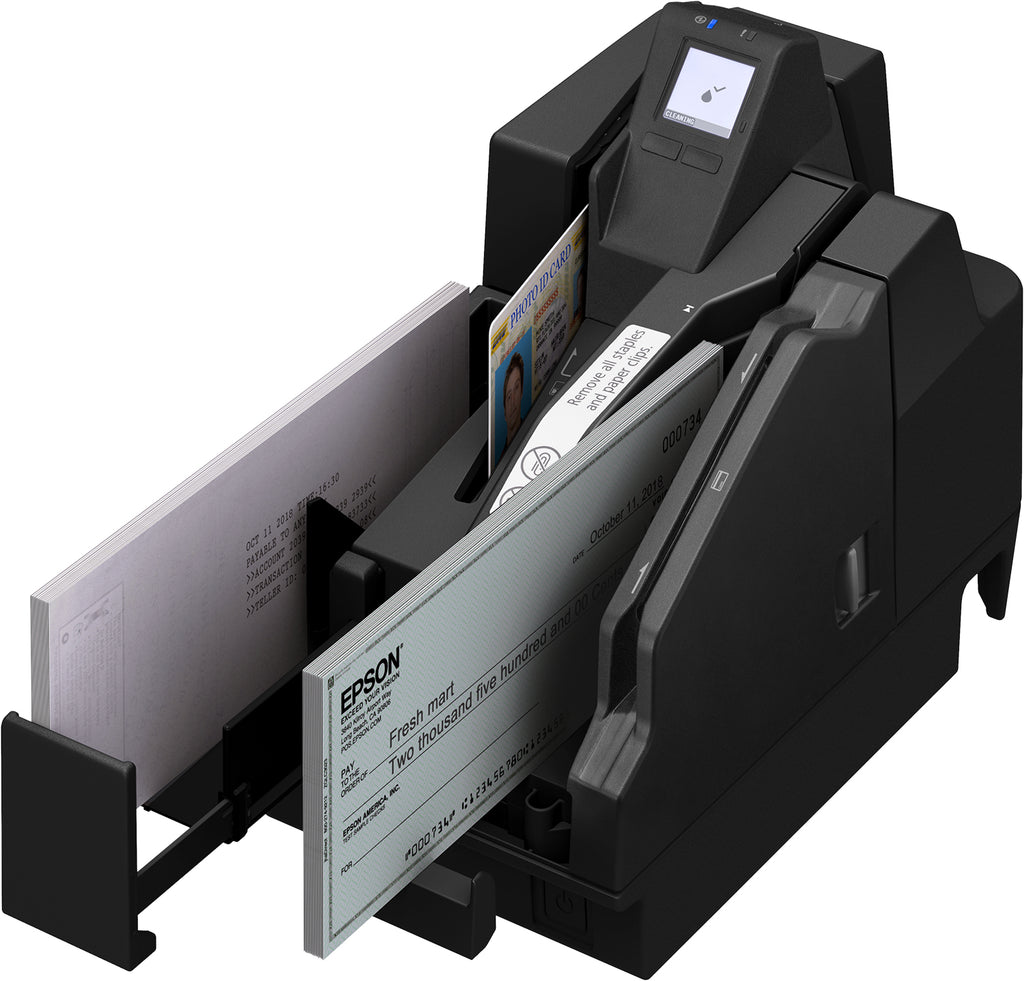

In addition to its advanced cheque-scanning features, the TM-S2000II-MJ also offers two-sided, 24-bit color ID scanning and an inkjet printer for cashier cheque filling.
Easy to use
This easy to use and maintain cheque scanner also features, advanced self-diagnostics and an intuitive LCD display that keeps the user informed of the device status at all times, and communicates when interventions are needed.
More than just cheque scanning
In addition to supporting the traditional financial markets, the TM-S2000II-MJ also serves other niche markets such as restaurant vouchers and pharmacy prescriptions - speeding up processing times and eliminating unnecessary human intervention.
Stylish Design
Black version fits seamlessly into most environments. Efficient MSR design for improved usability. Compact design - small footprint.
Scanning
- Maximum scan size: 109.728 x 255 mm
- Optical scanning resolution: 300 x 300 DPI
- Colour scanning: Yes
- Duplex scanning: Yes
- Greyscale levels: 256
- ID card resolutions: 200 x 200,300 x 300,600 x 600 DPI
- Scanner throughput: 130 dpm
Design
- Scanner type: Business card scanner
- Built-in display: Yes
- Product colour: Black
Performance
- Sensor type: CIS
- Scan file formats: BMP,JPEG,TIFF
- Mean cycles between failures (MCBF): 4940000
- Mean time between failures (MTBF): 180000 h
- Built-in MICR: Yes
- MICR font set: CMC-7,E-13B
- Built-in OCR: Yes
Input capacity
- Standard input capacity: 100 sheets
- Auto document feeder (ADF) input capacity: 100 sheets
Paper handling
- Scanning media types supported: Plain paper,Plastic Card
- ID-cards (ISO/IEC 7810) compliant: Yes
- ID-card slot: Yes
- Card thickness (max): 0.2 mm
- Plastic card media weight: 60 - 120 g/m²
- Maximum scan width: 120 mm
- Maximum scan length: 235 mm
Ports & interfaces
- USB port: Yes
- USB version: 2.0
- USB connector type: USB Type-A
- Standard interfaces: USB 2.0
Power
- Power supply type: DC
- Output voltage: 24 V
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 250 mm
- Package depth: 400 mm
- Package height: 295 mm
- Package weight: 5616 g
Features
- Country of origin: China
Operational conditions
- Operating temperature (T-T): 10 - 35 °C
- Storage temperature (T-T): -20 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 20 - 85 %
Certificates
- Certification: CE, EN55024, EN55032 Class A, Directive 2014/30/EU
Weight & dimensions
- Width: 167 mm
- Depth: 410 mm
- Height: 206 mm
- Weight: 4100 g
Packaging content
- Cables included: USB
- Quick start guide: Yes
- AC adapter included: Yes
Other features
- Scan speed (ID card): 118 mm/sec
- Scan speed (max): 1000 mm/sec
- Maximum text length per line: 169 characters
- Media thickness: 0.08 - 0.2 mm
- Endorsement printing: Yes
- Print technology: Inkjet
- Pallet gross weight: 0 g
- Character structure: Font A
- Printing height: 50.8 mm
- Safety: TÜV (EN62368-1)
- Maximum media length: 235 mm
- Print head life: 6000 million shots/nozzle
Logistics data
- Products per pallet: 63 pc(s)
- Pallet weight (UK): 0 g
- Pallet height (UK): 2215 mm
- Pallet gross width: 800 mm
- Products per pallet layer: 9 pc(s)
- Pallet length (UK): 1200 mm
- Pallet gross height: 2215 mm
- Pallet width (UK): 1000 mm
- Products per pallet layer (UK): 12 pc(s)
- Products per pallet (UK): 84 pc(s)
- Pallet gross length: 1200 mm
- Harmonized System (HS) code: 84716070
