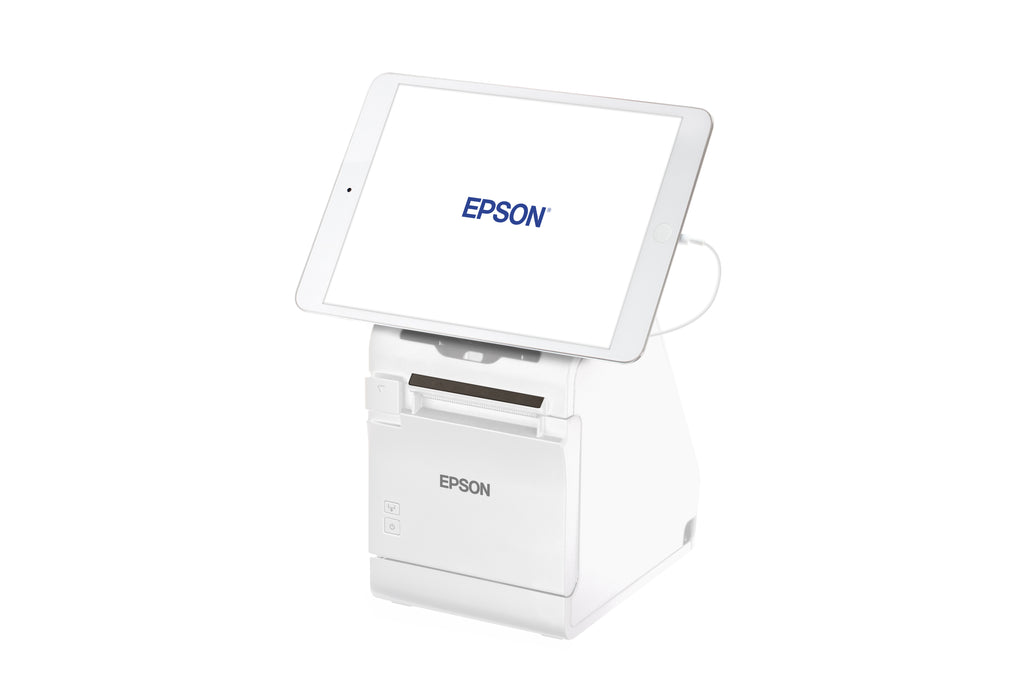

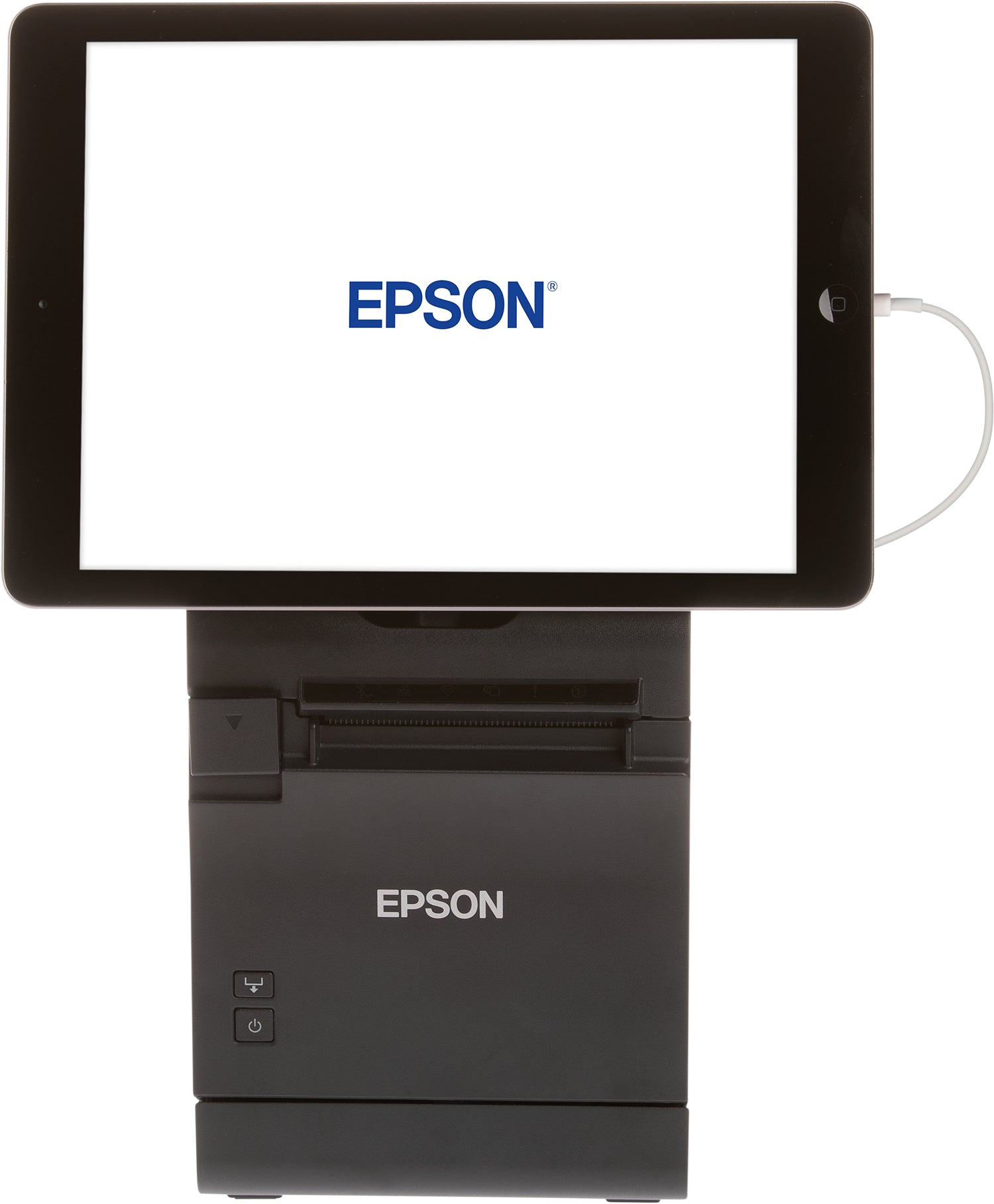

All-in-one mPOS solution
Epson, the number one POS printer manufacturer in Europe¹, has developed this design-led, all-in-one mPOS solution for specialist shops, boutique outlets, small restaurants, bars, coffee shops, delis, pop ups and food trucks. It can even be used as a self-service hub thanks to its robust, compact design and a paper near end sensor that allows for unattended operation.
Advanced connectivity
This mPOS device boasts advanced hub functionality and a rich set of connectivity features and options. Peripherals such as scanners, keypads and scales, can connect directly with the TM-m30II-S and pass data directly to the tablet device. It also includes enhanced connectivity (USB and Ethernet) and Server Direct Print (SDP) and Cloud (OMS) intelligent functionality.
Compact and stylish

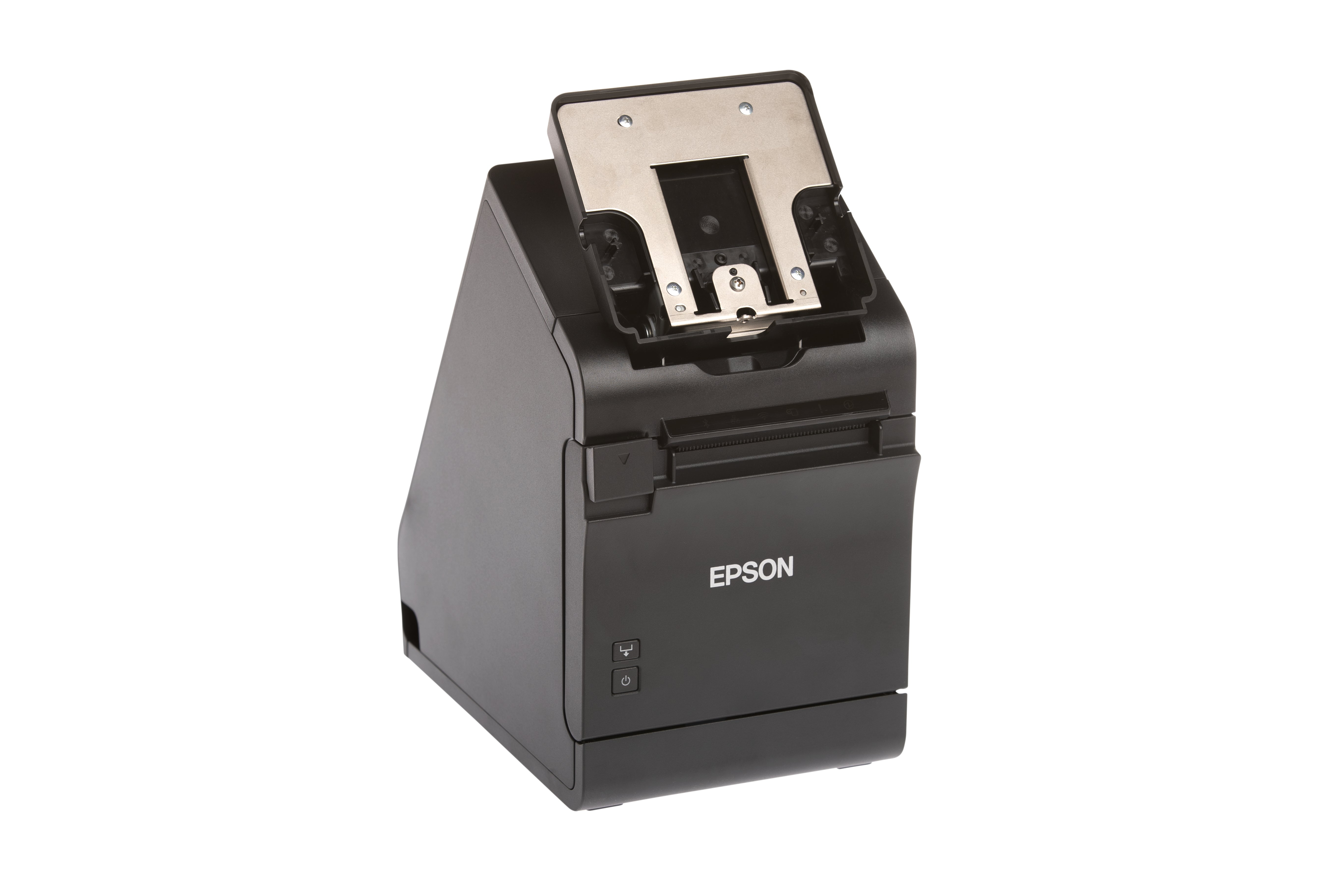

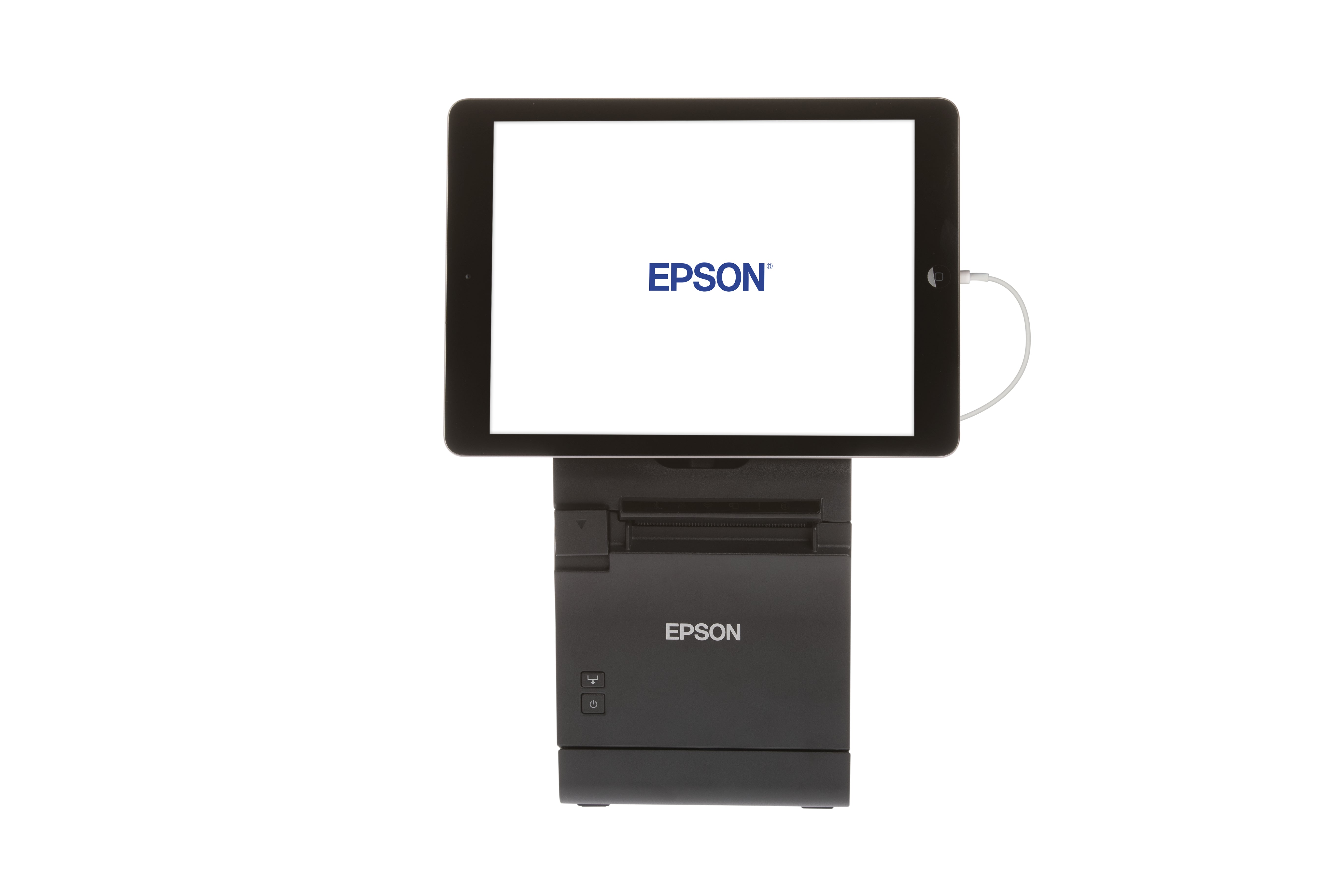

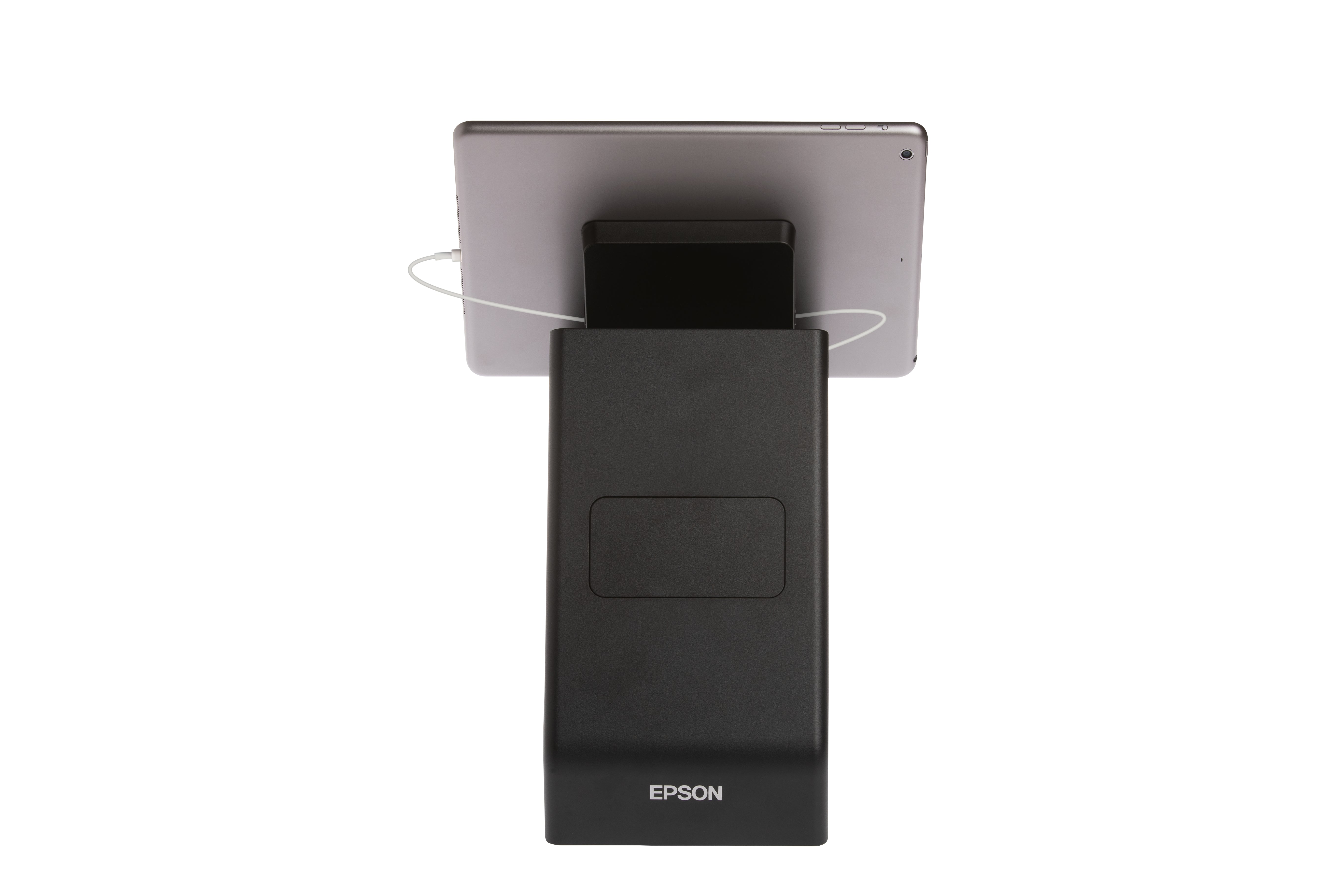

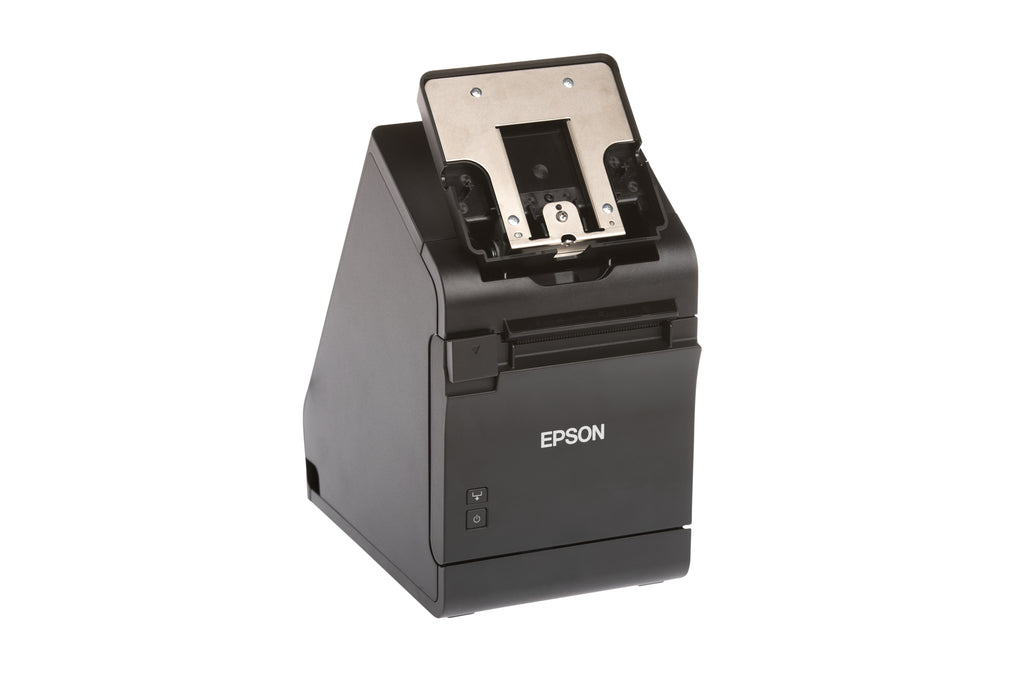

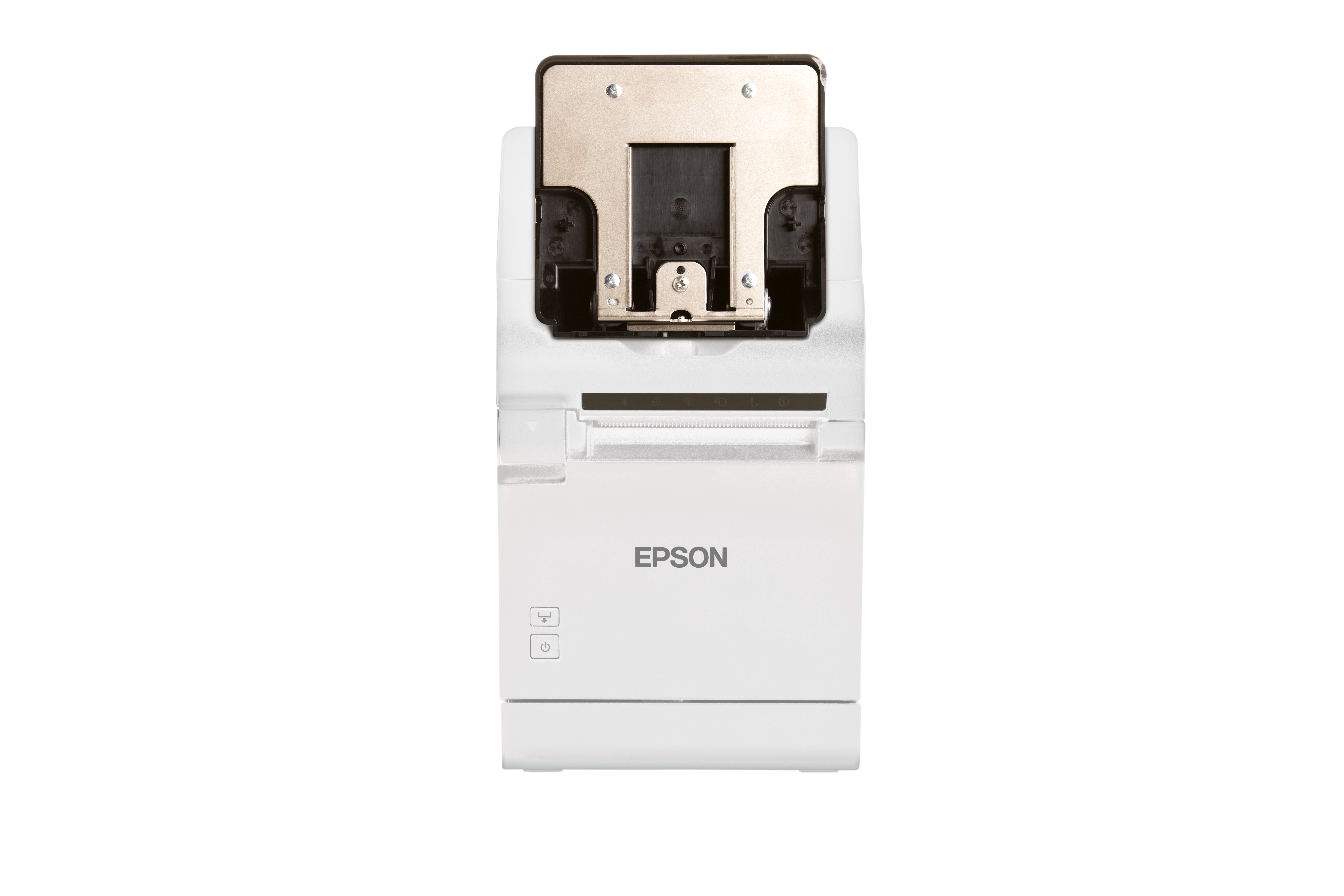

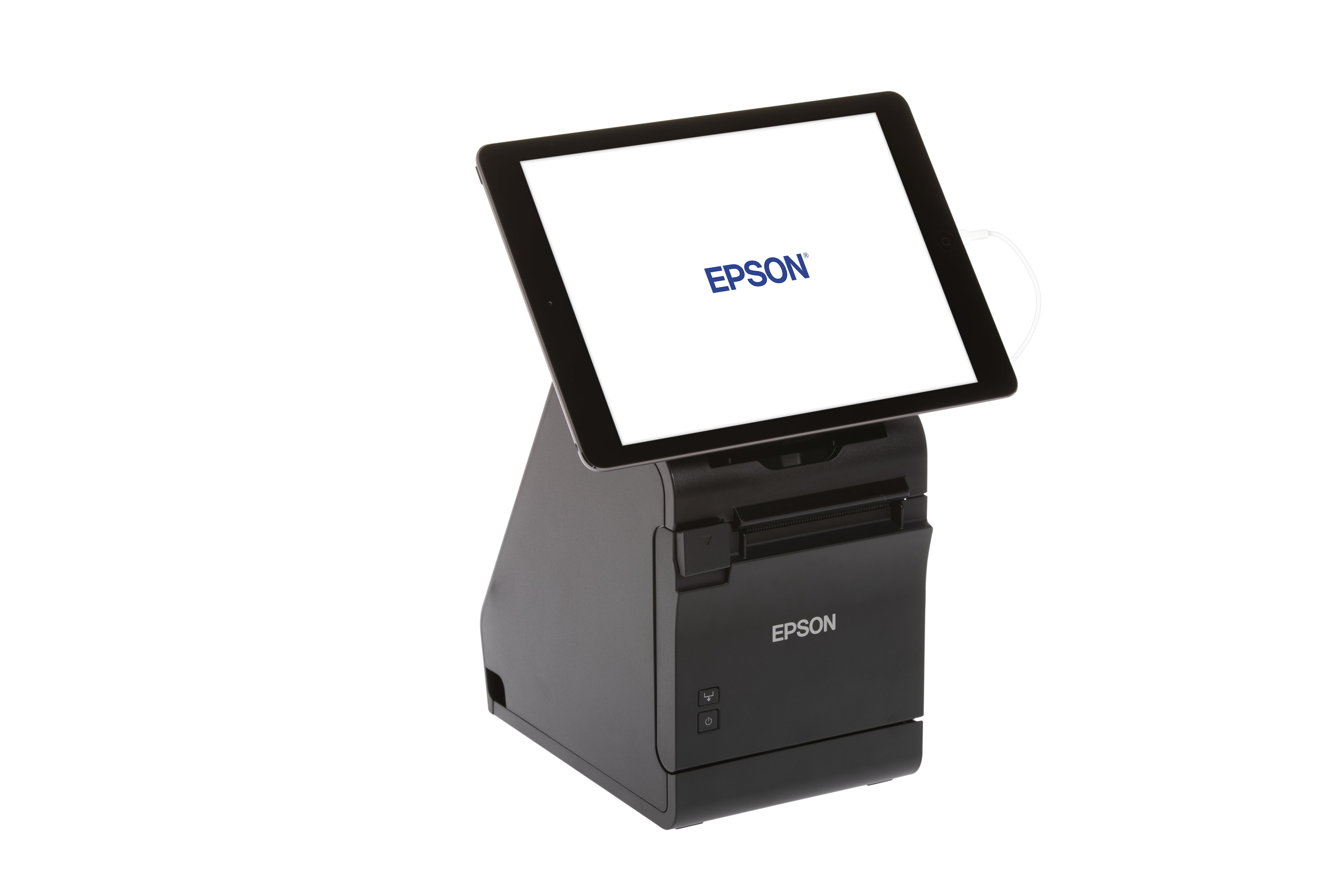

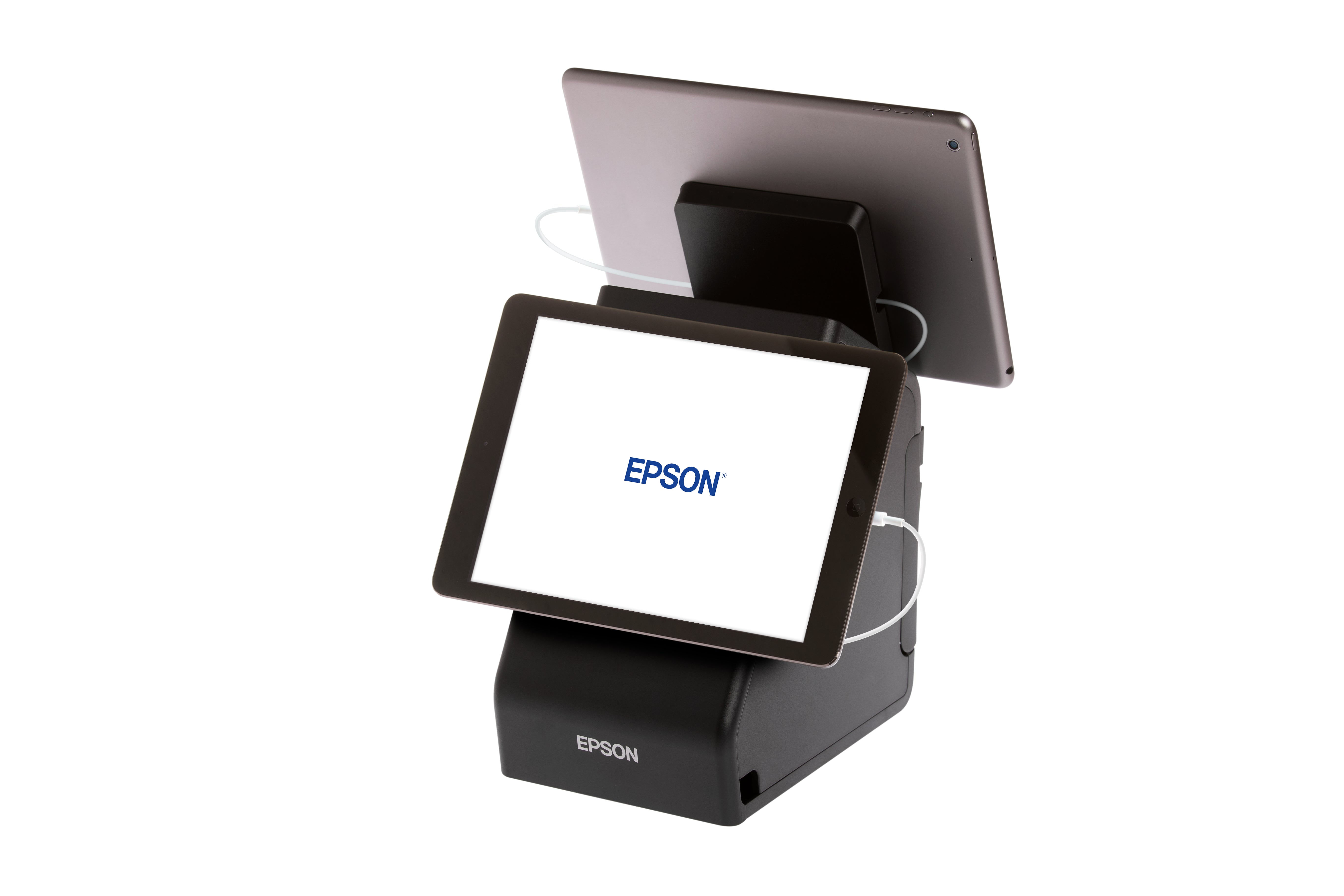

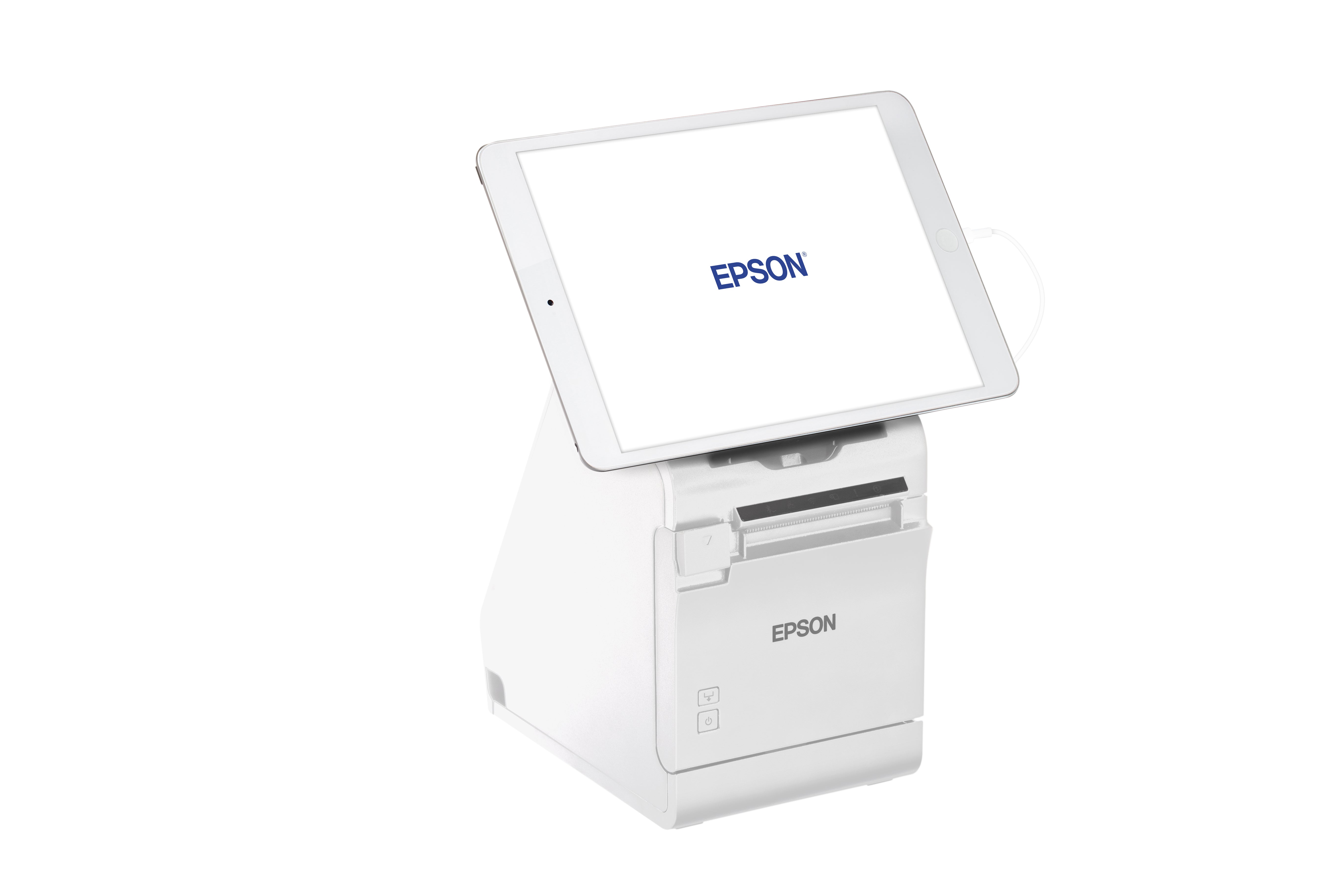

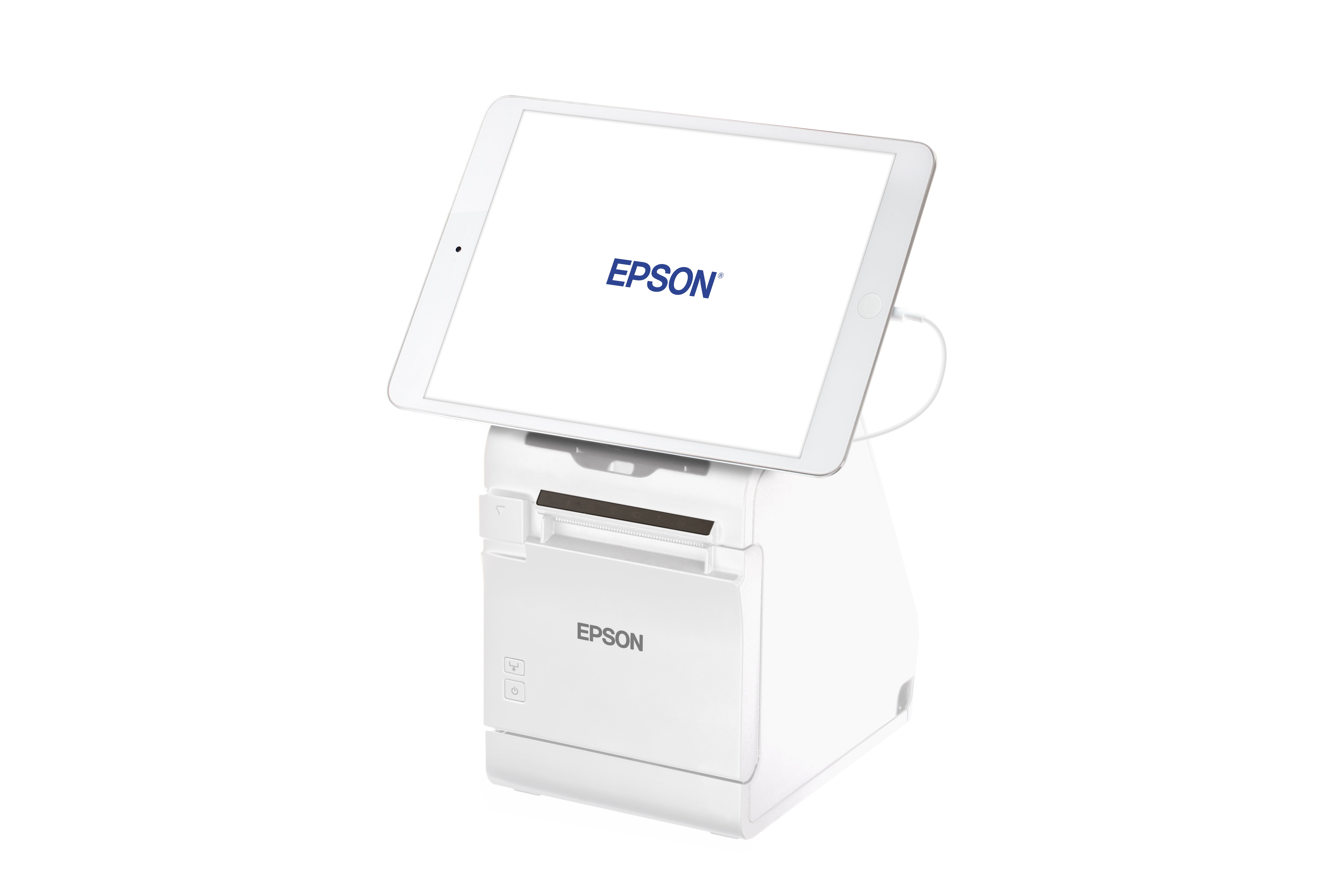

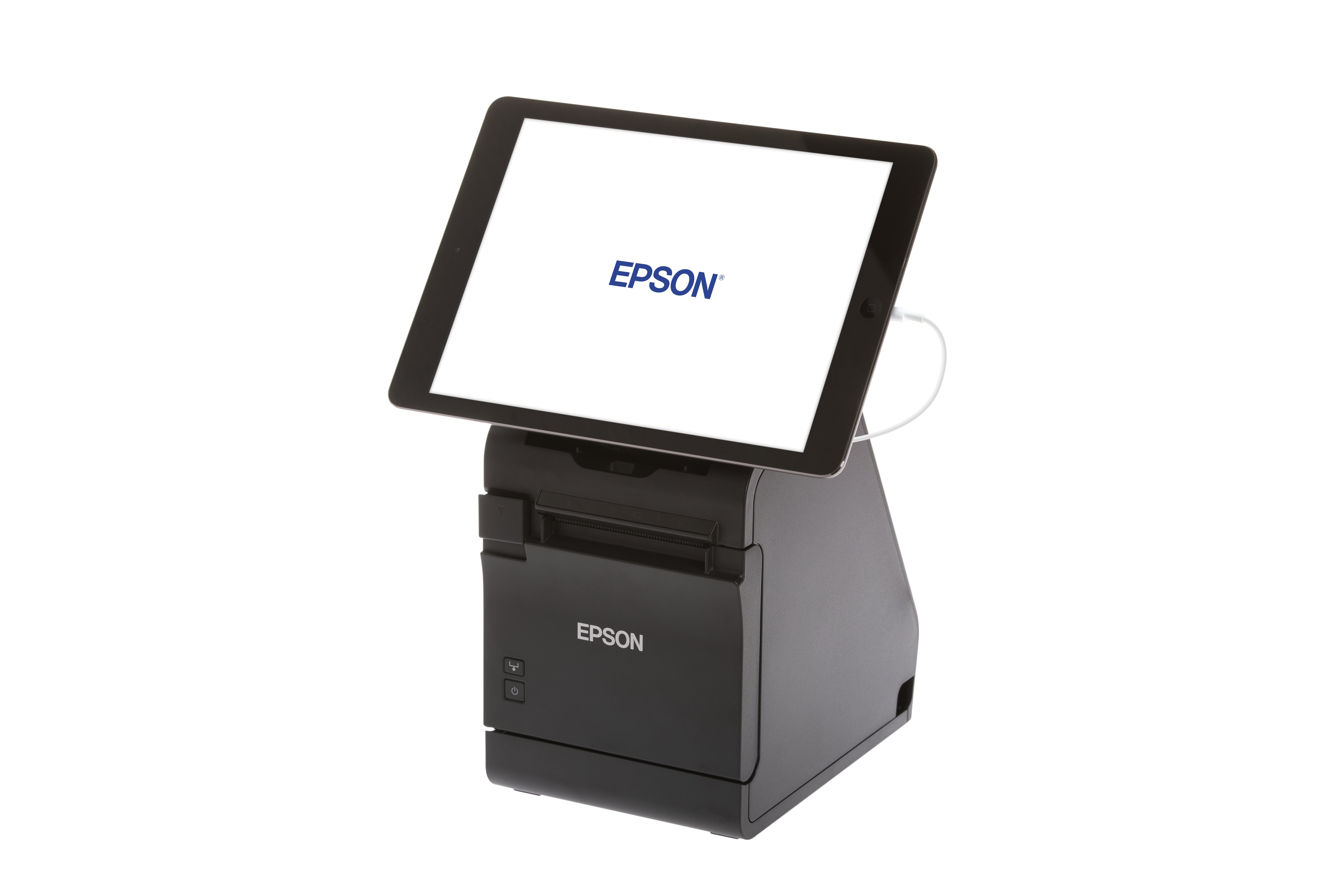

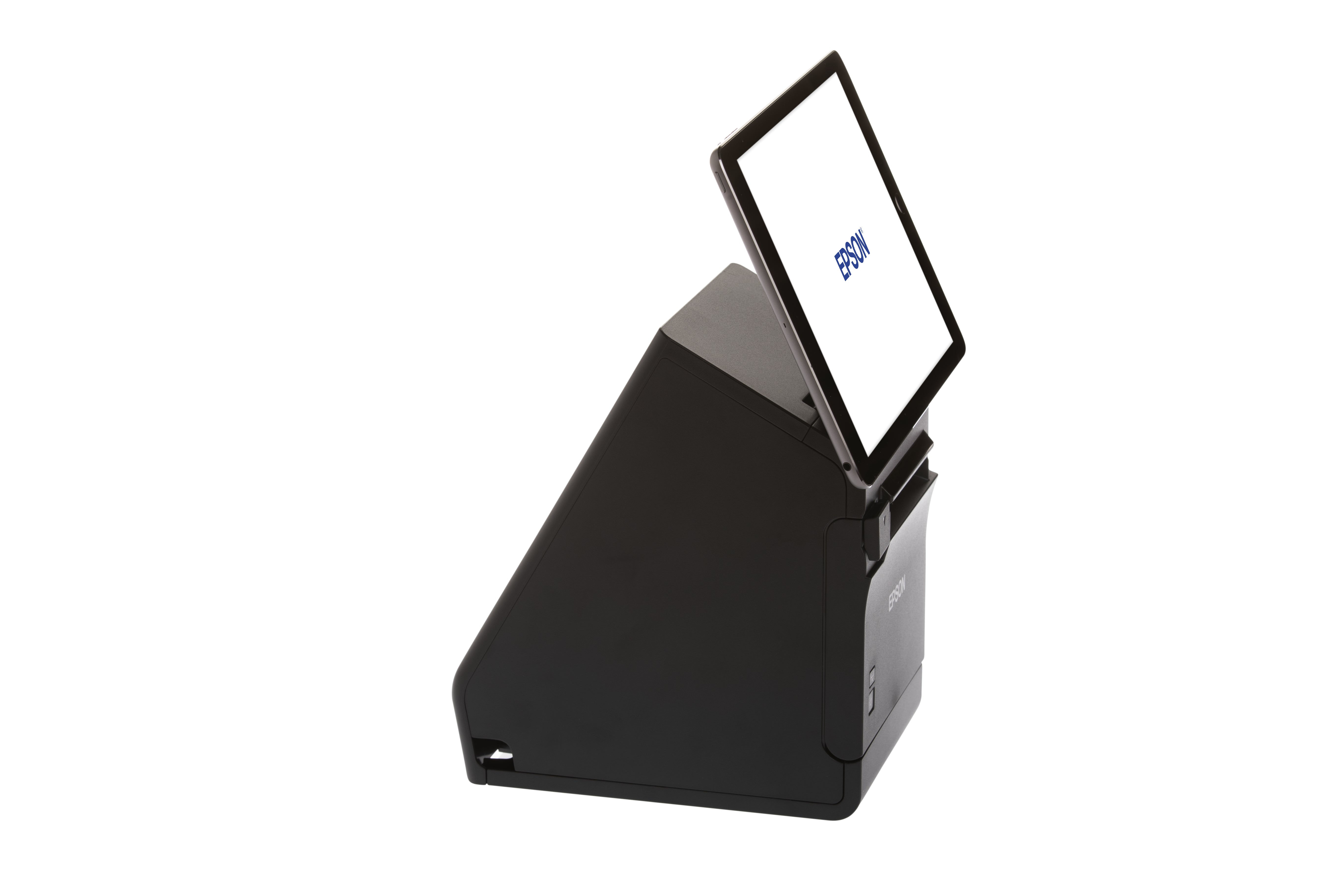

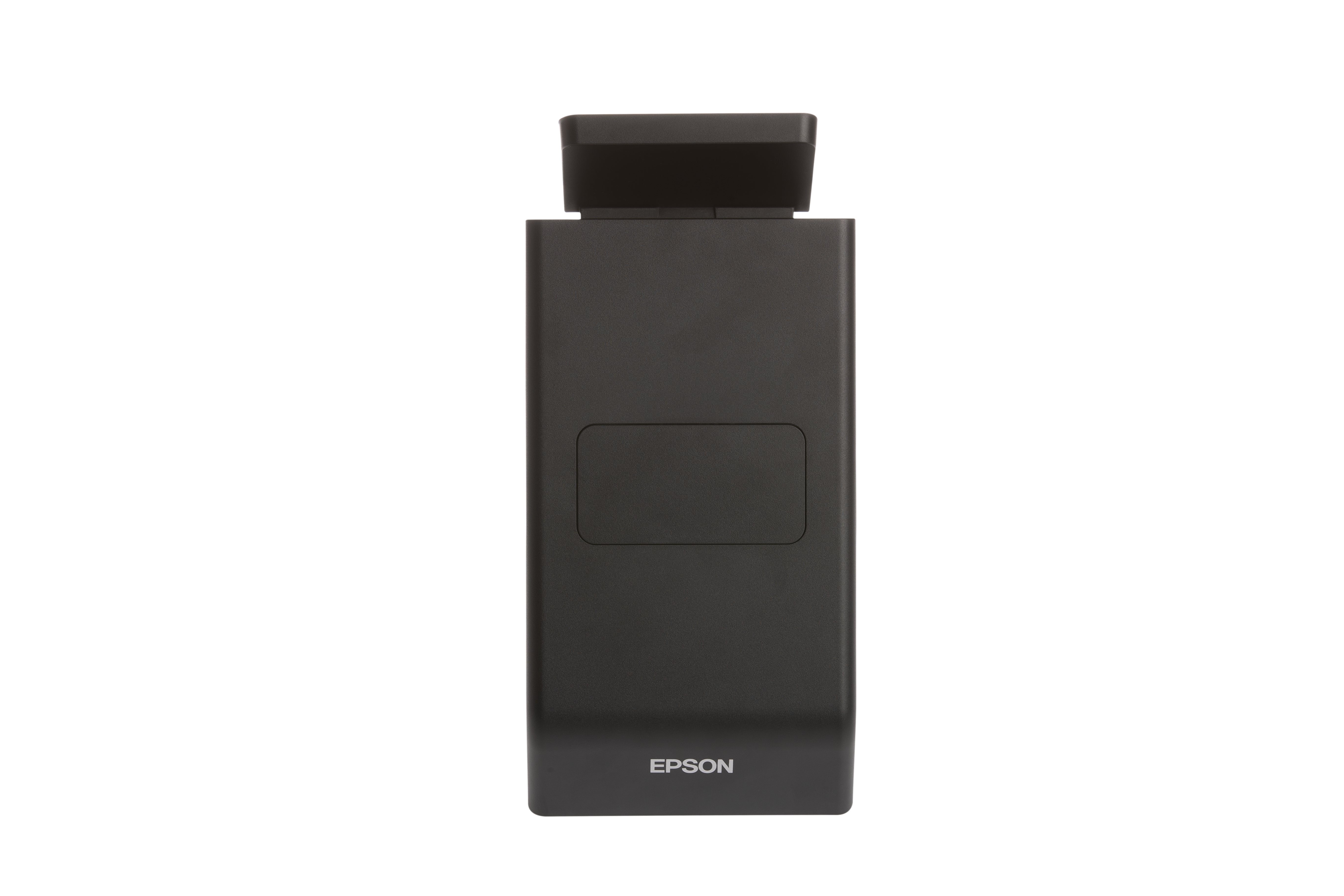

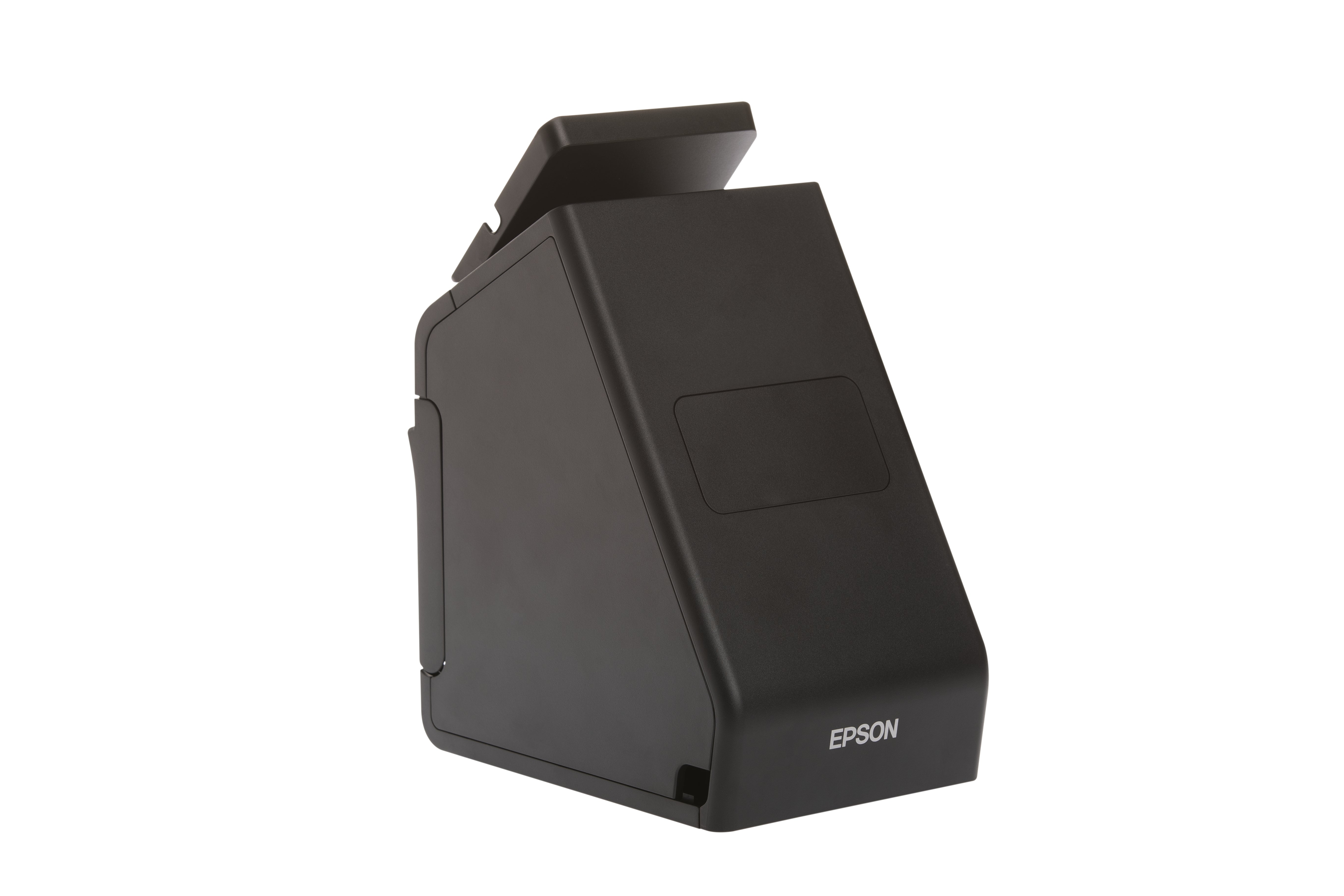

The TM-m30II-S is the compact and stylish mPOS solution that incorporates both printer and tablet stand. This frees up valuable countertop space and saves users time by not having to manage individual hardware components. It can also be installed both horizontally and vertically to allow more efficient space management. The discreet design fits seamlessly into most environments and it's available in black or white.
Easy to use and reliable

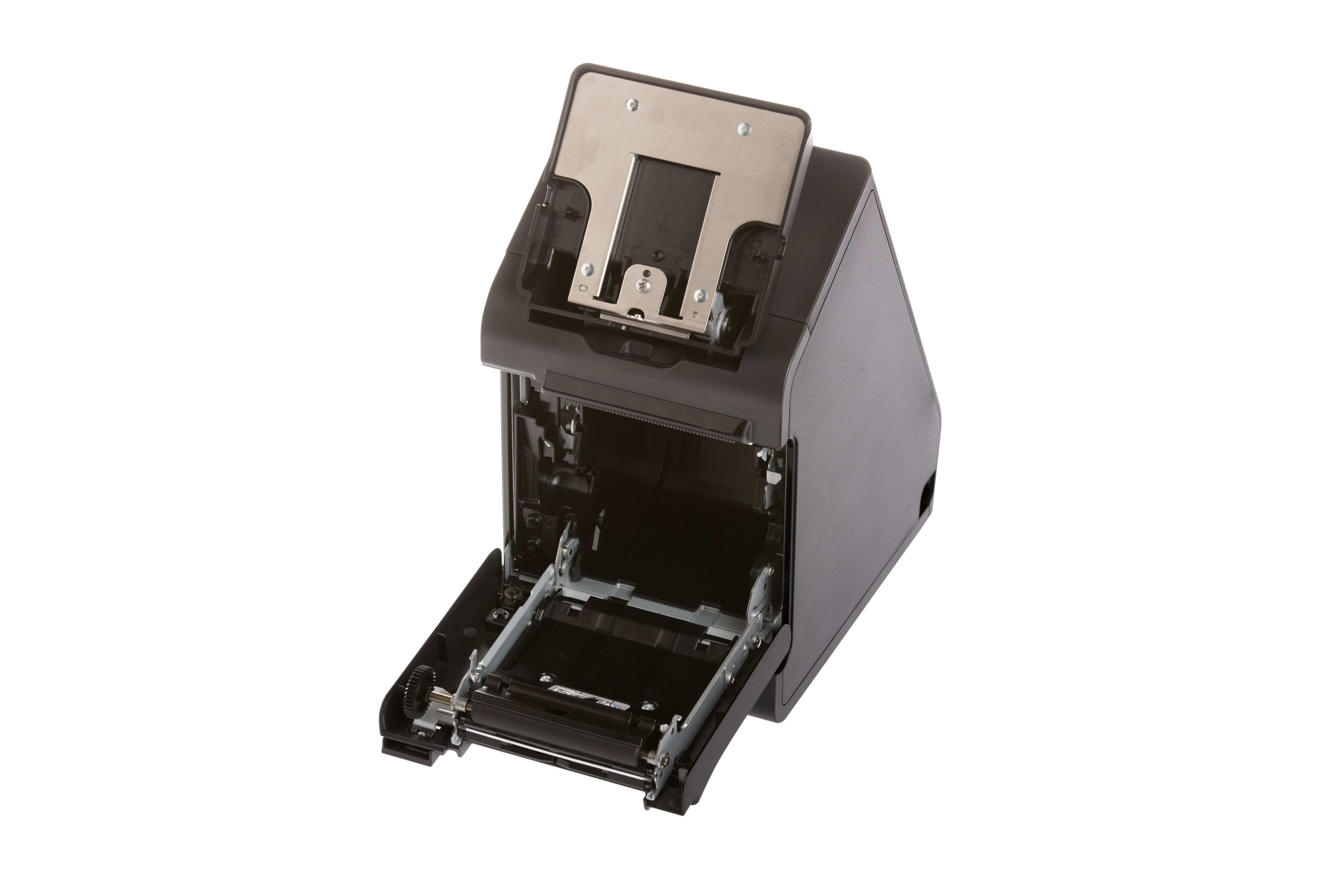

Epson's POS expertise has resulted in the unrivalled build quality and refined functionality of the TM-m30II-S; each component has been developed with ease of use in mind. It pairs easily with mobile devices and LED indicators display the status for Wi-Fi and Ethernet. Also, the flexible drop-in paper loading allows users to access the TM-m30II-S from either the top or the front. Put simply, this out-of-the-box solution is highly intuitive and designed to keep businesses running.
Printing
- Print technology: Direct thermal
- Type: POS printer
- Maximum resolution: 203 x 203 DPI
- Print speed: 250 mm/sec
- Print speed (receipt): 250 mm/sec
- Printing characters: Text,Graphic,Barcode
- Character sets: ANK
Paper handling
- Maximum roll diameter: 83 mm
- Maximum printing width: 80 mm
- Supported paper width: 58 mm - 80 mm (Breite) mm

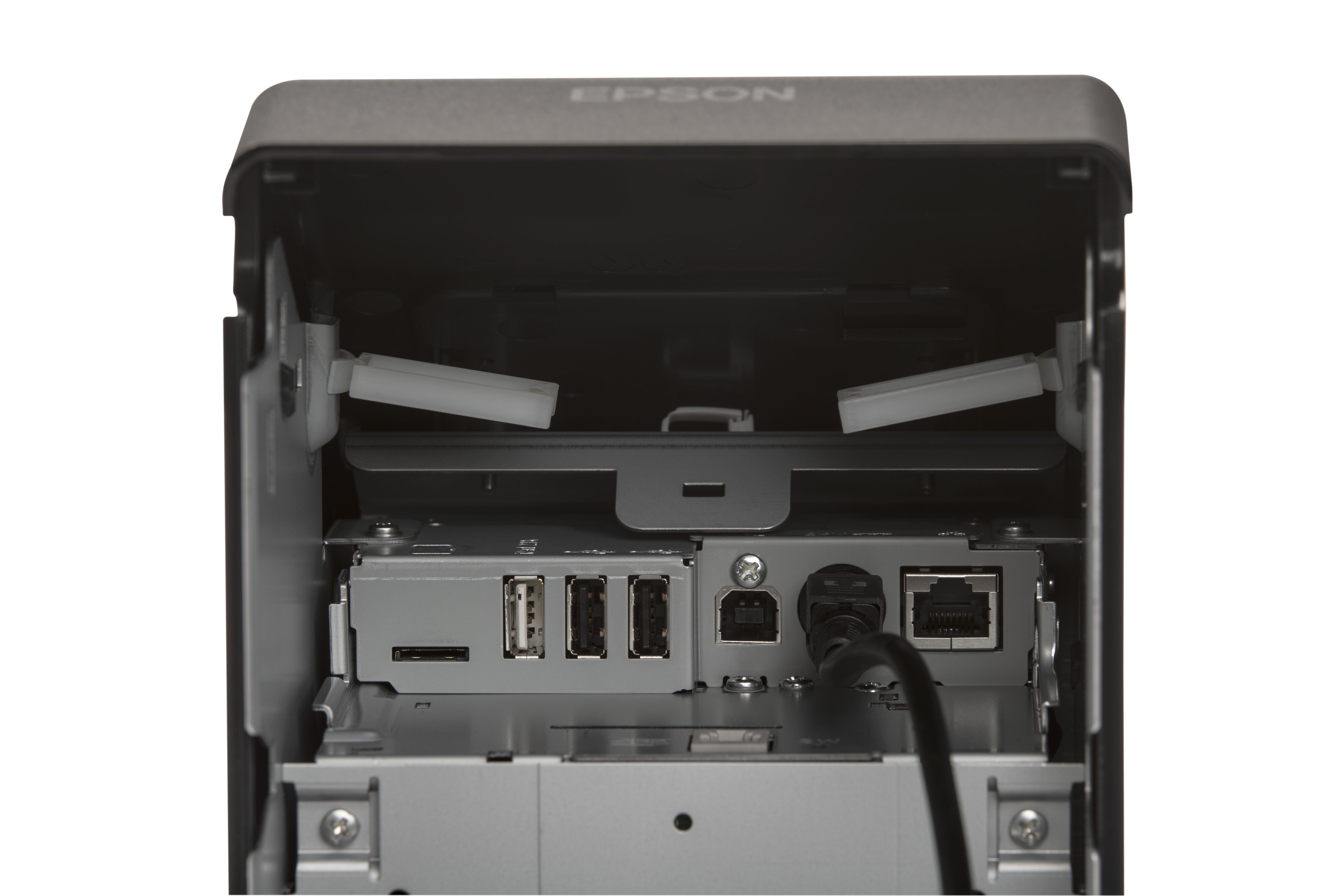

Ports & interfaces
- Connectivity technology: Wired
- USB port: Yes
- USB 2.0 ports quantity: 4
- USB connector: USB Type-A / USB Type-B
Network
- Ethernet LAN: Yes
- Wi-Fi: No
Features
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Sound pressure level (printing): 55 dB
- Mean time between failures (MTBF): 360000 h
- Cutter: Yes
- Half-cutter: Yes
- Autocutter durability: 2.2 million cuts
- Tablet charge & sync: Yes
- Country of origin: Philippines
- Mounting position: Vertical
- Print head life: 150 km
- Built-in sensors details: Paper End Sensor, Paper Near End Sensor, Papier-Sensor
Design
- Product colour: White
Power
- Power source type: AC
- Power plug type: Type C
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 5 - 45 °C
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 140 mm
- Depth: 214 mm
- Height: 255 mm
- Weight: 2900 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 210 mm
- Package depth: 312 mm
- Package height: 327 mm
- Package weight: 3842 g
Print technology
- Column capacity: 48/57
Logistics data
- Pallet weight (UK): 0 g
- Harmonized System (HS) code: 84433210
- Products per pallet: 72 pc(s)
- Pallet gross weight: 0 g
- Products per pallet (UK): 96 pc(s)
Technical details
- Font styles: ANK
- Lifetime: 17000000 lines
Other features
- Mean cycles between failures (MCBF): 65000000
- Buffer size: 12 KB
- Print head life: 150 million characters
- Print head life: 150.000.000 Impulse
