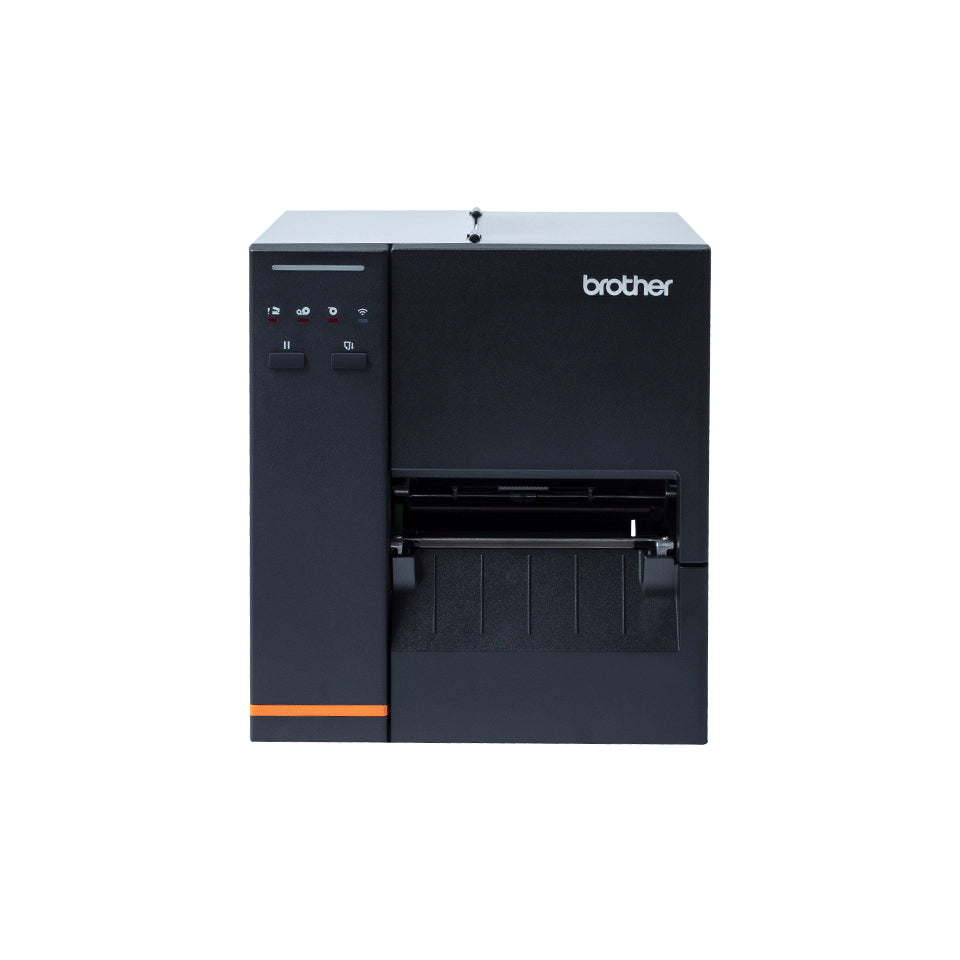

Brother TJ-4020TN Industrial Label Printer
4" industrial thermal label printer with print width up to 107mm
The Brother TJ-4020TN industrial label printer offers performance you can rely on when keeping up with increasing demand.
The high-volume thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large ribbon capacity and in-built durability.
With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4020TN has been built with you in mind.
Connectivity as standard
USB, USB Host, Serial and Ethernet are included as standard for the industrial printers. An optional WLAN interface for WiFi connectivity is also available as an accessory to meet your requirements.
In-built durability
The TJ industrial printer series offers performance you can rely on, even in the toughest production environments. The reliable thermal barcode printer has been built with you in mind and built to last, ensuring you enjoy years of hassle-free label printing.
Integrate with ease
With the Brother TJ series, there is no need to worry about integration.
Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
Maximise productivity
The TJ-4020TN label machine offers fast print speeds to help you keep up with increasing demand. The high volume label printer is perfect for manufacturing and transport & logistics environments.
Printing
- Print technology: Direct thermal / thermal transfer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 254 mm/sec
- Maximum printing width: 107 mm
- Minimum print length: 5 mm
- Maximum print length: 25.4 m
Paper handling
- Ribbon width: 40 mm
- Ribbon length: 450 m
- Core diameter: 76.2 mm
- Maximum roll diameter: 203 mm
- Maximum label width: 120 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- USB port: Yes
- RS-232 ports: 1
Performance
- Page description languages: DPL,EPL2,ZPL II
- Internal memory: 128 MB
- Flash memory: 128 MB
- Built-in barcodes: AZTECCODE,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN128,EAN13,EAN8,GS1 DataBar,ITF-14,Industrial 2/5,Interleaved 2/5,MaxiCode,MicroPDF417,PDF417,QR Code,TLC39,UPC-E
- Number of fonts: 8
Design
- Product colour: Black
- Built-in display: No
- Display: No
- Control type: Buttons
System requirements
- Server operating systems supported: Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
- Mobile operating systems supported: Android,iOS
- Linux operating systems supported: Yes
- Windows operating systems supported: Windows 10,Windows 8.1
- Mac operating systems supported: Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina
Operational conditions
- Operating relative humidity (H-H): 25 - 85 %
- Storage relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 60 °C
Weight & dimensions
- Width: 350 mm
- Depth: 530 mm
- Height: 370 mm
- Weight: 9423 g
Packaging data
- Package weight: 11018 g
Packaging content
- Cables included: AC,USB
- Software development kit (SDK): Yes
Logistics data
- Harmonized System (HS) code: 84433210
- Pallet gross height: 163 mm
- Pallet gross weight: 238400 g
- Master (outer) cases per pallet: 20 pc(s)
- Master (outer) cases per pallet layer: 5 pc(s)
- Layers per pallet: 4 pc(s)
- Products per pallet: 20 pc(s)
Technical details
- Pallet type: 1200 x 1000 mm
Other features
- LED indicators: Error,Power,Status
- Country of origin: Taiwan
- Languages support: DAN,DEU,DUT,ENG,ESP,FIN,FRE,ITA,NOR,POR,SWE
