Versatile, compact desktop label printer with a built-in network, wireless and bluetooth connectivity. Print professional quality custom labels, wristbands and receipts at 152mm/sec.
A compact machine with the speed, features and media capacity of a desktop printer, the TD-2125NWB allows you to print professional quality custom labels, wristbands or receipts at 203dpi, wherever you are in the workplace. The built-in network, WiFi and bluetooth connectivity provides the flexibility to print wirelessly, or by using the available apps on your smartphone or tablet.
Printing from your existing systems is simple thanks to our range of software developer kits and easy integration.
The flexible TD-2125NWB can accommodate rolls of up to 5” in diameter, meaning less time wasted reloading media, plus there’s a choice of optional extras that ensure it’s perfectly suited to your business needs.

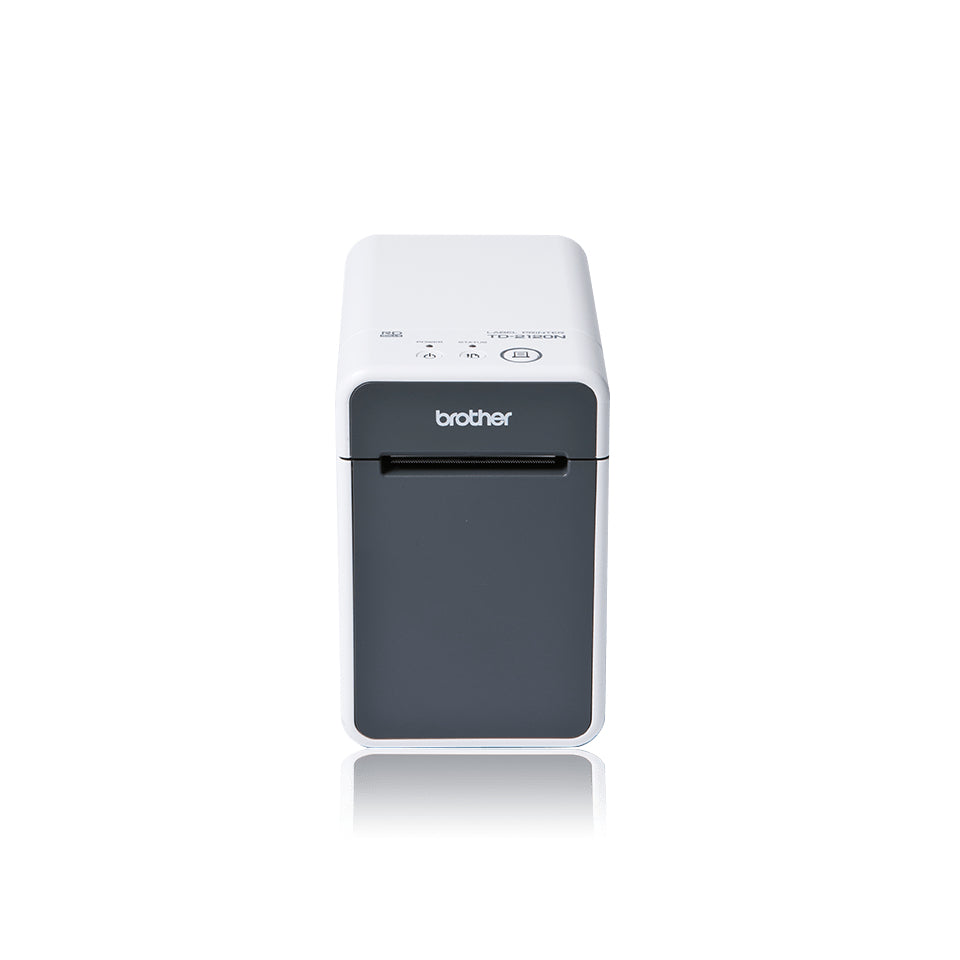

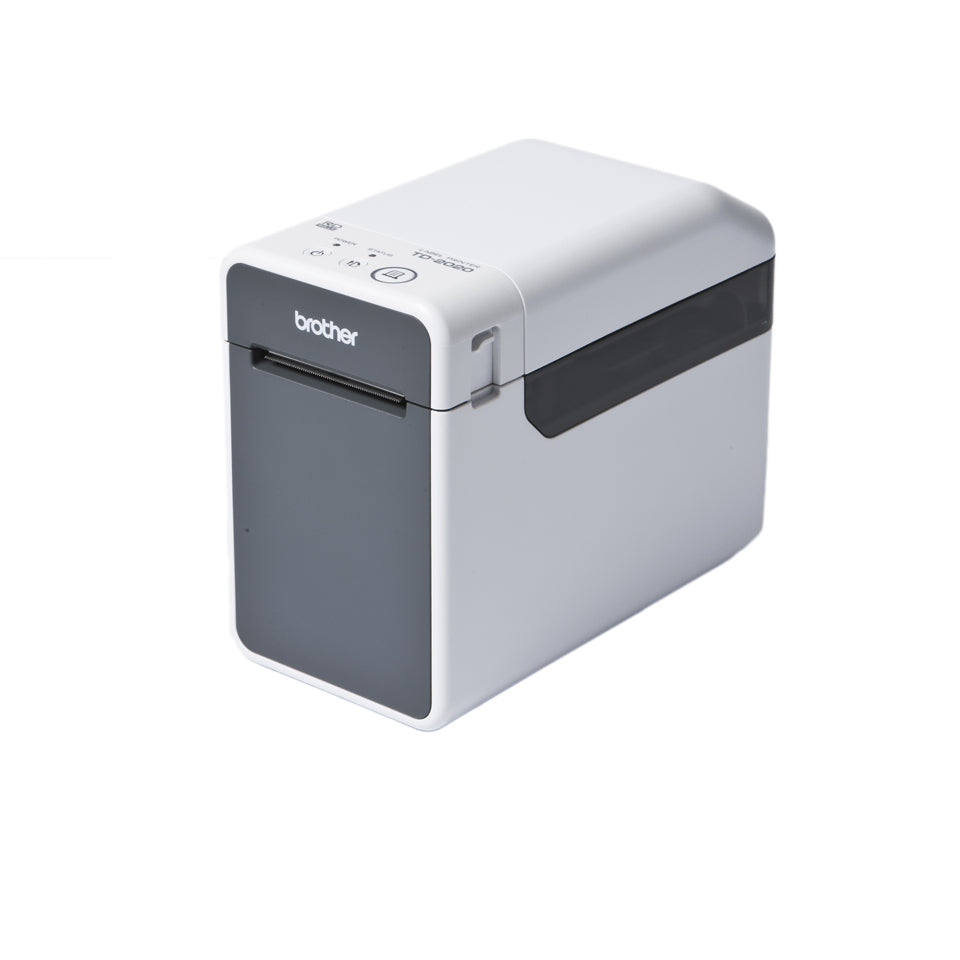

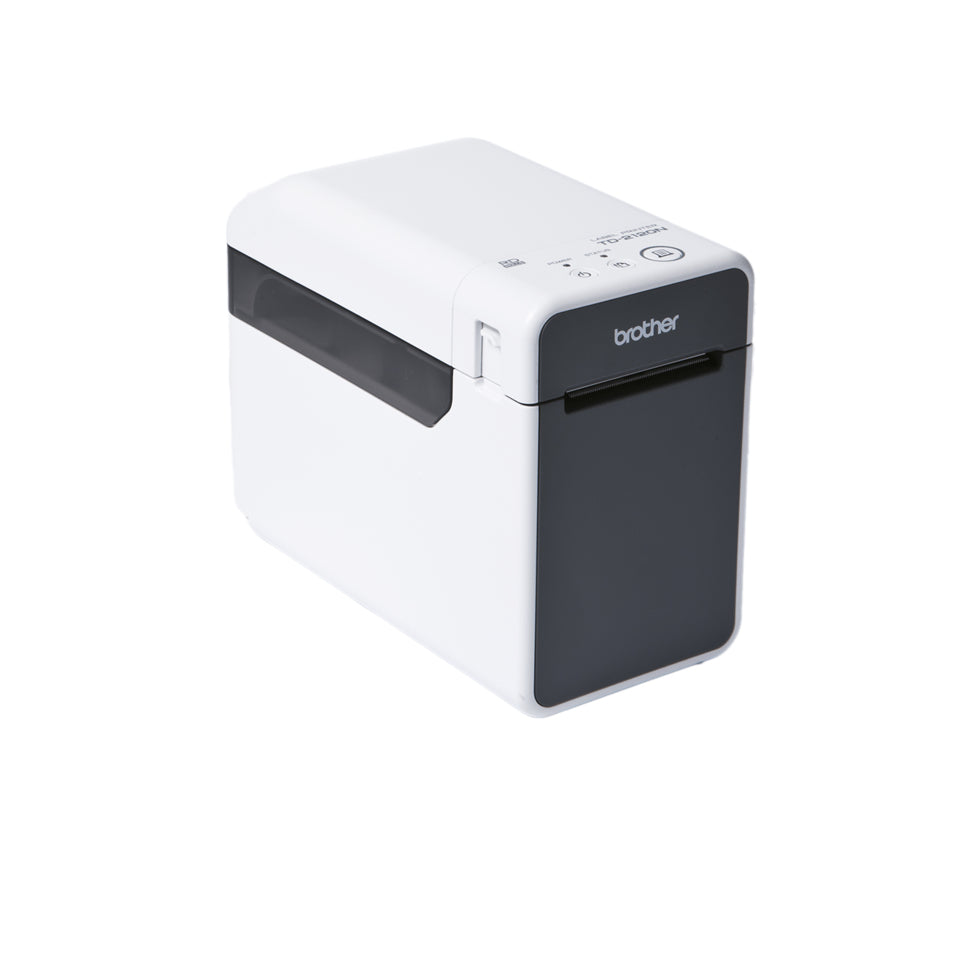

TD-2125NWB Professional Bluetooth, Wireless Desktop Label Printer
Designed for use on any retail, medical or other workspace, the TD-2125NWB is among the most compact and fastest 56mm wide powered desktop thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 152mm/second. Also prints tags and receipts for kiosk and POS applications. The wide range of connectivity options, including USB, WiFi and Bluetooth, make the TD-2125NWB a truly versatile solution. Print where you want, without the need for unnecessary cables, or setup and configure with a smartphone or tablet using the available apps.
An innovative drop-in roll with a spindle-less design helps make loading easy with various sized media. Windows Server® 2012/2012R2/2016/2019/2022 and Windows® 8.1/10/11 drivers, (ZPL II® compatibility,) and SDK's for iOS® and Android® helps with integration into existing retail solutions.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 152.4 mm/sec
- Maximum printing width: 56 mm
- Maximum print length: 1 m
Paper handling
- Maximum label width: 63 mm
- Maximum roll diameter: 127 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11b,802.11g,Wi-Fi 4 (802.11n)
- Bluetooth: Yes
- Bluetooth version: 5.2
- Bluetooth profiles: HCRP,OPP,SSP
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Performance
- Page description languages: CPCL-native,ESC P
- Internal memory: 256 MB
- Flash memory: 64 MB
- Built-in barcodes: CODABAR (NW-7),Code 39,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked,GS1 DataBar Limited,GS1 DataBar Omnidirectional,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Truncated,ITF,MaxiCode,PDF
- Security algorithms: 64-bit WEP,128-bit WEP,EAP-FAST,EAP-PEAP,EAP-TLS,EAP-TTLS,SNMPv3,SSL/TLS,WPA-PSK,WPA2-PSK,WPA3-EAP
Design
- Product colour: Black,White
- Built-in display: No
Power
- External power adapter: Yes
System requirements
- Mobile operating systems supported: Android 10,Android 10.0,Android 11.0,Android 12.0,Android 5.0,Android 5.1,Android 6.0,Android 7.0,Android 7.1,Android 7.1.2,Android 8.0,Android 8.1,Android 9.0,iOS 10.0,iOS 11.0,iOS 11.4,iOS 12,iOS 13,iOS 13.4,iOS 14,iOS 14.5,iOS 15,iOS 9.0,iOS 9.1,iOS 9.
- Server operating systems supported: Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022
- Windows operating systems supported: Windows 10,Windows 11,Windows 8,Windows 8.1
Weight & dimensions
- Width: 181 mm
- Depth: 226 mm
- Height: 283 mm
- Weight: 2121 g
Packaging data
- Package weight: 2833 g
Packaging content
- Cables included: USB
- AC adapter included: Yes
- Quick start guide: Yes
- Manual: Yes
Logistics data
- Pallet gross height: 183 mm
- Pallet gross weight: 327600 g
- Master (outer) cases per pallet: 36 pc(s)
- Master (outer) cases per pallet layer: 6 pc(s)
- Layers per pallet: 6 pc(s)
- Products per pallet: 108 pc(s)
Technical details
- Pallet type: 1200 x 1000 mm
Other features
- Country of origin: China
- Languages support: Multi
- Networking features: 10/100BASE-TX
- Number of languages: 11
