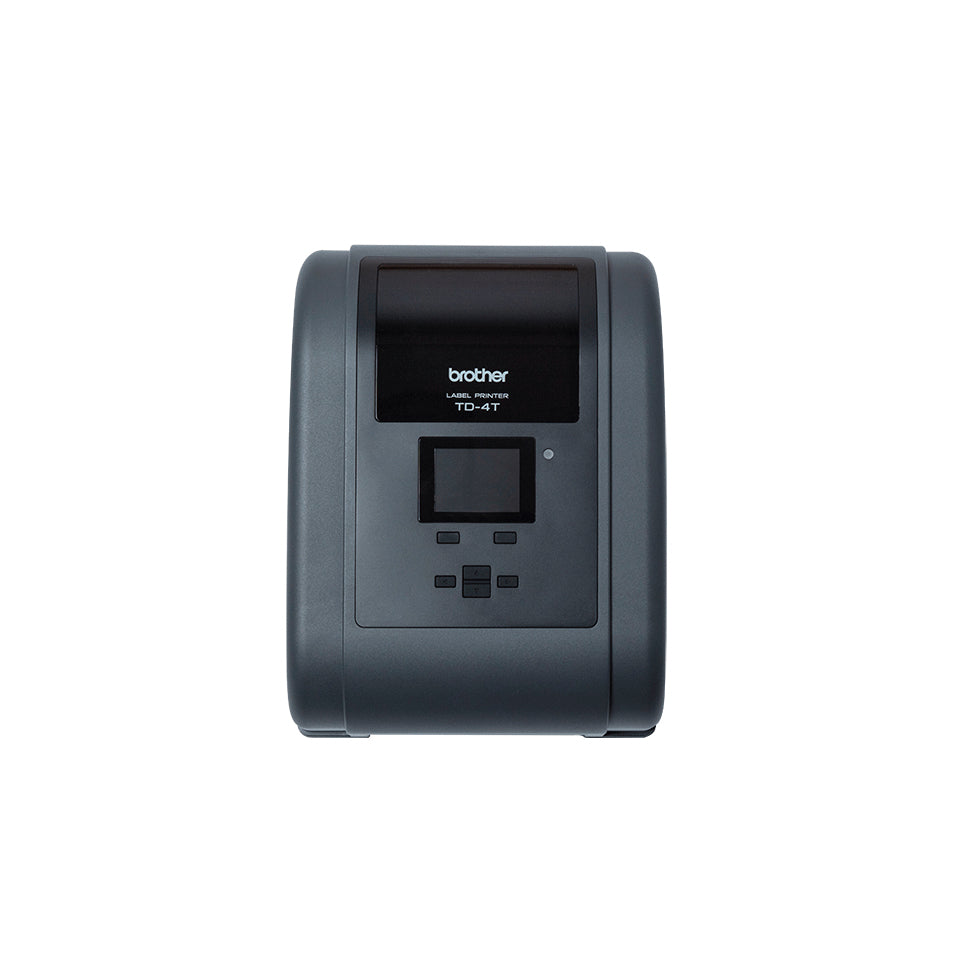

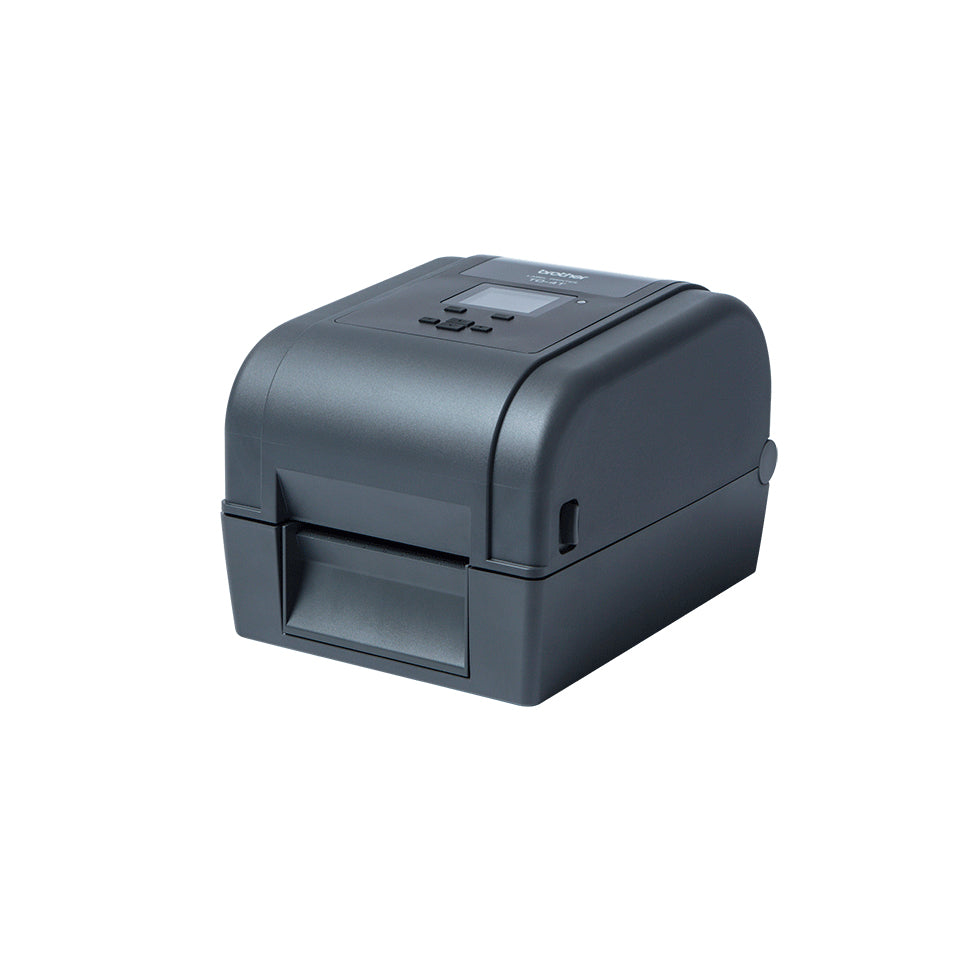

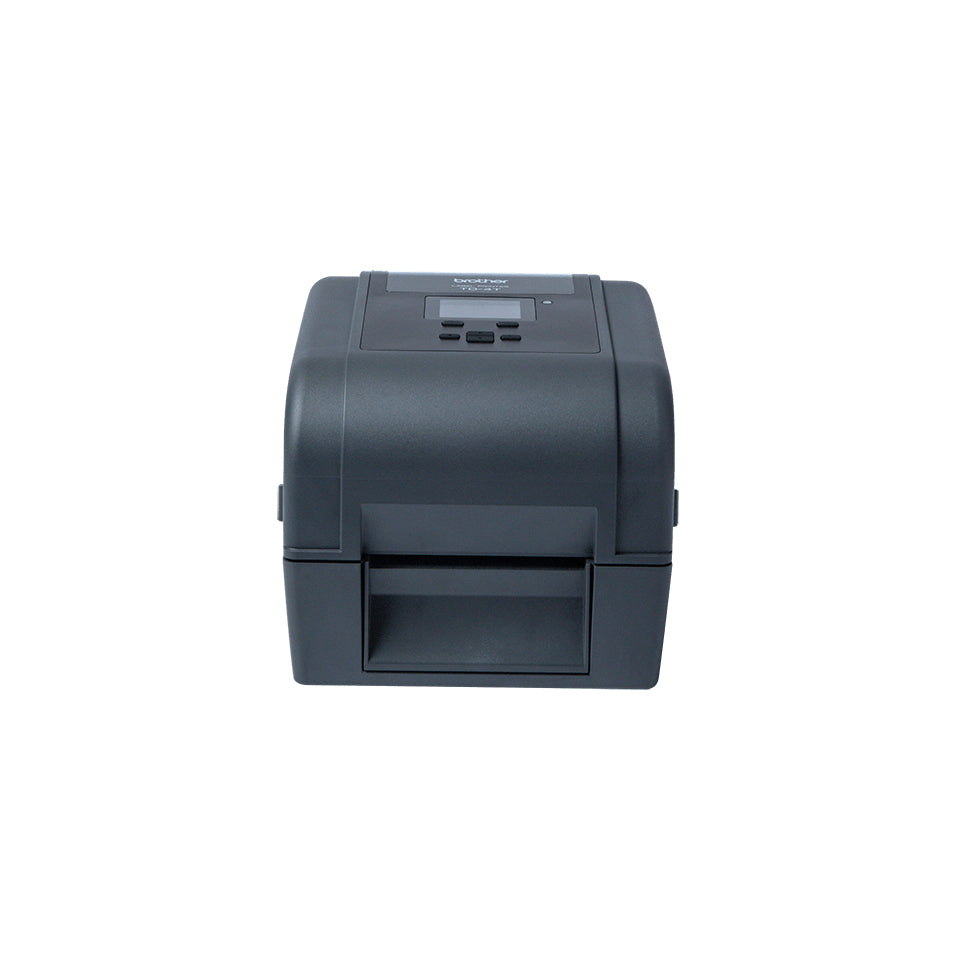

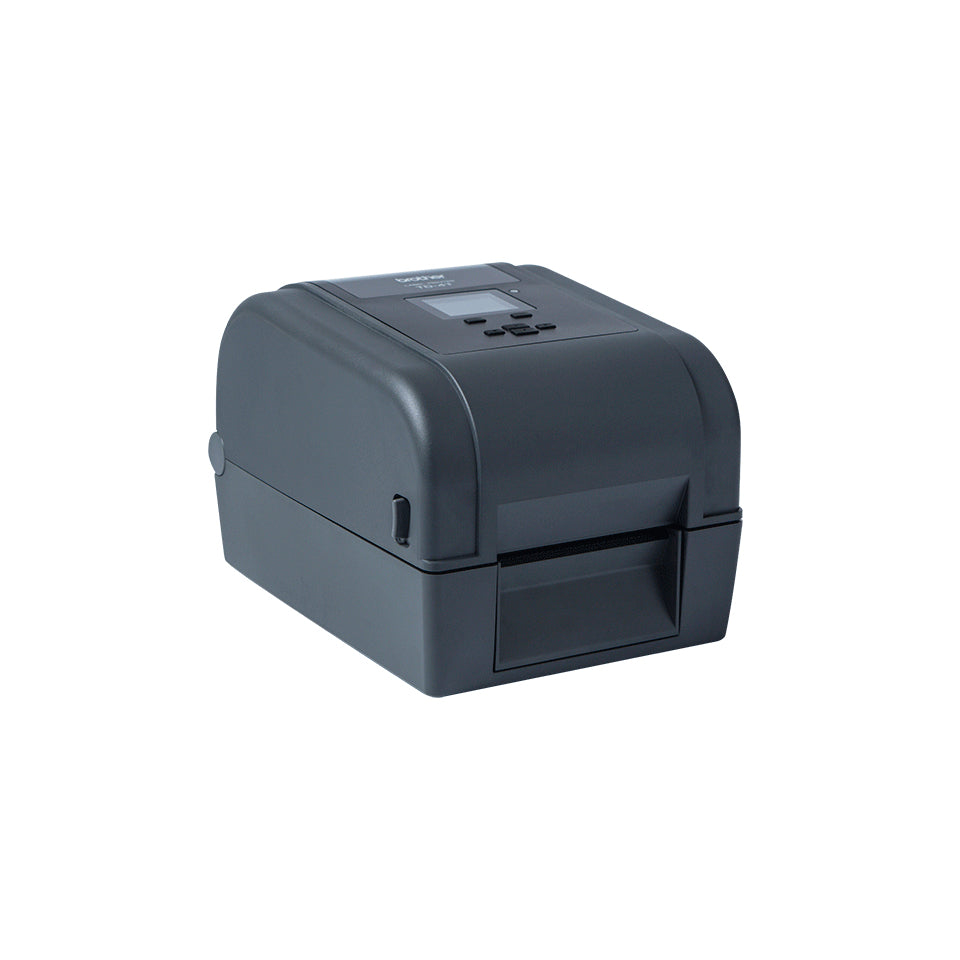

The TD-4750TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.
Ultimate productivity
Experience high-performance, thermal desktop printing up to 4" in width for ultimate productivity. The TD-4750TNWB label, receipt and wristband printer offers fast print speeds of up to 6 inches per/second and minimises downtime with 300 metre ribbons, meaning less ribbon changes.
Easy to use
The colour LCD ensures ease-of-use and the supported printer command languages and Software Development Kits make integration equally as easy.
Connectivity to suit your requirements
With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4750TNWB will have no problems connecting to your existing equipment and infrastructure.
Additional connectivity includes WiFi and Bluetooth.
High quality thermal transfer printing
This 4" desktop printer offers 300 dpi for crisp, easy-to-read text and barcodes, time after time, to meet the needs of your demanding workflow.
Customisation with optional accessories
The TD-4750TNWB offers optional accessories including a label cutter, automatic label peeler and external roll holder to further meet your requirements and increase your efficiency.
Printing
- Print technology: Direct thermal / thermal transfer
- Colour: No
- Maximum resolution: 300 x 300 DPI
- Print speed: 152 mm/sec
- Maximum printing width: 105 mm
- Maximum print length: 11.43 m
Paper handling
- Maximum label width: 112 mm
- Maximum roll diameter: 127 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
- Bluetooth: Yes
- Bluetooth version: 4.2
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Performance
- Internal memory: 128 MB
- Flash memory: 128 MB
- Built-in barcodes: AZTECCODE,CODABAR (NW-7),Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Code-128 Codabar Library,EAN128,EAN13,EAN8,GS1 DataBar,ITF-14,Interleaved 2/5,MaxiCode,MicroPDF417,PDF417,POSTNET,QR Code,UPC-A,UPC-E
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Display diagonal: 2.3 "
- Colour display: Yes
System requirements
- Windows operating systems supported: Windows 10,Windows 7,Windows 8,Windows 8.1
- Linux operating systems supported: Yes
- Mac operating systems supported: Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
- Server operating systems supported: Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Operational conditions
- Operating relative humidity (H-H): 5 - 40 %
- Storage relative humidity (H-H): 25 - 85 %
- Operating temperature (T-T): -40 - 60 °C
- Storage temperature (T-T): 10 - 90 °C
Weight & dimensions
- Width: 300 mm
- Depth: 440 mm
- Height: 275 mm
- Weight: 3798 g
Packaging data
- Package weight: 4770 g
Packaging content
- Cables included: AC,USB
- Bundled software: Bartender Ultra Lite Edition
- Quick start guide: Yes
- AC adapter included: Yes
- Software development kit (SDK): Yes
Logistics data
- Harmonized System (HS) code: 84433210
- Pallet gross height: 152.5 mm
- Pallet gross weight: 163200 g
- Master (outer) cases per pallet: 30 pc(s)
- Master (outer) cases per pallet layer: 6 pc(s)
- Layers per pallet: 5 pc(s)
- Products per pallet: 30 pc(s)
Technical details
- Sustainability certificates: ENERGY STAR
- Pallet type: 800 x 1200 mm
Other features
- Spare part retention: 5 year(s)
- Country of origin: Taiwan
- Languages support: DAN,DEU,DUT,ENG,ESP,FIN,FRE,ITA,NOR,POR,SLV
