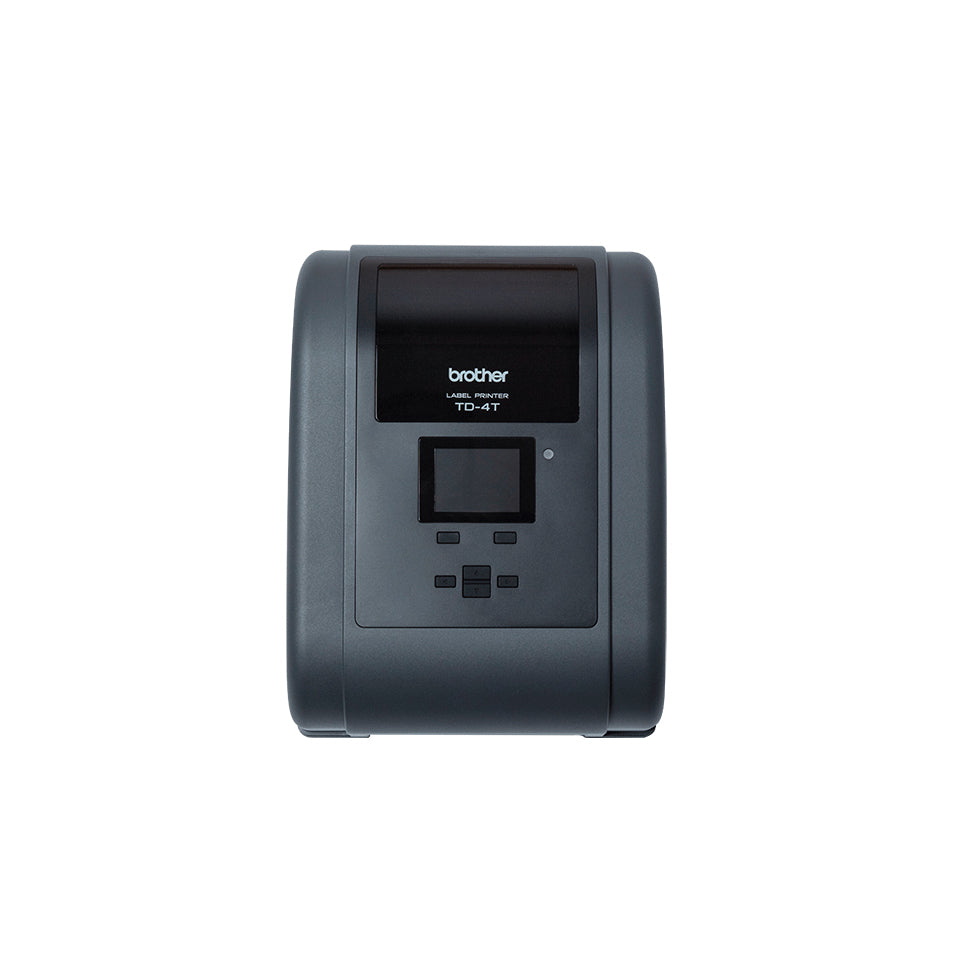

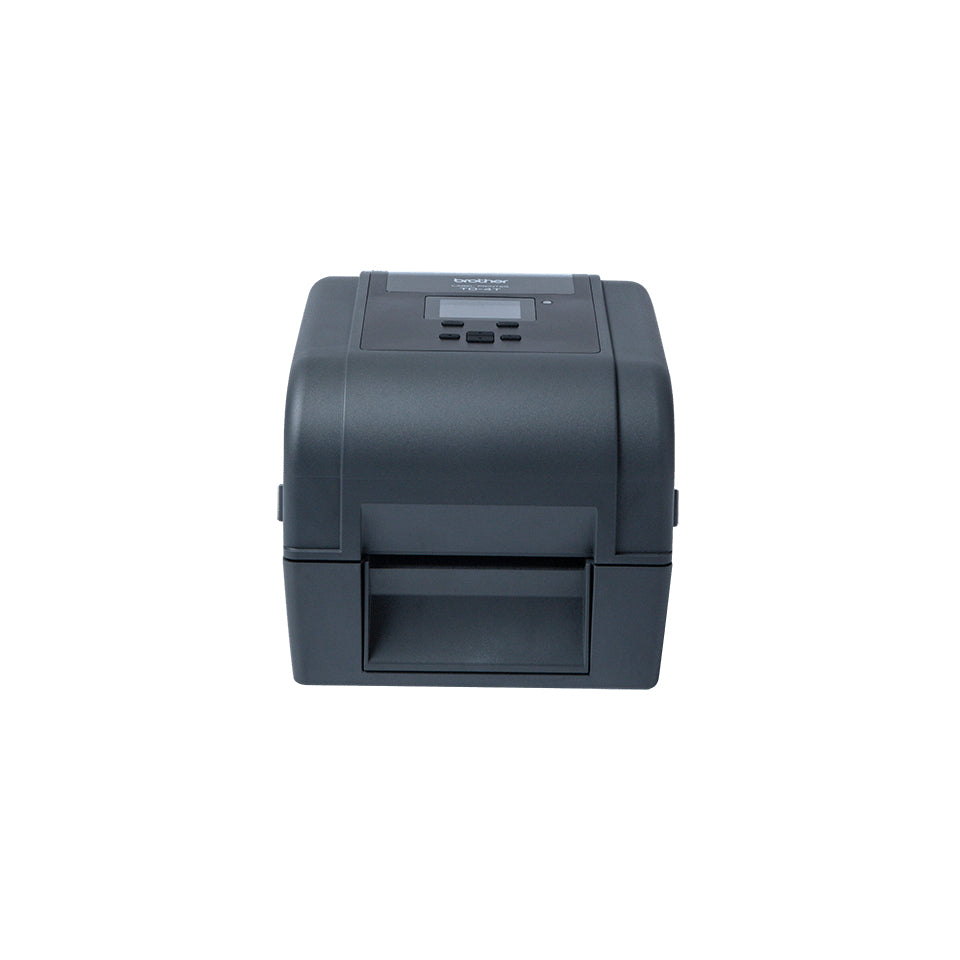

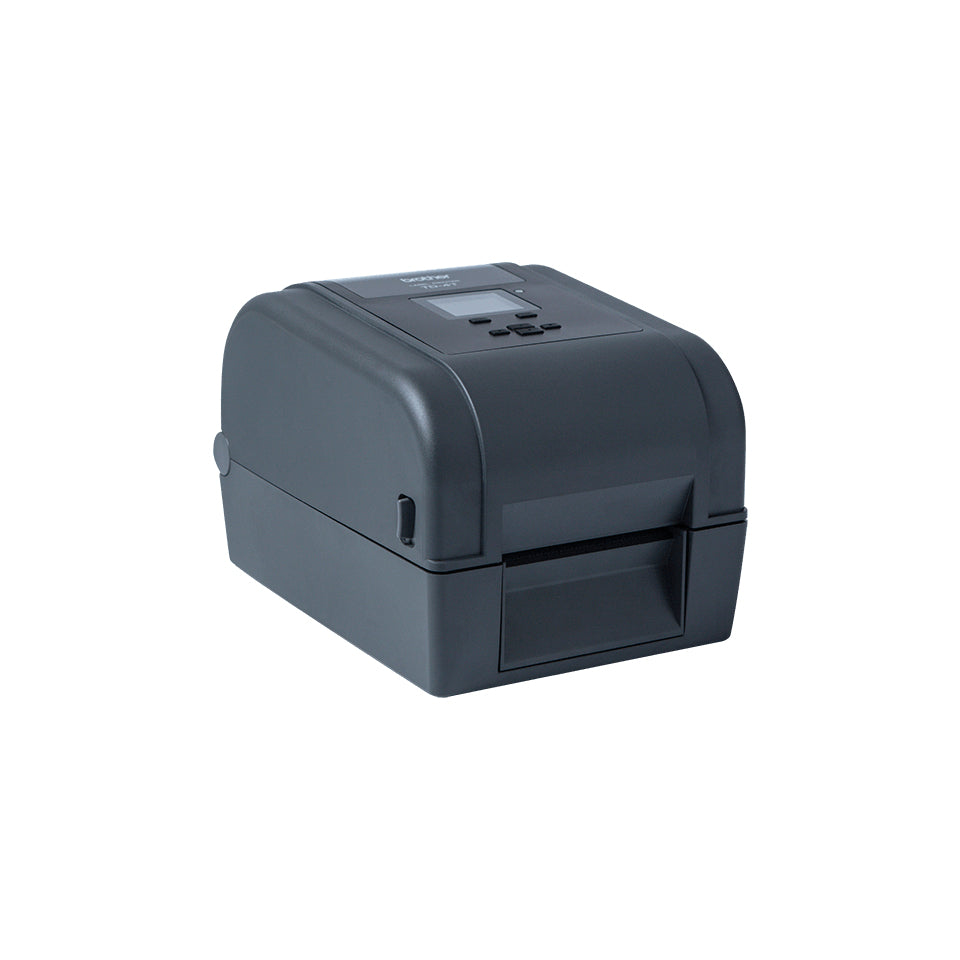

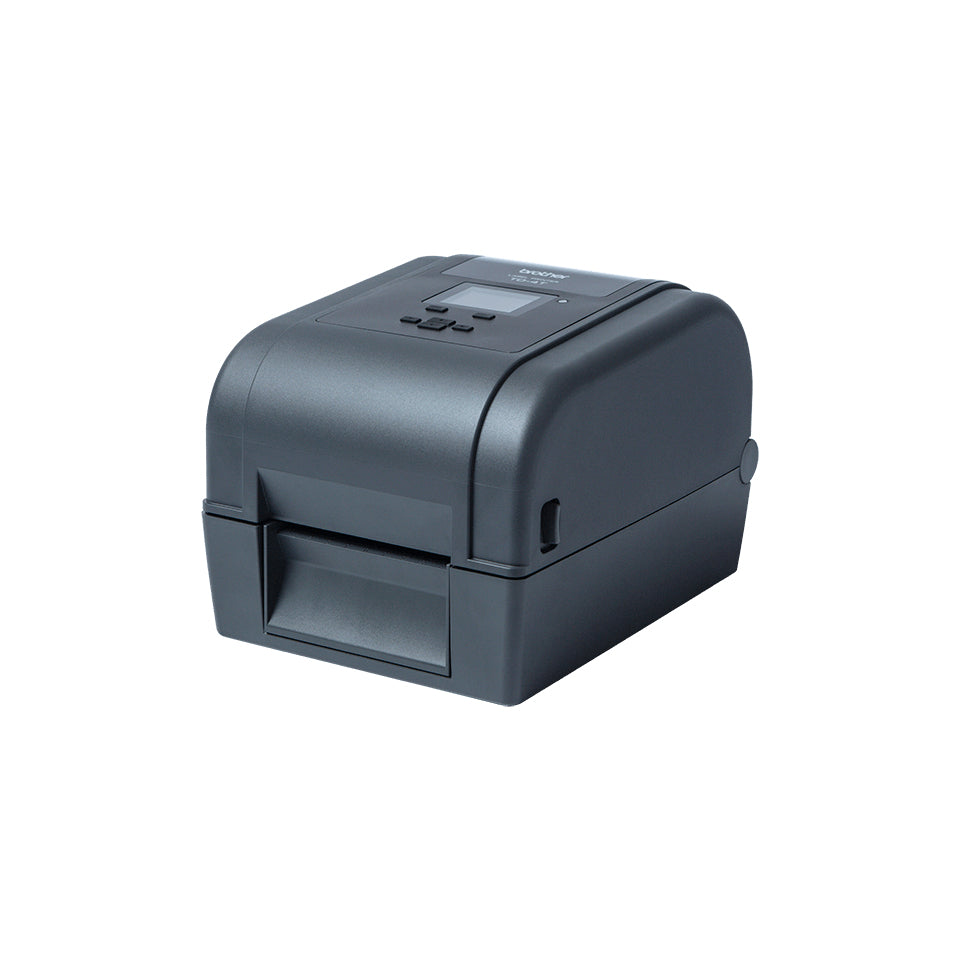

The TD-4650TNWBR versatile desktop printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with its industry standard embedded printer commands. This desktop printer also offers RFID capabilities for identification, tracking and security.
Printing
- Print technology: Direct thermal / Thermal transfer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 203.2 mm/sec
- Maximum printing width: 108 mm
- Maximum print length: 25.4 m
Paper handling
- Maximum roll diameter: 127 mm
- Maximum label width: 112 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
- Bluetooth: Yes
- Bluetooth version: 4.2
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Performance
- Internal memory: 128 MB
- Flash memory: 128 MB
- Built-in barcodes: AZTECCODE,CODABAR (NW-7),Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Code-128 Codabar Library,EAN128,EAN13,EAN8,GS1 DataBar,ITF-14,Interleaved 2/5,MaxiCode,MicroPDF417,PDF417,POSTNET,QR Code,UPC-A,UPC-E
- Built-in RFID module: Yes
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Display diagonal: 2.3 "
- Colour display: Yes
- Control type: Buttons
System requirements
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
- Windows operating systems supported: Windows 10,Windows 7,Windows 8,Windows 8.1
- Mac operating systems supported: Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Operational conditions
- Operating relative humidity (H-H): 5 - 40 %
- Storage relative humidity (H-H): 25 - 85 %
- Storage temperature (T-T): 10 - 90 °C
- Operating temperature (T-T): -40 - 60 °C
Weight & dimensions
- Width: 300 mm
- Depth: 440 mm
- Height: 275 mm
- Weight: 3828 g
Packaging data
- Package weight: 4800 g
Packaging content
- Cables included: AC,USB
- Software development kit (SDK): Yes
- Quick start guide: Yes
- AC adapter included: Yes
- Bundled software: Bartender Ultra Lite Edition
Logistics data
- Harmonized System (HS) code: 84433210
- Pallet gross height: 152.5 mm
- Pallet gross weight: 163200 g
- Master (outer) cases per pallet: 30 pc(s)
- Master (outer) cases per pallet layer: 6 pc(s)
- Layers per pallet: 5 pc(s)
- Products per pallet: 30 pc(s)
Technical details
- Sustainability certificates: ENERGY STAR
- Pallet type: 800 x 1200 mm
Other features
- Country of origin: Taiwan
- Languages support: DAN,DEU,DUT,ENG,ESP,FIN,FRE,ITA,NOR,POR,SLV
- Spare part retention: 5 year(s)
