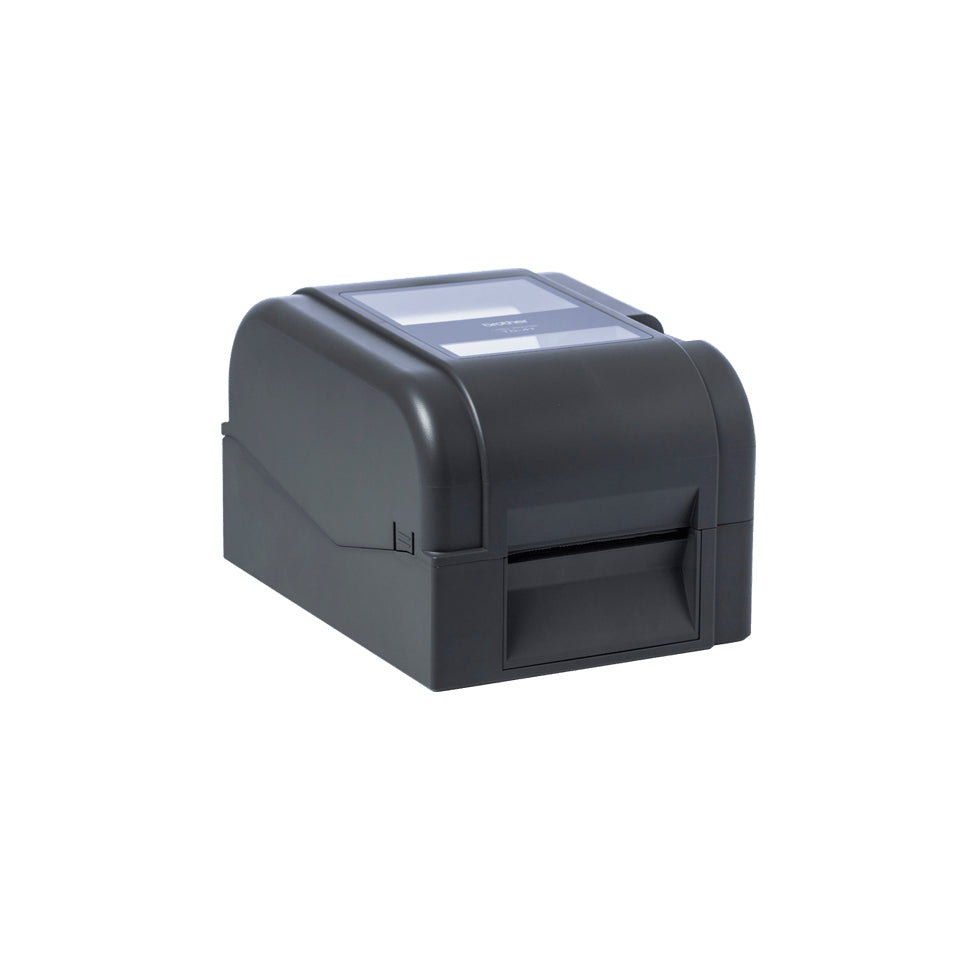

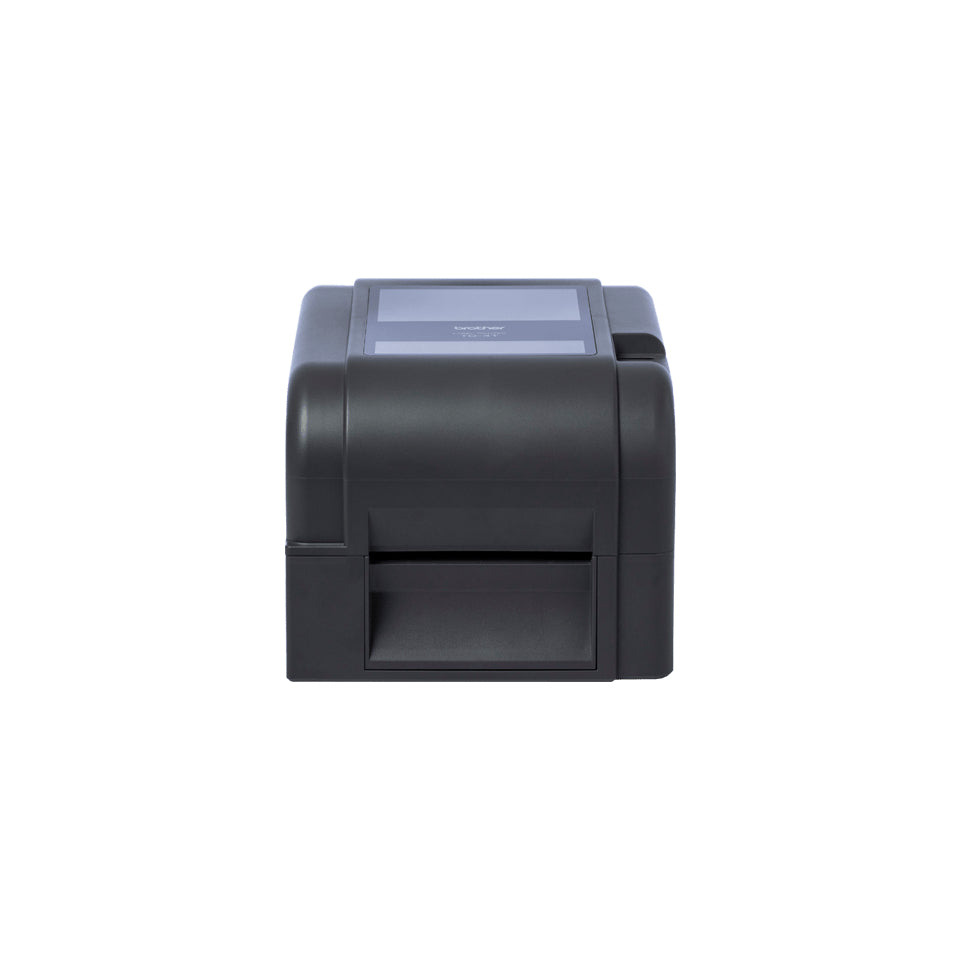

The TD-4520TN creates high resolution labels that last. Thermal transfer technology means labels are especially durable, making them suitable for a wide range of tasks in sectors like transport and logistics, retail, healthcare and food traceability. Operation is easy with BarTender and SAP compatibility*, and auto media configuration delivers better usability. For a more cost-efficient print option, direct thermal technology is built-in too, letting you print high-quality receipts, shipping labels and tickets.
Printing
- Print technology: Direct thermal / Thermal transfer
- Colour: No
- Maximum resolution: 300 x 300 DPI
- Print speed: 127 mm/sec
- Maximum print height: 105 mm
- Maximum print length: 11.43 m
Paper handling
- Maximum roll diameter: 127 mm
- Maximum label width: 112 mm
- Core diameter: 25.4 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- Bluetooth: No
- USB port: Yes
- USB 2.0 ports quantity: 2
- RS-232 ports: 1
Performance
- Page description languages: DPL,EPL,ZPL,ZPL II
- Internal memory: 64 MB
- Flash memory: 128 MB
- Built-in barcodes: AZTECCODE,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 49,Code 93,EAN128,EAN13,EAN8,GS1 DataBar,ITF-14,Interleaved 2/5,MaxiCode,MicroPDF417,PDF417,POSTNET,QR Code,UPC-A,UPC-E
- Number of fonts: 8
Design
- Product colour: Black
- Built-in display: No
- Display: No
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- AC adapter output current: 2 A
System requirements
- Windows operating systems supported: Windows 10,Windows 7,Windows 8,Windows 8.1
- Linux operating systems supported: Yes
- Mac operating systems supported: Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave
- Server operating systems supported: Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Operational conditions
- Operating relative humidity (H-H): 5 - 40 %
- Storage relative humidity (H-H): 25 - 85 %
- Operating temperature (T-T): 10 - 90 °C
- Storage temperature (T-T): -40 - 60 °C
Weight & dimensions
- Width: 275 mm
- Depth: 405 mm
- Height: 245 mm
- Weight: 3148 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package weight: 3927 g
Packaging content
- Cables included: AC,USB
- Starter roll included: Yes
- Software development kit (SDK): Yes
- Warranty card: Yes
- Quick start guide: Yes
- AC adapter included: Yes
Logistics data
- Harmonized System (HS) code: 84433210
- Pallet gross height: 162 mm
- Pallet gross weight: 211920 g
- Master (outer) cases per pallet: 48 pc(s)
- Master (outer) cases per pallet layer: 8 pc(s)
- Layers per pallet: 6 pc(s)
- Products per pallet: 48 pc(s)
Technical details
- Pallet type: 800 x 1200 mm
Other features
- Languages support: DAN,DEU,DUT,ENG,ESP,FIN,FRE,ITA,NOR,POR,SWE
- Spare part retention: 5 year(s)
- LED indicators: Yes
- Country of origin: China
- Number of languages: 11
