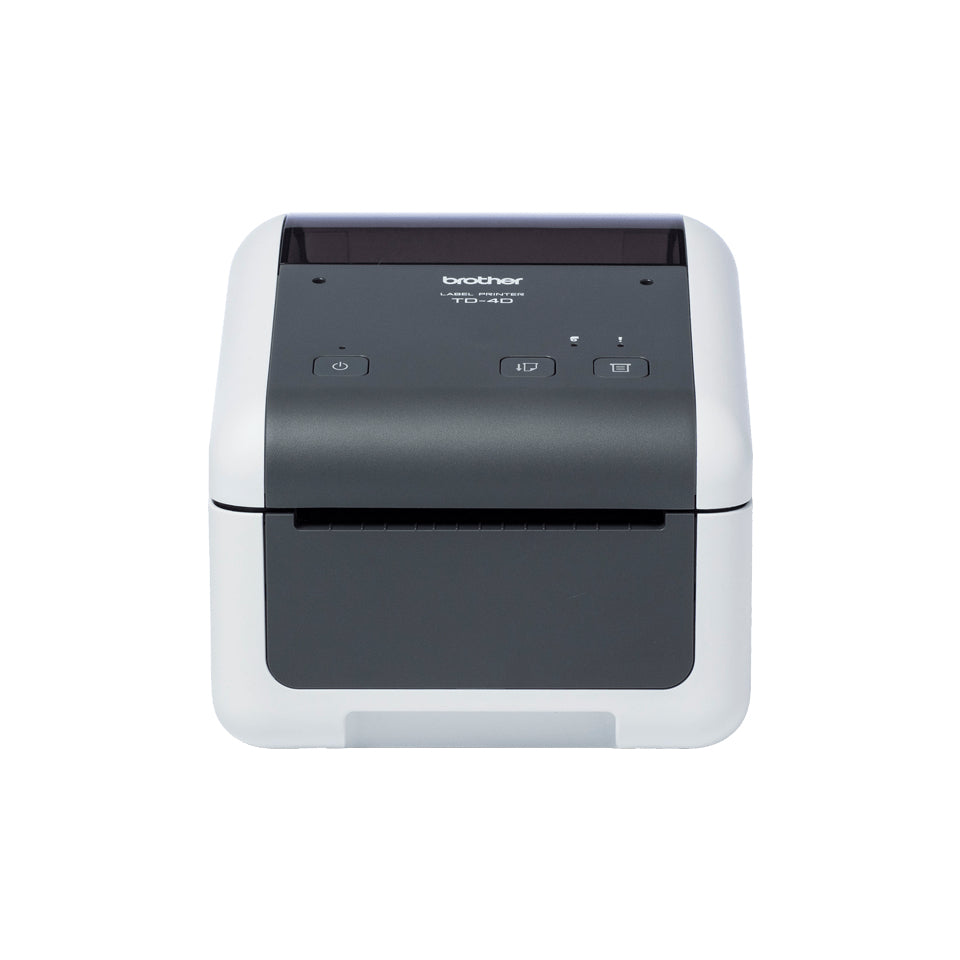

Using direct thermal print technology, accurate images with crisp definition is created. Great for printing high-volume, temporary labels with barcodes. The length of media is automatically calculated with the media calibration function. Removing the need of manually entering label dimensions. With network connectivity, data is quickly shared with different departments. Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 300 x 300 DPI
- Print speed: 203 mm/sec
- Print speed: 6 lpm
- Minimum print length: 17 mm
- Mirror printing: Yes
- Text style: Bold,Horizontal lines,Invert,Italic,Normal,Shadow,Shadow light,Surround
- Maximum print length: 3 m
Paper handling
- Maximum roll diameter: 127 mm
- Maximum label width: 118 mm
- Core diameter: 12.7 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- Bluetooth: No
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Performance
- Page description languages: CPCL-native,DPL,EPL2,ESC P,Raster_P,ZPL II
- Internal memory: 256 MB
- Flash memory: 64 MB
- Built-in barcodes: CODABAR (NW-7),Code 39,Code 93,Code-128 Codabar Library,EAN13,EAN8,GS1 DataBar,ITF,POSTNET,UPC-A,UPC-E
- Number of fonts: 6
- Font styles: Brougham,Brussels,Helsinki,Letter Gothic,San Diego
Design
- Product colour: Grey,White
- Built-in display: No
- Display: No
Power
- Auto power off: Yes
System requirements
- Windows operating systems supported: Windows 10,Windows 7,Windows 8,Windows 8.1
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
- Mobile operating systems supported: Android 4.1,Android 4.2,Android 4.2.1,Android 4.2.2,Android 4.3,Android 4.4,Android 5.0,Android 5.1,Android 6.0,Android 7.0,Android 7.1,Android 7.1.2,Android 8.0,Android 9.0,iOS 10.0,iOS 11.0,iOS 12,iOS 8.0,iOS 8.1,iOS 8.2,iOS 8.3,iOS 8.4,iOS 9.0,iOS 9.1,
Operational conditions
- Operating relative humidity (H-H): 5 - 40 %
- Storage relative humidity (H-H): 20 - 85 %
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 10 - 90 °C
Weight & dimensions
- Width: 265 mm
- Depth: 335 mm
- Height: 258 mm
- Weight: 3041 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package weight: 3965 g
Packaging content
- Cables included: AC,USB
- Quick start guide: Yes
- Warranty card: Yes
- Software development kit (SDK): Yes
- Starter roll included: Yes
- AC adapter included: Yes
Logistics data
- Harmonized System (HS) code: 84433210
- Pallet gross height: 144 mm
- Pallet gross weight: 176400 g
- Master (outer) cases per pallet: 40 pc(s)
- Master (outer) cases per pallet layer: 8 pc(s)
- Layers per pallet: 5 pc(s)
- Products per pallet: 40 pc(s)
Technical details
- Pallet type: 800 x 1200 mm
Other features
- Country of origin: China
- LED indicators: Error,Power,Status
- Date & time printing: Yes
- Networking features: 10/100BASE-TX
- Languages support: CHI (SIMPL),CZE,DAN,DEU,DUT,ENG,ESP,FIN,FRE,HUN,ITA,JPN,NOR,POL,POR,RUS,SWE,TUR
- Number of languages: 18
