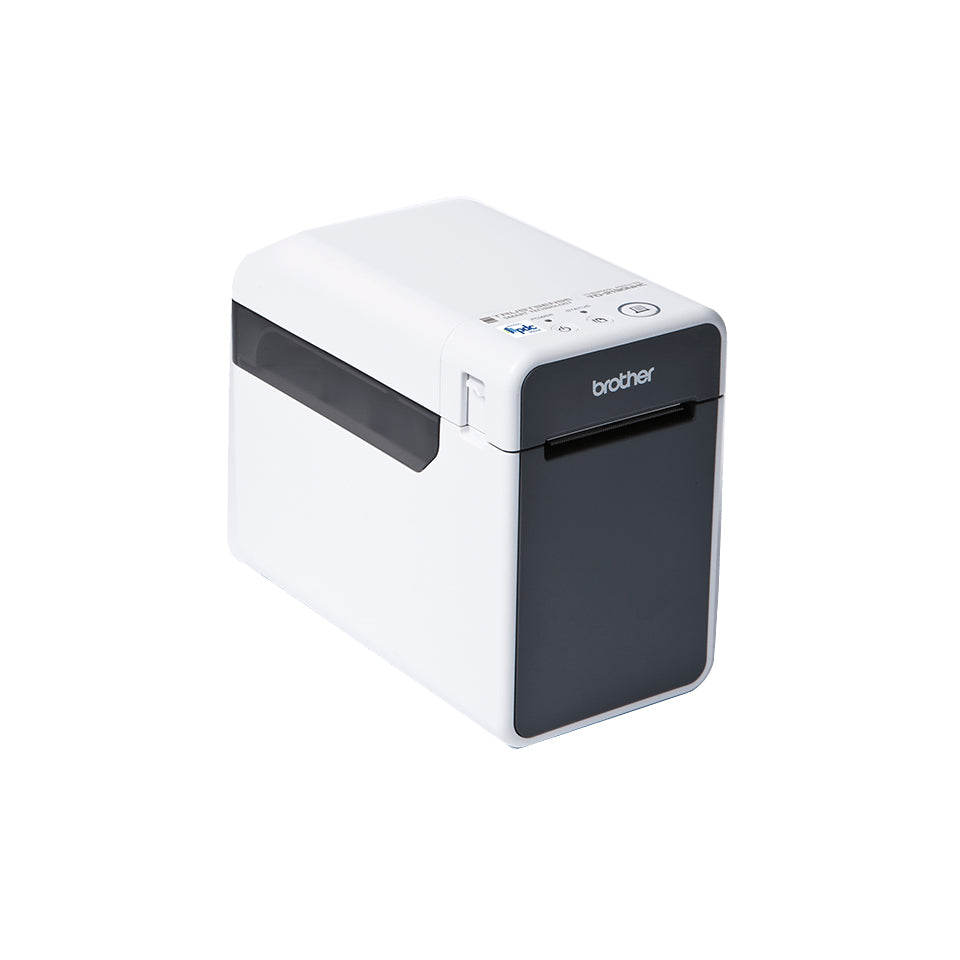

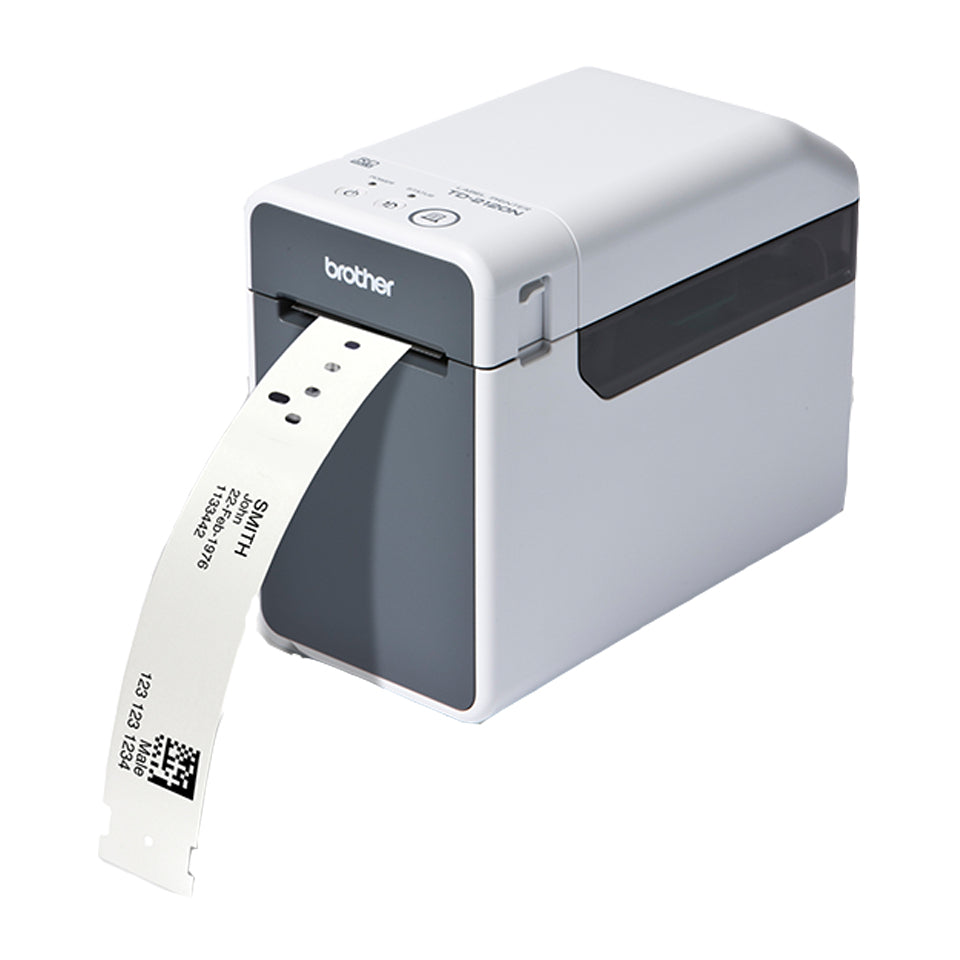

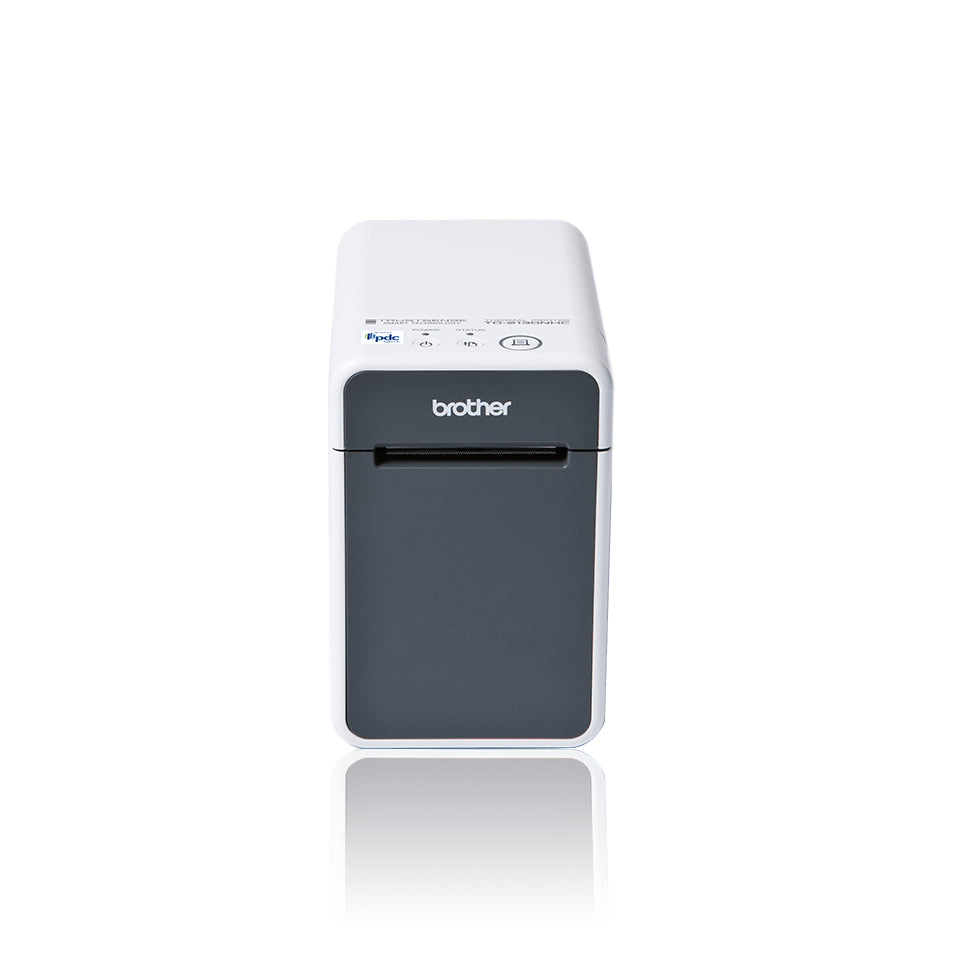

Versatile and portable patient wristband and label printer
Working in partnership with PDC Healthcare, we have a wristband and label printing solution created specifically for the Healthcare industry. Using Brother’s TrustSense technology the solution ensures PDC’s media (wristbands & labels) works seamlessly with the TD-2130NHC for stress free printing.
Versatile and transportable, it provides on-demand printing of the most in-demand media in Healthcare.
Key benefits:
Improves patient safety
– Helps protect patients, while providing peace of mind and efficiency to healthcare professionals. The TD-2130NHC prints crisp and accurately imaged wristbands and labels, meeting the NHS ISB 1077 standard).
Flexible and easy to use
– Media is easy to load, and Brother's TrustSense smart technology automatically detects the type of media and calibrates to print both wristbands and labels without any special set up.
Portable
– Bluetooth or Wireless connections plus Battery power and Touch Display Unit options give the ability to print wristbands and labels at almost any point of care location.
PDC media
– the TD-2130NHC only uses TrustSense media from PDC Healthcare – a trusted leader in positive patient identification for more than 55 years.
- Direct thermal technology
- 6”/sec (152mm/sec) print speed & 300 dpi resolution
- Connect via USB, USB Host, Serial or LAN
- Options include: Bluetooth or wireless connection, Touch Display Unit and Battery power
- P-touch Template (ZPL II emulation)
- Supports PDC TrustSense label and wristband media.
Printing
- Maximum resolution: 300 x 300 DPI
- Print speed: 152 mm/sec
- Maximum print height: 56 mm
- Vertical printing: Yes
Paper handling
- Maximum label length: 1 m
- Maximum label width: 63 mm
Ports & interfaces
- Ethernet LAN: Yes
- USB port: Yes
- USB 2.0 ports quantity: 1
Performance
- Page description languages: BPL,ESC P
- Flash memory: 6 MB
- Built-in barcodes: AZTECCODE,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code-128 Codabar Library,Data Matrix,EAN128,EAN13,EAN8,GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Limited,GS1-128,ISBN-2,ISBN-5,ITF-25,MaxiCode,Micro QR Code,MicroPDF417,PDF417,POSTNET,QR Code,UPC-A,UPC-
- Number of fonts: 8
Design
- Product colour: Black,White
- Built-in display: Yes
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Auto power off: Yes
- Rechargeable: Yes
System requirements
- Server operating systems supported: Windows Server 2003,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012
- Windows operating systems supported: Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Wind
Operational conditions
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 5 - 40 °C
Weight & dimensions
- Width: 180 mm
- Depth: 285 mm
- Height: 264 mm
- Weight: 2121 g
Packaging data
- Package weight: 2833 g
Packaging content
- Cables included: USB
- Quick start guide: Yes
- AC adapter included: Yes
- Bundled software: P-touch Editor 5 BR Admin Light
Logistics data
- Harmonized System (HS) code: 84433210
- Pallet gross height: 157.5 mm
- Pallet gross weight: 202000 g
- Master (outer) cases per pallet: 20 pc(s)
- Master (outer) cases per pallet layer: 4 pc(s)
- Layers per pallet: 5 pc(s)
- Products per pallet: 60 pc(s)
Technical details
- Pallet type: 800 x 1200 mm
Other features
- Label memory: 99 label(s)
- Country of origin: China
- Spare part retention: 5 year(s)
