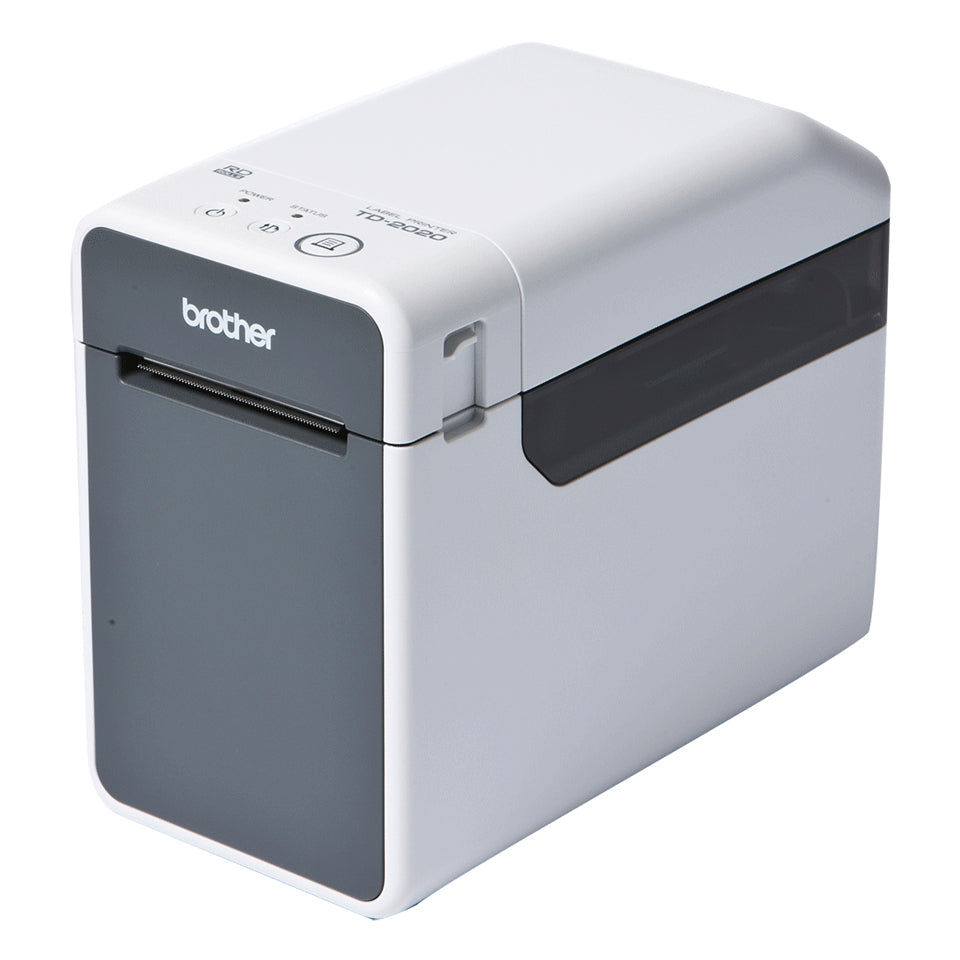

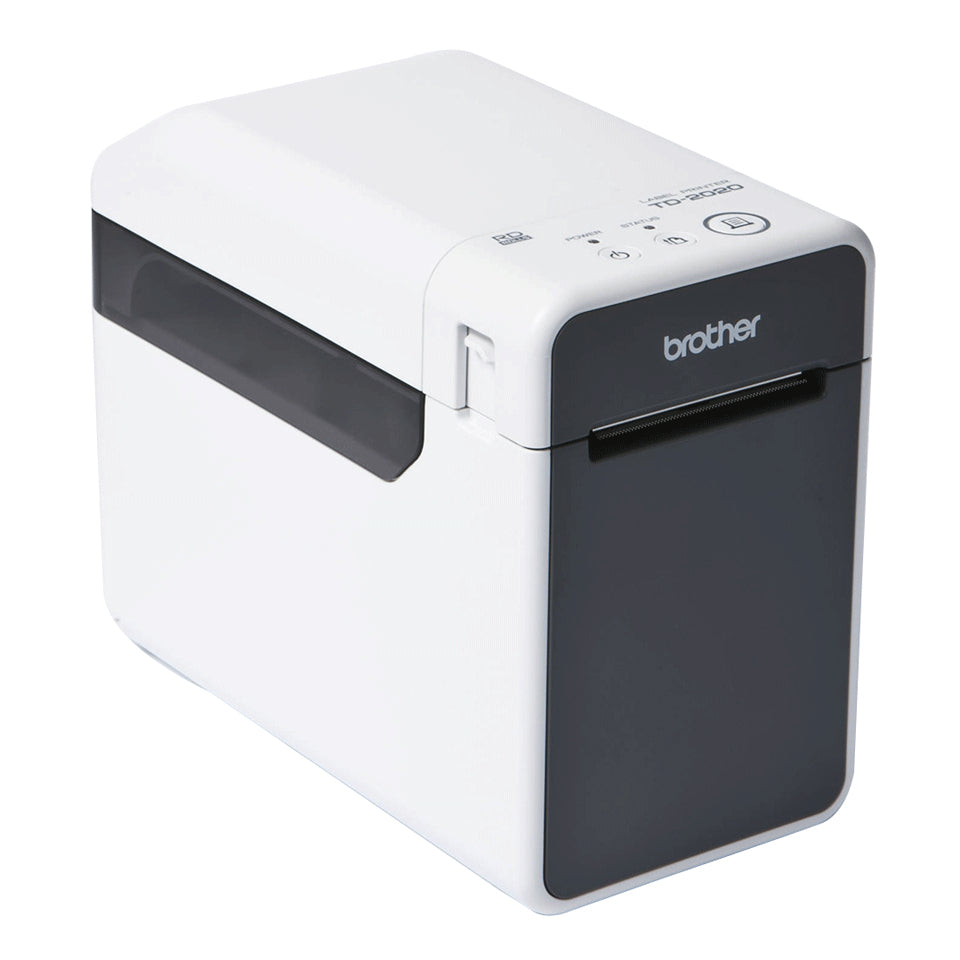

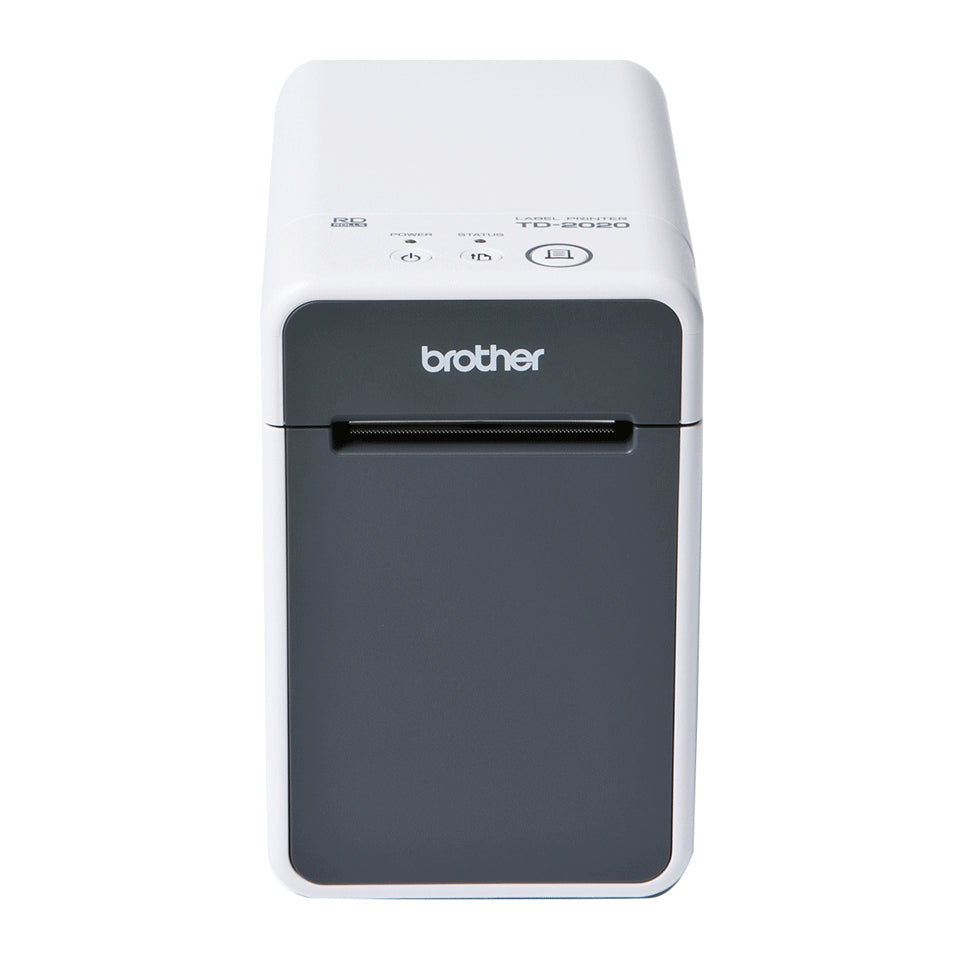

Designed for use in almost any retail or other work space, the TD-2020A is a compact and fast 56mm wide desktop thermal printer. Perfect for printing price, mark-down, product identification, returns and shelf-edge labels quickly at up to 152mm/second.
Increasing productivity and reducing costs are priorities in any workplace. When it comes to label printing, the TD-2020A combines proven desktop printer performance with new levels of efficiency to help you do more for less.
Printing
- Print technology: Direct thermal
- Maximum resolution: 203 x 203 DPI
- Print speed: 152.4 mm/sec
- Maximum printing width: 56 mm
- Maximum print height: 98.6 mm
- Minimum print length: 6 mm
Paper handling
- Autocutter: Yes
- Core diameter: 25.4 mm
- Media thickness: 0.058 - 0.279 mm
- Maximum label length: 1 m
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: No
- Wi-Fi: No
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
- Optional connectivity: Serial (RS-232),USB 2.0
Performance
- Internal memory: 6 MB
- Built-in barcodes: CODABAR (NW-7),Code 39,Code 93,Code128UCC,Datamatrix,EAN128,EAN13,EAN8,GS1-128,ITF,MSI,MaxiCode,MicroPDF417,POSTNET,QR Code,UPC-A,UPC-E
- Number of fonts: 7
- Tape cutting: Automatic
- Underline: Yes
Design
- Product colour: White
System requirements
- Windows operating systems supported: Yes
Operational conditions
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 20 - 80 %
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 181 mm
- Depth: 226 mm
- Height: 283 mm
- Weight: 2121 g
Packaging data
- Package weight: 2833 g
Packaging content
- Cables included: USB
- Drivers included: Yes
Logistics data
- Pallet gross height: 183 mm
- Pallet gross weight: 327600 g
- Master (outer) cases per pallet: 36 pc(s)
- Master (outer) cases per pallet layer: 6 pc(s)
- Layers per pallet: 6 pc(s)
- Products per pallet: 108 pc(s)
Technical details
- Pallet type: 1200 x 1000 mm
Other features
- Character sets: Abicomp,ASCII,BRASCII,ISO 8859-15,ISO Latin 1,Italic,PC437,PC850,PC858,PC860,PC861,PC863,PC865,Roman 8
- Country of origin: China
