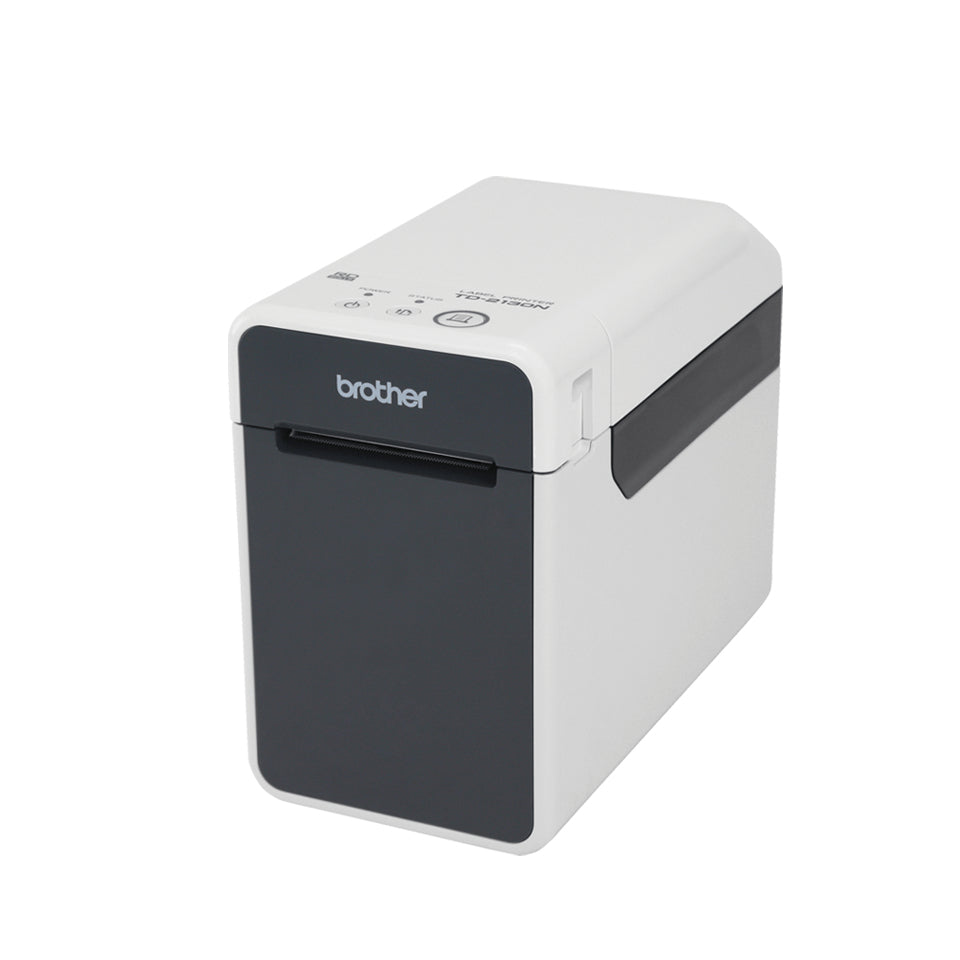

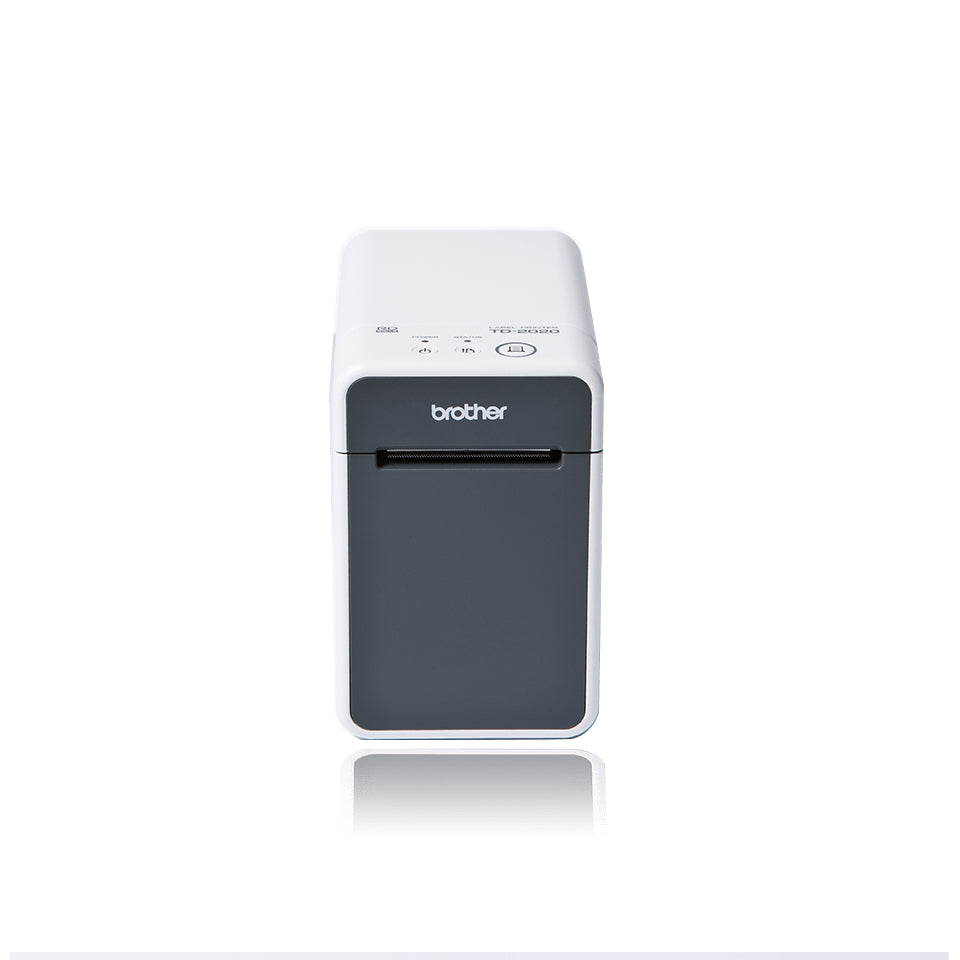

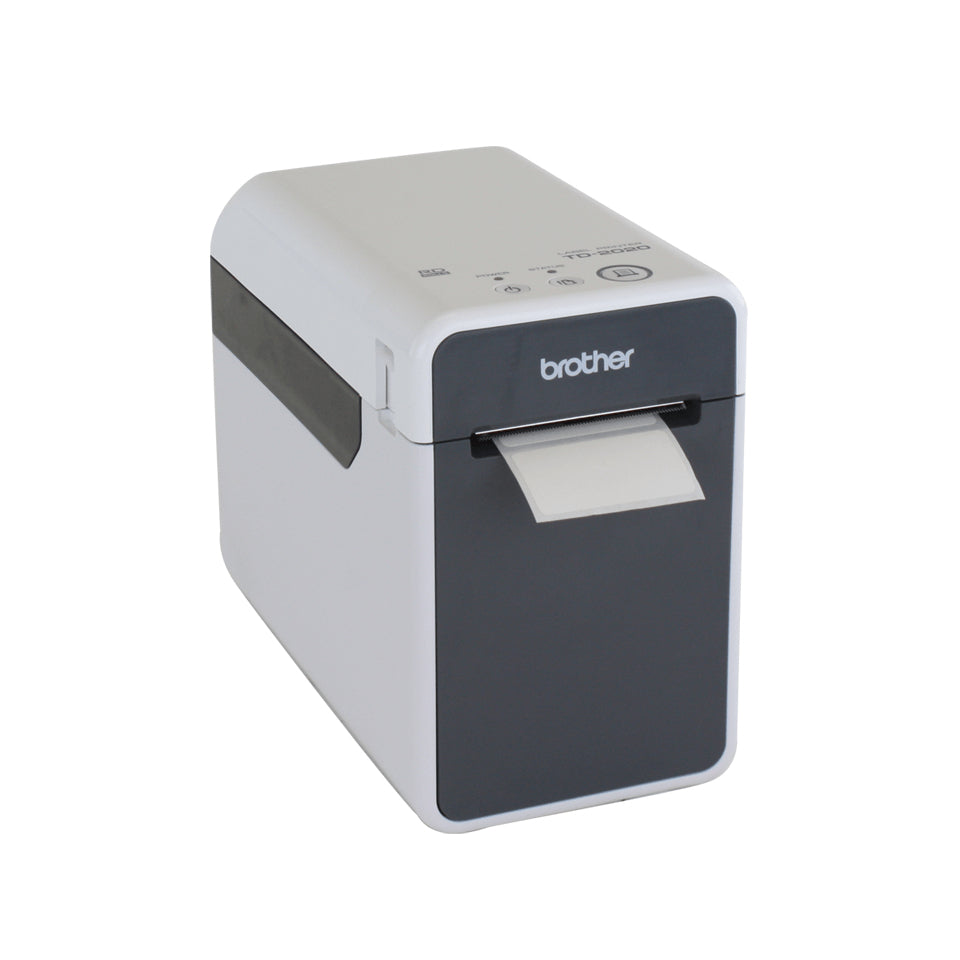

There’s nothing more powerful than having exactly the right tool for the job – which is why we’re delighted to introduce the flexible new TD-2020. This exceptional desktop labeller boasts a wealth of specialised features, including generous 5” roll size, ZPL II emulation and impressive memory – all of which make it ideally suited to warehousing, logistics, manufacturing and more.
- Up to 6ips print speed
- 203dpi print resloution
- USB & serial connectivity
- 32MB RAM, 16MB Flash
- ZPL II printer language
Printing
- Print technology: Direct thermal
- Maximum resolution: 203 x 203 DPI
- Print speed: 152.4 mm/sec
- Maximum printing width: 56 mm
- Maximum print height: 98.6 mm
Paper handling
- Autocutter: Yes
- Ribbon length: 1 m
- Maximum label length: 1 m
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: No
- Wi-Fi: No
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
- Optional connectivity: Serial (RS-232),USB 2.0
Performance
- Page description languages: ESC P
- Internal memory: 6 MB
- Flash memory: 8 MB
- Built-in barcodes: QR Code
- Number of fonts: 7
- Tape cutting: Automatic
- Underline: Yes
Design
- Product colour: White
- Built-in display: No
Power
- AC adapter output voltage: 25 V
- AC adapter output current: 6 A
System requirements
- Windows operating systems supported: Yes
- Minimum RAM: 128 MB
- Minimum storage drive space: 70 MB
Operational conditions
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 5 - 40 °C
Weight & dimensions
- Width: 285 mm
- Depth: 181 mm
- Height: 266 mm
- Weight: 2121 g
Packaging data
- Package weight: 2833 g
Packaging content
- Cables included: USB
- AC adapter included: Yes
- Drivers included: Yes
Logistics data
- Harmonized System (HS) code: 84433210
- Pallet gross height: 155 mm
- Pallet gross weight: 186000 g
- Master (outer) cases per pallet: 20 pc(s)
- Master (outer) cases per pallet layer: 4 pc(s)
- Layers per pallet: 5 pc(s)
- Products per pallet: 60 pc(s)
Technical details
- Pallet type: 800 x 1200 mm
Other features
- Character sets: Abicomp,ASCII,BRASCII,ISO 8859-15,ISO Latin 1,Italic,PC437,PC850,PC858,PC860,PC861,PC863,PC865,Roman 8
- Maximum resolution: 203 x 203 pixels
- Spare part retention: 5 year(s)
- Country of origin: China
- LED indicators: Yes
