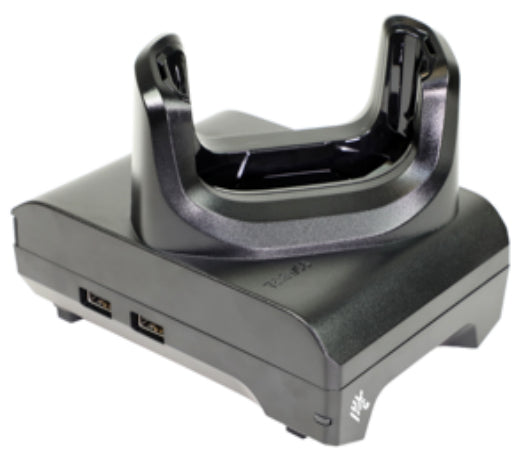

Workstation Docking Cradle

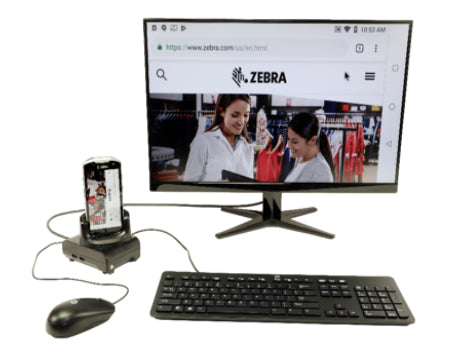

- An enhanced single-slot charging cradle allowing users to use the TC5X as a workstation or kiosk.
- Two USB ports are located on both sides of cradle. One port provides 1.5A current. The remaining three provide .5A current.
- Also includes Kensington port to secure the cradle to a desk location. Cradle can also be screwed down to desk/counter.
- Will charge TC5x only. Does not charge spare battery.
- Will charge battery in TC5x from 0-90% in as little as 2.5 hours
- Compatible with TC5x units with hand strap, Rugged Boot, or Pistol Grip Handle attached.
- Includes cradle insert/shim that requires removal when using a TC5x unit with the Rugged Boot/Exoskeleton or Pistol Grip Handle attached.
- Connects to rugged charge/communication connector on bottom of TC5x.
- TC5X may require additional drivers or updated BSP - see PMB 10207 for details.
Performance
- Basic device type: PDA
- Brand compatibility: Zebra
- Compatibility: TC5x
- Product colour: Black
- Cable lock slot type: Kensington
- Cable lock slot: Yes
Network
- Ethernet LAN: Yes
Ports & interfaces
- USB 2.0 ports quantity: 4
- Audio output: No
- HDMI: Yes
- HDMI connector type: Full-size
- Ethernet LAN (RJ-45) ports: 1
Power
- Power source type: DC
- DC output current: 1.5 A
Logistics data
- Harmonized System (HS) code: 84719000
