The SRP-F310II is a powerful 3-inch (80mm) thermal printing solution, producing high quality receipts and tickets at 180dpi and 203dpi. Featuring a robust, ergonomic front-exit design, with IP12 certification, patented Liquid-Barrier™ technology and built-in power supply, to provide the perfect under counter or space constrained printing solution. Featuring the All-In-One-Plus™ interface, built-in USB V2.0 & Ethernet + optional Serial, Parallel, Powered USB, Bluetooth or WLAN. The SRP-F310IIHi model also supports various USB peripherals, alongside web and cloud-based printing. While compatible with market-leading programming languages with an extensive range of drivers and SDKs.
SRP-F310II
3 inch POS Printer
The SRP-F310II 3-inch (80mm) thermal printer, offers a front exit, splash proof design, featuring BIXOLON’s Liquid-Barrier™ technology and built-in power supply. Producing 180dpi or 300dpi printed media at an impressive 350mm/second makes it suitable for a number of applications in Retail, Hospitality, Healthcare, Warehousing and more.
Printing
- Print technology: Direct thermal
- Type: POS printer
- Maximum resolution: 180 x 180 DPI
- Number of printable dots: 512 dot
- Print speed: 350 mm/sec
- Printing characters: 2D barcode,Barcode
Paper handling

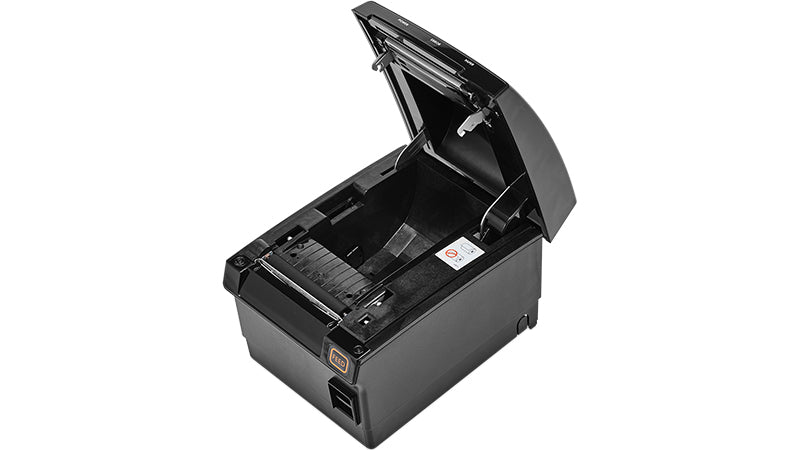

- Paper loading type: Top & front
- Printing media thickness: 0.05 - 0.08 µm
- Maximum printing width: 83 mm
- Supported paper width: 80 mm
- Maximum roll diameter: 105 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB connector: USB Type-A
- Serial interface: Yes
- Serial interface type: RJ-45
- Bluetooth: Yes
- Bluetooth version: 4.2
Network
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
Features
- Built-in barcodes: 1D,2D,Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,ITF,PDF417,QR Code,UPC-A,UPC-E
- Internal memory: 0.768 MB
- Cutter: Yes
- Autocutter durability: 3 million cuts
- Print head life: 250 km
Design
- Product colour: Black
- Built-in display: No
Power
- Power source type: DC
- AC input voltage: 24 V
- AC input frequency: 50/60 Hz
Operational conditions
- Operating relative humidity (H-H): 10 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
System requirements
- Windows operating systems supported: Yes
- Mac compatibility: Yes
- Mobile operating systems supported: Android,iOS
- Linux operating systems supported: Yes
Weight & dimensions
- Width: 154 mm
- Depth: 203 mm
- Height: 148 mm
- Weight: 2000 g
Technical details
- Sustainability certificates: ENERGY STAR
