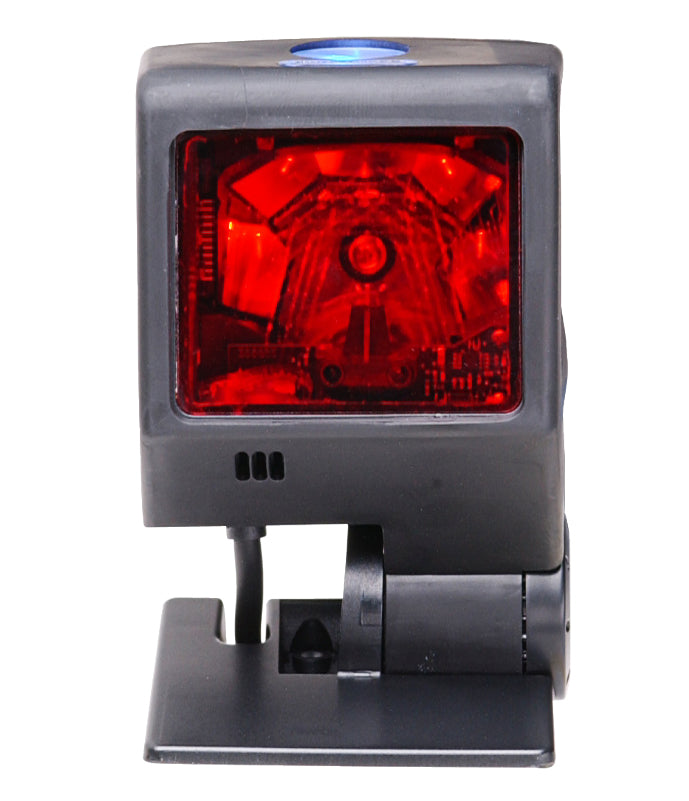

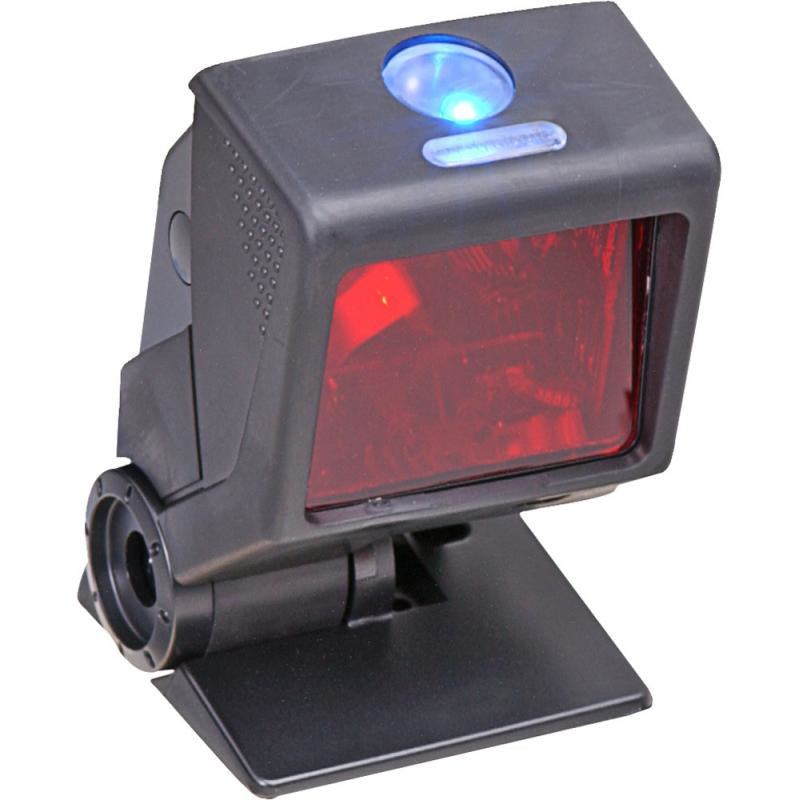

Honeywell’s QuantumT® 3580 provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a convenient size. The small footprint and numerous stand options for QuantumT minimize required counter space, increasing available room for merchandise and advertisement displays. Ideal for presentation scanning in moderate-volume retail environments such as convenience stores, liquor stores and pharmacies, end users can individually customize the scan pattern and operate the scanner in either a hand-held or hands-free fashion. In addition, its rugged, rubber housing provides the necessary protection against daily operational use.
Scanning
- Type: Fixed bar code reader
- Scanner type: 1D
- Sensor type: Laser
- 2D (matrix & stacked) barcodes supported: Not supported
- Linear (1D) barcodes supported: GS1 DataBar Expanded
- Read rate (max): 1650 reads/s
- Light levels (direct sunlight): 0 - 4842 lx
- Wavelength: 650 nm
- Tilt reading angle: 0 - 360 °
- Pitch reading angle: 0 - 60 °
- Yaw reading angle: 0 - 60 °
- Maximum scan width: 279 mm
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: RS-232
- Cable length: 2.1 m
Performance
- Product colour: Black
- LED indicators: Power
- Certification: FCC Part 15, class B, ROHS, CE UL
Power
- Power source type: DC
- Power consumption (typical): 1.4 W
- Input voltage: 5 V
- Power consumption: 275 mA
Weight & dimensions
- Width: 67 mm
- Depth: 66 mm
- Height: 108 mm
- Weight: 170 g
