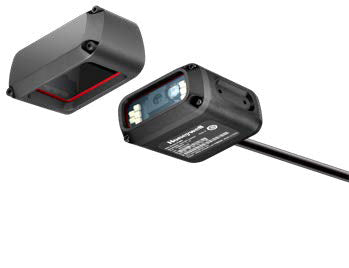

The HF800 combines powerful barcode reading algorithms with industrial hardware design to offer scanning performance with high reliability, and can be networked to yield a complete scanning solution.
With Honeywell's state-of-the-art technology in encodeing and decoding, the HF800 fixed-mount 2D industrial scanner enables a wide array of high-performance scanning applications. Powerful barcode reading algorithm and industrial hardware design contribute to the high decoding efficiency of the HF800. Quick and easy configuration enables optimized reading with one click. Flexible accessory options and software configurations enable high-performance scanning in a wide array of settings and environments in a more economic way.
Scanning
- Type: Fixed bar code reader
- Scanner type: 1D/2D
- Linear (1D) barcodes supported: PDF417
- Sensor type: LED
- 2D (matrix & stacked) barcodes supported: Aztec Code,Data Matrix,MaxiCode,QR Code
- Optical sensor resolution (W x H): 838 x 640 pixels
- Read rate (max): 60 reads/s
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: RJ-45,RS-232,RS-485
- Cable length: 1.5 m
Performance
- Product colour: Black
- Housing material: Zinc
- International Protection (IP) code: IP65
- LED indicators: Yes
- Buzzer: Yes
Power
- Power source type: RS-232
- Input voltage: 10 - 30 V
Weight & dimensions
- Width: 73.2 mm
- Depth: 52.5 mm
- Height: 29 mm
- Weight: 265 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
Other features
- Windows operating systems supported: Windows 10,Windows 7,Windows Vista,Windows XP
