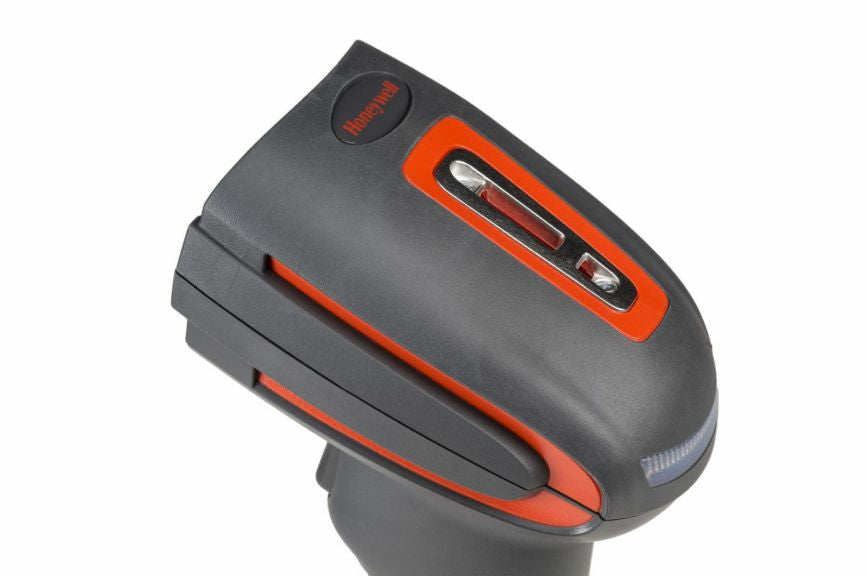

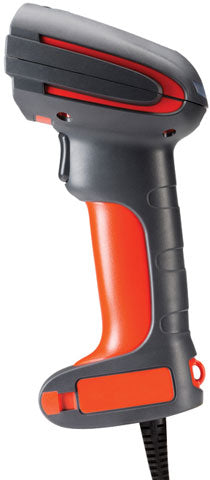

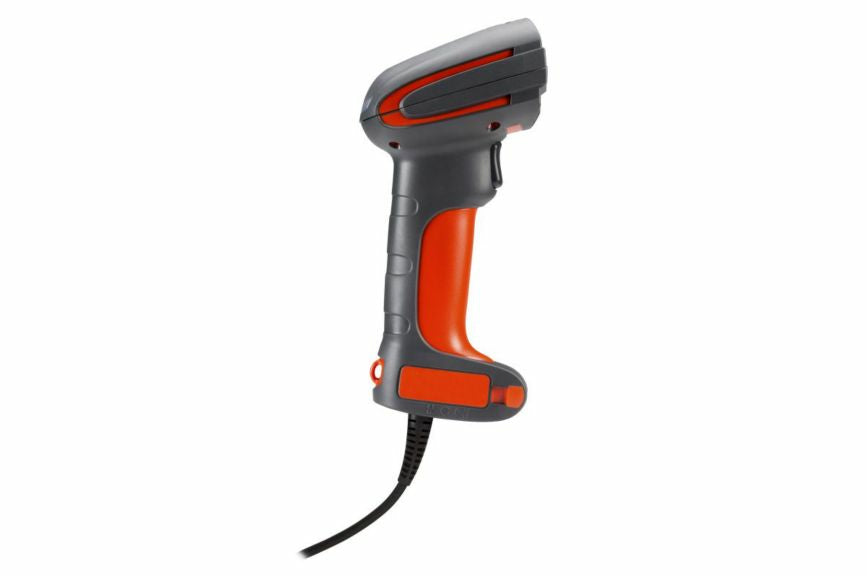

The direct part marks used in industries such as automotive, pharmaceutical, defense and aerospace are hard for many scanners to read. Not so for the tough Granit™ 1920i industrial scanner. Part of the durable Granit family, the Granit 1920i scanner captures virtually any direct part mark with ease, along with standard barcodes on printed labels.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Sensor type: LED
- Linear (1D) barcodes supported: Code 39,PDF417
- 2D (matrix & stacked) barcodes supported: Code 39,PDF417
- Light levels (direct sunlight): 0 - 100000 lx
- Tilt reading angle: 32.2 - 41.4 °
- Pitch reading angle: -45 - 45 °
- Yaw reading angle: -65 - 65 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: Keyboard wedge,RS-232,USB
Performance
- Product colour: Grey,Red
- International Protection (IP) code: IP65
- LED indicators: Yes
Power
- Power source type: DC
- Power consumption (typical): 2.35 W
- Power consumption (standby): 0.5 W
- Input voltage: 4 - 5.5 V
Weight & dimensions
- Width: 74.5 mm
- Depth: 134 mm
- Height: 193 mm
- Weight: 312 g
Packaging data

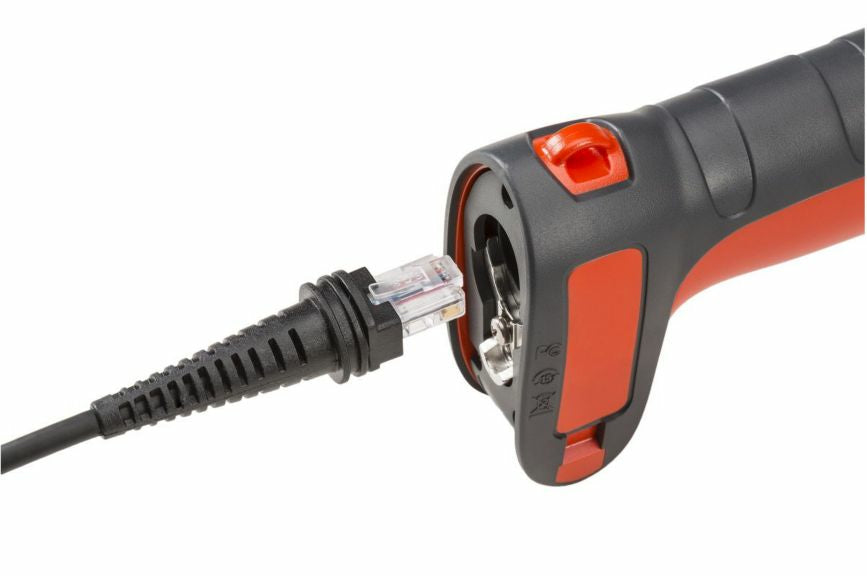

- Cables included: USB
Operational conditions
- Operating relative humidity (H-H): 0 - 95 %
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): -30 - 50 °C
Logistics data
- Harmonized System (HS) code: 84716070
