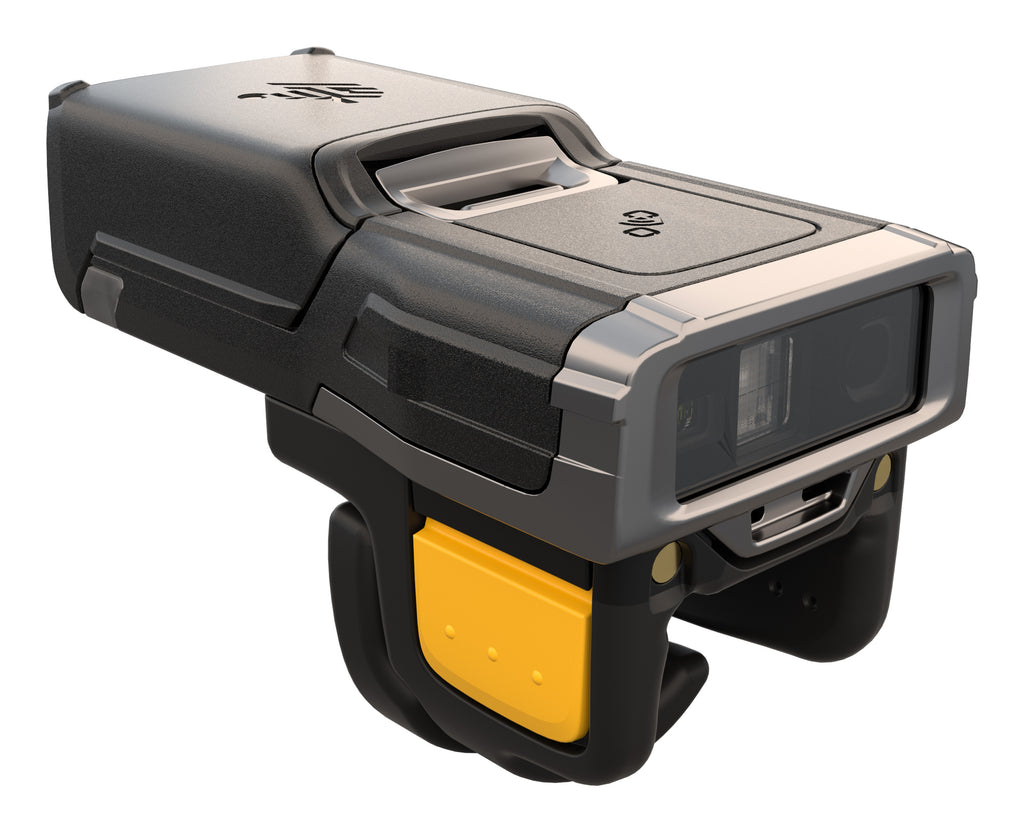

The RS6100 Ring Scanner is a wearable barcode scan solution for both 1D and 2D barcode symbologies. The RS6100 is also compatible with a wide range of mobile computers communicating over Bluetooth.
Scanning
- Type: Wearable bar code reader
- Scanner type: 2D
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,GS1 DataBar,MSI
- 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
- Sensor type: LED
- Optical sensor resolution (W x H): 2688 x 1520 pixels
- Wavelength: 515 nm
- Pitch reading angle: -60 - 60 °
- Yaw reading angle: -60 - 60 °
Ports & interfaces
- Connectivity technology: Wireless
- Near Field Communication (NFC): Yes
Performance
- Product colour: Grey,Yellow
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 735 mAh
Weight & dimensions
- Width: 66.6 mm
- Depth: 32.7 mm
- Height: 21 mm
- Weight: 76 g
Operational conditions
- Operating temperature (T-T): -30 - 50 °C
- Operating relative humidity (H-H): 5 - 95 %
