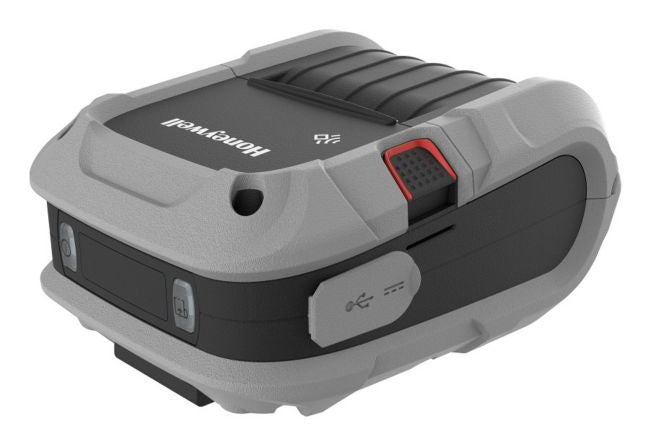

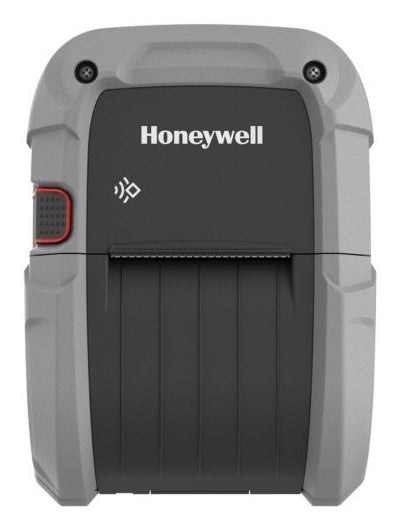

The RPF Series mobile thermal printers are built for the most rugged environments, offering exceptional media and battery capacity, quiet operation, and excellent value to help operations increase efficiency and minimize downtime.
This portable printer provides big productivity gains and reduces errors by enabling workers to print labels at the location they need, so labels can be applied when and where they need to be applied. The RPF printer comes with powerful CPU and smart power management – allowing smooth, continuous operation so your workers can work efficiently with less media reloading, battery swaps, and downtime. The RPF Series printer prints 25.4mm (1 in) to 104.1 mm (4.1 in) labels/receipts and can accommodate a wide variety of media, including the heavy stock necessary for hang tags and specialty label needs. Plus, its fast and easy-loading design means fewer interruptions and increased productivity in your application, whether using one type of media or several. The RPF Series has the latest 802.11 a/b/g/n/ac Wi-Fi capabilities for the best range and fast data communications on your WLAN. It also includes a Bluetooth 5.0 LE radio at no additional charge for when workers are outside of WLAN range or using the printer with a Bluetooth mobile computer.
Built on Honeywell’s software platform, the RPF printer offers IT managers easy integrated device management, a high level of security throughout the entire printer lifespan, and upgrades that allow your printers to be updated with enhanced features.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 127 mm/sec
- Maximum printing width: 48 mm
- Maximum print height: 991 mm
Paper handling
- Media thickness: 0.05 - 0.16 mm
- Maximum roll diameter: 25 mm
Ports & interfaces
- Connectivity technology: Wireless
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 5 (802.11ac)
- Bluetooth: Yes
- Bluetooth version: 5.0
- USB port: Yes
- USB 2.0 ports quantity: 1
Performance
- Internal memory: 256 MB
- Flash memory: 2000 MB
- Image formats supported: BMP,GIF,PCX,PNG
- Security algorithms: EAP-FAST,EAP-LEAP,EAP-PEAP,EAP-TLS,EAP-TTLS,LEAP,TKIP,WEP,WPA,WPA2,WPA2-AES,WPA2-CCMP
Design
- Product colour: Black,Grey
- Built-in display: No
- Display: No
Power
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 2500 mAh
- Battery voltage: 7.2 V
System requirements
- Windows operating systems supported: Yes
- Mobile operating systems supported: Android,iOS
Operational conditions
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -30 - 65 °C
- Operating temperature (T-T): -20 - 55 °C
Weight & dimensions
- Width: 116 mm
- Depth: 77 mm
- Height: 160 mm
- Weight: 720 g
Packaging content
- Batteries included: Yes
Technical details
- Compliance certificates: CB,CE,Federal Communications Commission (FCC),RoHS,cTUVus
- Sustainability compliance: Yes
