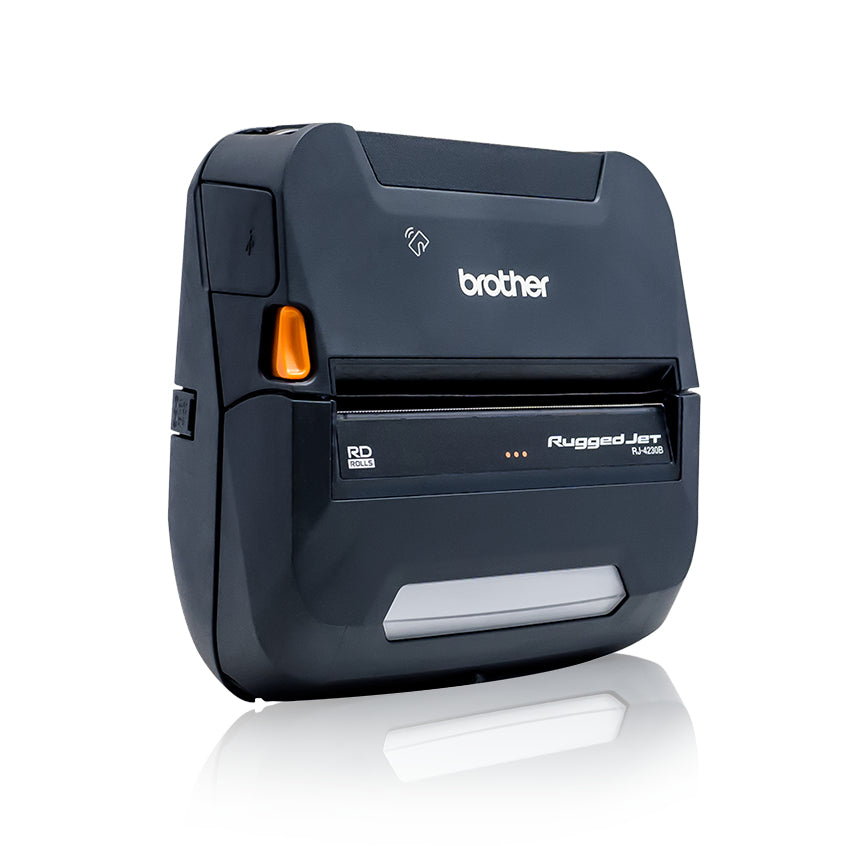

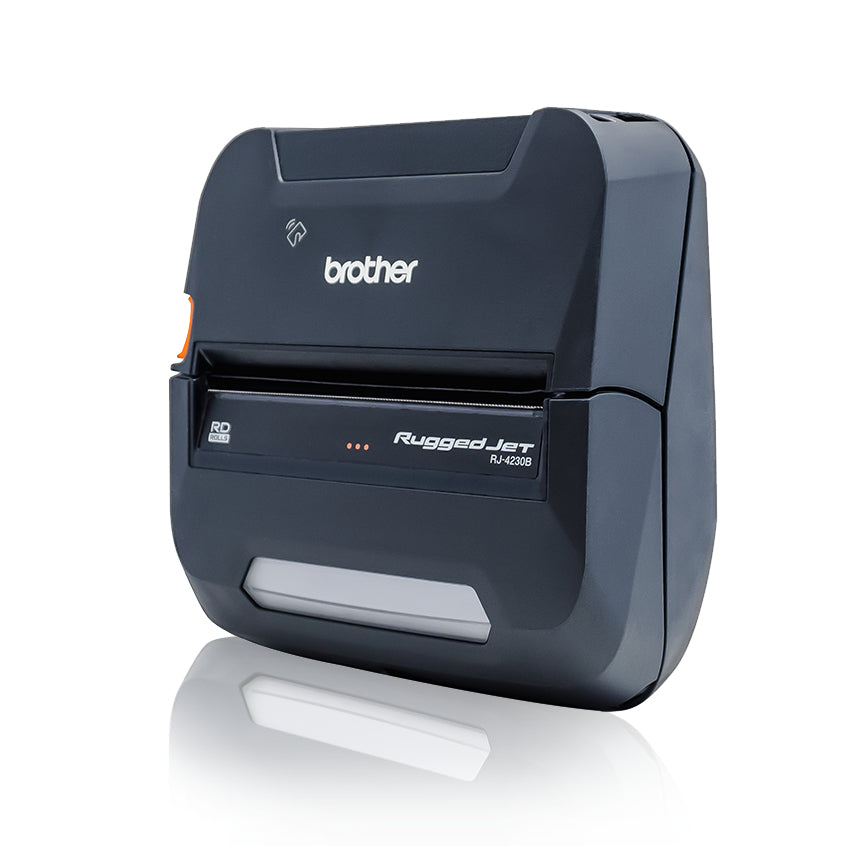

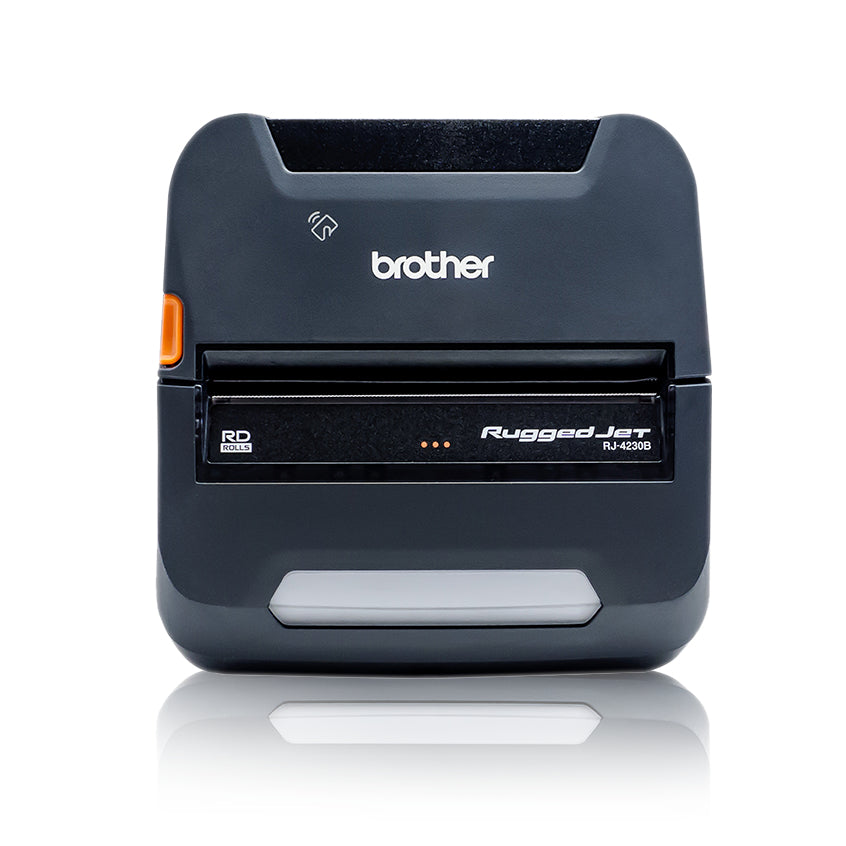

RuggedJet 4230BL
The NEW RuggedJet 4230BL, robust mobile printing for up to 4” labels, tags, and receipts, featuring Bluetooth® wireless technology.
The RuggedJet 4230BL mobile label and receipt printer raises the industry standard with a smart new way to manage and deploy printers, housing design and market leading technology, performance, ruggedness and connectivity. This amazingly fast and rechargeable, portable printing solution is designed to meet the needs of the busy mobile workforce. Print labels, tags, invoices, quotes, receipts, and more on the spot, with convenient Bluetooth connectivity that helps save valuable time.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 127 mm/sec
- Print speed: 5 lpm
- Maximum printing width: 104 mm
- Minimum print length: 12.7 mm
- Maximum print length: 3 m
Paper handling
- Core diameter: 25.4 mm
- Maximum label width: 113 mm
- Maximum roll diameter: 58 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: No
- Wi-Fi: No
- Bluetooth: Yes
- Bluetooth version: 4.2
- Optional connectivity: Near Field Communication (NFC)
Performance
- Page description languages: CPCL-native,ESC P,ESC/P-P,Raster_P,ZPL
- Internal memory: 256 MB
- Flash memory: 64 MB
- Built-in barcodes: AZTECCODE,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,EAN13,EAN8,GS1 COMPOSITE,GS1 DataBar,GS1 DataBar Expanded,MaxiCode,PDF417,QR Code,UPC-A
- Number of fonts: 16
- Security algorithms: 64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK
- Cutter: Yes
- Certification: FCC Part15 Class B, UL, CE, CSA
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Colour display: No
- Backlight display: Yes
- International Protection (IP) code: IP54
Power
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 3000 mAh
- Battery voltage: 7.2 V
- Rechargeable: Yes
System requirements
- Windows operating systems supported: Windows 10,Windows 7,Windows 8,Windows 8.1
- Mobile operating systems supported: Android,iOS
- Server operating systems supported: Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): -20 - 55 °C
Weight & dimensions
- Width: 121 mm
- Depth: 247 mm
- Height: 187 mm
- Weight: 852 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package weight: 1429 g
Packaging content
- Cables included: USB
- Batteries included: Yes
- AC adapter included: Yes
Logistics data
- Pallet gross height: 162 mm
- Pallet gross weight: 264400 g
- Master (outer) cases per pallet: 56 pc(s)
- Master (outer) cases per pallet layer: 8 pc(s)
- Layers per pallet: 7 pc(s)
- Products per pallet: 168 pc(s)
Technical details
- Pallet type: 800 x 1200 mm
Other features
- LED indicators: Yes
- Emulations: ZPL emulation, CPCL
- Country of origin: China
- I/O ports: MFi
