TURNS ALMOST ANY MOBILE COMPUTER INTO A HANDHELD RFID READER

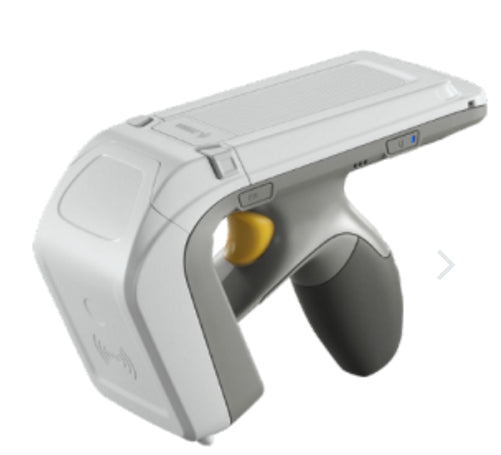

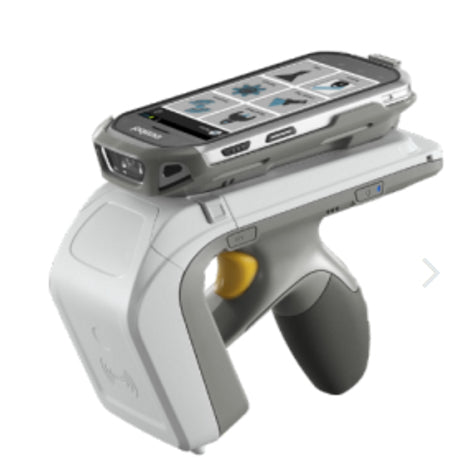

Add high-performance next generation RFID and 1D/2D barcode scanning to the mobile devices of today and tomorrow — simply, easily and cost-effectively. Just pair the Bluetooth-enabled RFD8500 with a compatible Zebra or third-party mobile device and you’re ready to go. You can attach the mobile device to the RFD8500 sled for a complete one-piece solution — or workers can put the mobile device in a pocket and use the RFD8500 in standalone mode.
MULTI-OS, MULTI-PLATFORM AND EASY TO DEPLOY
Leverage your mobile computing strategy and add world-class data collection capability in an economical way. And, it's easy to deploy. Just twist to lock onto or remove the RFD8500 from any Zebra or third-party mobile computer via a Quad Lock or slide-on/slide-off Zebra custom-tailored adaptor
FLEXIBLE CONNECTIVITY OPTIONS: BLUETOOTH® OR BATCH MODE
Enable a real-time wireless connection to your mobile or backend systems via Bluetooth 2.1 or later. If a wireless connection is not available, batch mode enables the collection of up to 500 bar codes and/or 42,000 RFID tags.
HIGH-PERFORMANCE BATTERY AND TAG CAPTURE
With AutoMac and our patent-pending breakthrough antenna design, you get maximum read/write speeds and coverage required to maximize workforce efficiency. And, our unique power-optimizing algorithm delivers the superior battery cycle times that ensure full-shift power, even with intensive usage.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Read rate (max): 600 reads/s
Ports & interfaces
- Standard interfaces: Bluetooth
- Bluetooth version: 2.1+EDR
- Operating frequency: 865 - 868 MHz
Performance
- Product colour: Grey
- Protection features: Dust resistant,Splash proof
- LED indicators: Yes
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 4410 mAh
Weight & dimensions
- Width: 185 mm
- Depth: 130 mm
- Height: 80 mm
- Weight: 430 g
Operational conditions
- Operating relative humidity (H-H): 5 - 85 %
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): -10 - 40 °C
Logistics data
- Harmonized System (HS) code: 84716070
Other features
- Mobile operating systems supported: Android 4.4,Android 5.0,Android 5.1,iOS 8.0,iOS 8.2,iOS 9.0
