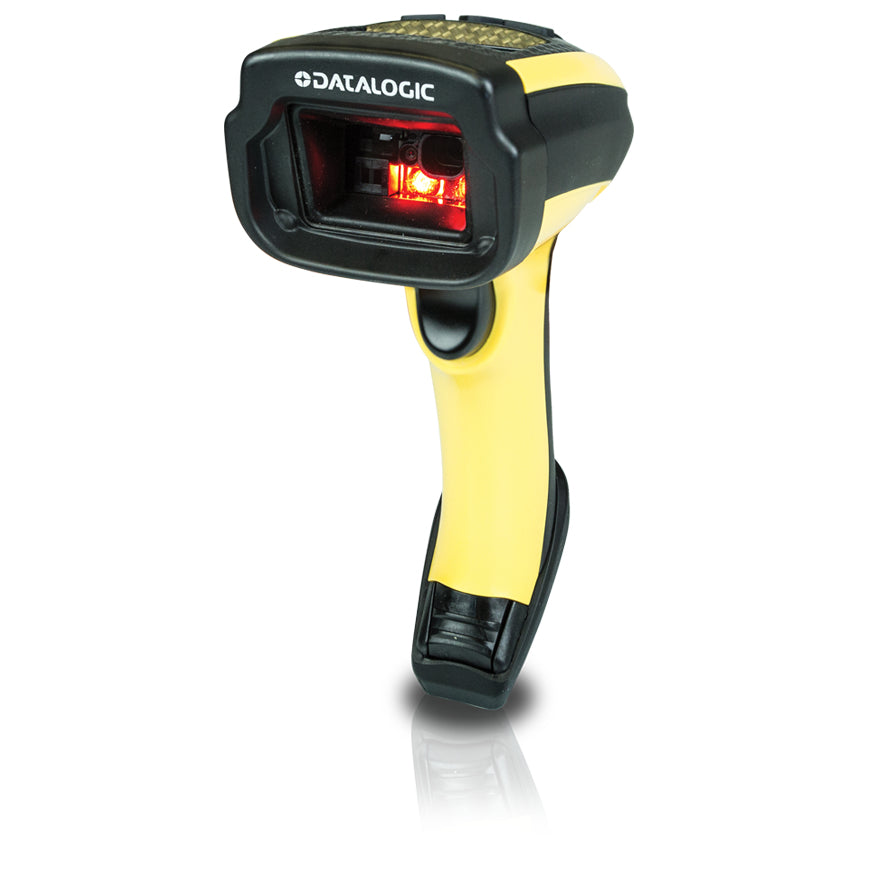

PowerScan 95X1 Auto Range Series
Datalogic is introducing the new PowerScan 95X1 Auto Range (AR) Series, the top performing industrial hand held scanner with extra-long range scanning capabilities on 1D/2D barcodes. This addition further expands the PowerScan 9000 family offering by including the Auto Range 2D imaging models. The PowerScan 9500 AR imager has a powerful autofocus system that allows the scanner to read from a short distance of 15 cm / 6 in to a distance of more than 20 m / 65 ft with a fast focus adjustment, allowing the operator to easily move from a closeup barcode to a barcode at the top of a warehouse rack. A powerful LED lighting system projects a regular pattern with sharp edges that can be used as a field of view indicator in the closeup field, while a laser aimer enables the visibility of the scanner aimer at long distances. The PowerScan 95X1 AR imagers are available in a Desk model (PD9531-AR), and cordless models featuring Datalogic’s STAR Cordless System 2.0 proprietary radio (PM9501-AR) or Bluetooth 3.1 wireless technology (PBT9501-AR). The PowerScan 95X1 AR imagers will share the same accessories as other PowerScan 9XXX series products, allowing a combination of devices and base stations according to the different needs of the user’s environment.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- 2D (matrix & stacked) barcodes supported: Aztec Code,Code 39,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
- Sensor type: LED
- Linear (1D) barcodes supported: Code 128,GS1 DataBar Omnidirectional,JAN,PLANET,POSTNET,RM4SCC / KIX
- Working distance: 20000 mm
- Tilt reading angle: -90 - 90 °
- Pitch reading angle: -40 - 40 °
- Yaw reading angle: -30 - 30 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: RS-232
Performance
- Product colour: Black,Yellow
- International Protection (IP) code: IP65
- Protection features: Shock resistant
- Buzzer: Yes
Power
- Power source type: DC
- Input voltage: 4.5 - 30 V
- Power consumption: 500 mA
Weight & dimensions
- Width: 110 mm
- Depth: 74 mm
- Height: 212 mm
- Weight: 400 g
Packaging data
- Cables included: RS-232
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 95 %
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84716070
