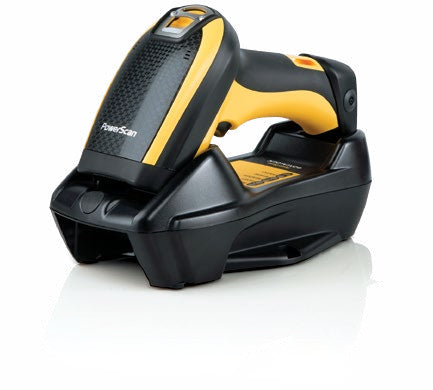

The PowerScan™ PBT9300 laser scanner features standard Bluetooth® wireless technology combined with the outstanding reliability and reading performance found in all PowerScan products.
Based on Bluetooth 3.0 standard wireless technology, Class 1 Range (in open air); up to 100 m / 328 ft. Connectivity is implemented through the receiving base station, which communicates to the host through a choice of interfaces (Serial, USB or Keyboard Wedge) or by connecting the scanner directly to any commercial or embedded Bluetooth compliant device, or via Ethernet by using the BC9180-BT base/charger using Standard Ethernet and Industrial Ethernet protocols (Ethernet IP and Modbus).
The PowerScan PBT9300 scanner mounted on a forklift with a Vehicle Mount Terminal (VMT) provides an excellent solution for warehouse applications.
The PBT9300 is available in three different models: a basic cordless model (PBT9300); an intermediate model with display and a 4-key keypad (PBT9300-D); and the advanced model (PBT9300-DK) which features a display and a full 16-key alphanumeric keyboard. All PowerScan PBT9300 models are available with reading optics for Standard Range (SR) or Auto Range (AR) for reading distances up to 11.5 m / 37.0 ft on reflective codes.
FEATURES
- Bluetooth 3.0 Class 1 compliant
- Supports Bluetooth wireless technology SPP and HID profiles
- Piconet with up to 7 scanners connected to the same base station
- Optics are available in:
- Standard Range: contact up to 1.6 m / 5.2 ft
- Auto Range: up to 11.5 m / 37.0 ft on reflective codes
- Datalogic 3GL™ and loud beeper for good-read feedback
- Drop resistance to 2.0 m / 6.5 ft
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment
APPLICATIONS
Warehouse and Distribution Centers: Shipping and Receiving, Order Processing, Parcel Preparation, Pallet Tracking and Put-away
Manufacturing / Shop Floor: Work in Progress, Component Tracking, Quality Control and Inventory
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- Sensor type: Laser
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,MSI,Plessey,U.P.C.
- Read rate (max): 104 reads/s
- Wavelength: 680 nm
- Tilt reading angle: -35 - 35 °
- Pitch reading angle: -40 - 40 °
- Yaw reading angle: -65 - 65 °
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Standard interfaces: USB,RS-232
- Wireless range: 100 m
- Bluetooth version: 3.0+HS
- Operating frequency: 2400 - 2480 MHz
Performance
- Product colour: Black,Yellow
- International Protection (IP) code: IP65
- LED indicators: Charging,Power
- Certification: CDRH II; EN 60825-1 2
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 2150 mAh
- Number of reads per charge: 50000
- Charging time: 4 h
- Input voltage: 10 - 30 V
- Power consumption: 500 mA
Weight & dimensions
- Width: 212 mm
- Depth: 110 mm
- Height: 74 mm
- Weight: 405 g
Packaging data
- Cables included: No
Operational conditions
- Operating relative humidity (H-H): 0 - 95 %
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
Technical details
- Compliance certificates: RoHS
