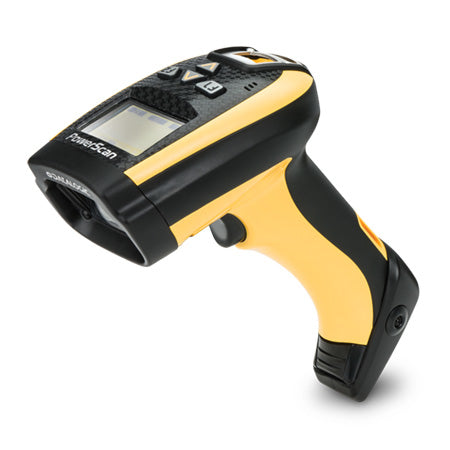

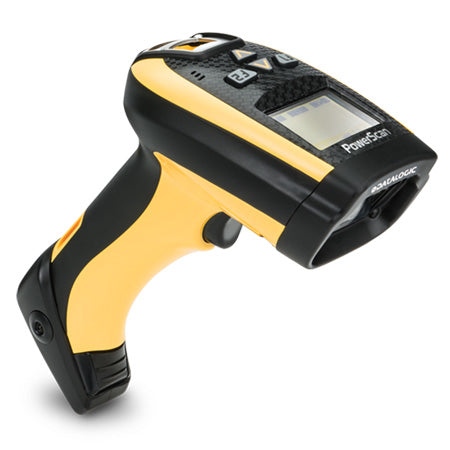

Datalogic PowerScan PM9300, Handheld bar code reader, 1D, Laser, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, Interleaved 2 of 5, MSI,..., 0.076 mm, 104 reads/s

DATALOGICSKU: PM9300-D910RB
1D, 630-680nm, USB/RS-232/RS-485, IP65, Lithium-Ion 2150mAh, 435g, Yellow/Black

Pris:
Reapris6,689.48 kr eks. mva.
Lager:
Preliminärt i lager

The PowerScan™ PM9300 series includes different models able to satisfy all customers’ needs; the PM9300 is the basic cordless model, the PM9300-D intermediate model includes a display and 4-key keypad, and the ultimate PM9300-DK model features a display with a full 16-key keyboard. The PM9300-DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal.

Narrow band radio communications with Datalogic’s STAR Cordless System™ 2.0 provides the key to increased productivity and flexibility in the workplace. It offers scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations.

The PM9300 readers feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented ‘Green Spot’ technology provides visual confirmation directly on the code and dual Good Read LEDs on the top and back of the cap add increased visibility at any angle.

Scanning

  • Type: Handheld bar code reader
  • Scanner type: 1D
  • Sensor type: Laser
  • Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,Interleaved 2 of 5,MSI,Plessey,U.P.C.
  • Read rate (max): 104 reads/s
  • Wavelength: 680 nm
  • Tilt reading angle: -35 - 35 °
  • Pitch reading angle: -40 - 40 °
  • Yaw reading angle: -65 - 65 °
  • Scanner resolution: 0.076 mm

Ports & interfaces

  • Connectivity technology: Wired & Wireless
  • Standard interfaces: USB,RS-232,RS-485,Keyboard wedge
  • Wireless range: 400 m
  • Operating frequency: 910 MHz

Performance

  • Product colour: Black,Yellow
  • International Protection (IP) code: IP65
  • Protection features: Shock resistant
  • Keys quantity: 4 keys
  • LED indicators: Yes
  • Buzzer: Yes
  • Built-in display: Yes
  • Display resolution: 48 x 132 pixels
  • Backlight display: Yes
  • Certification: CDRH Class II IEC 60825-1 Class 2

Power

  • Power source type: Battery
  • Battery technology: Lithium-Ion (Li-Ion)
  • Battery capacity: 2150 mAh
  • Number of reads per charge: 50000
  • Battery life: 10 h
  • Charging time: 4 h
  • Input voltage: 10 - 30 V
  • Power consumption: 500 mA

Weight & dimensions

  • Width: 212 mm
  • Depth: 110 mm
  • Height: 74 mm
  • Weight: 435 g

Packaging data

  • Cables included: No

Operational conditions

  • Operating relative humidity (H-H): 0 - 95 %
  • Operating temperature (T-T): -20 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C

Technical details

  • Compliance certificates: RoHS

Logistics data

  • Harmonized System (HS) code: 84716070
+
