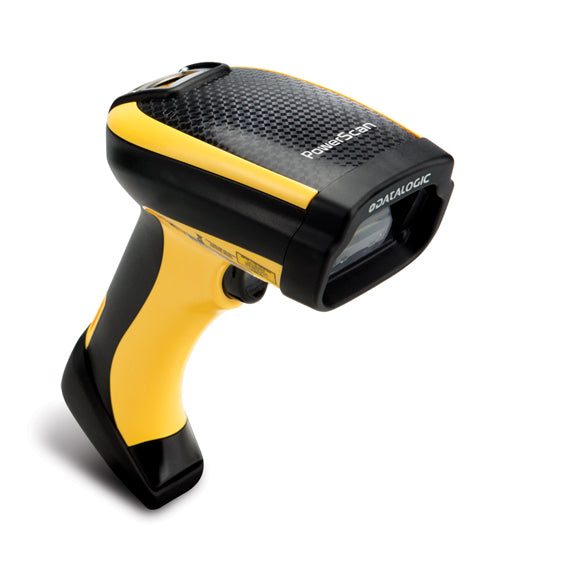

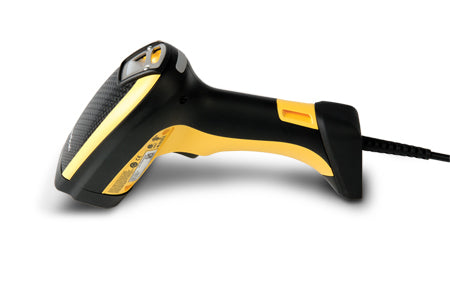

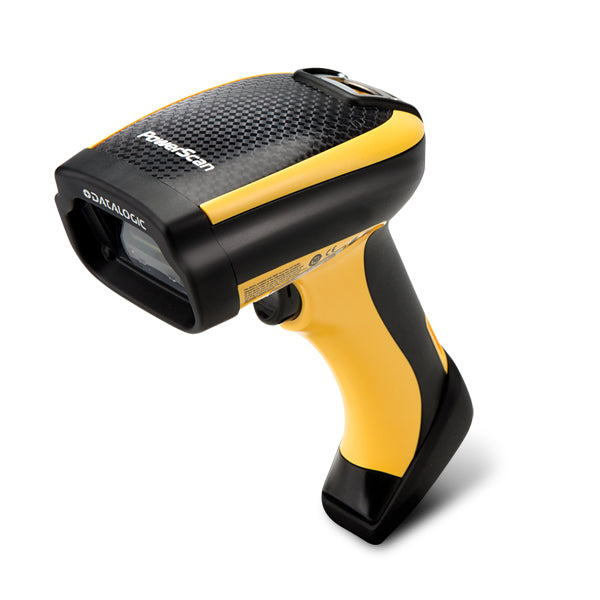

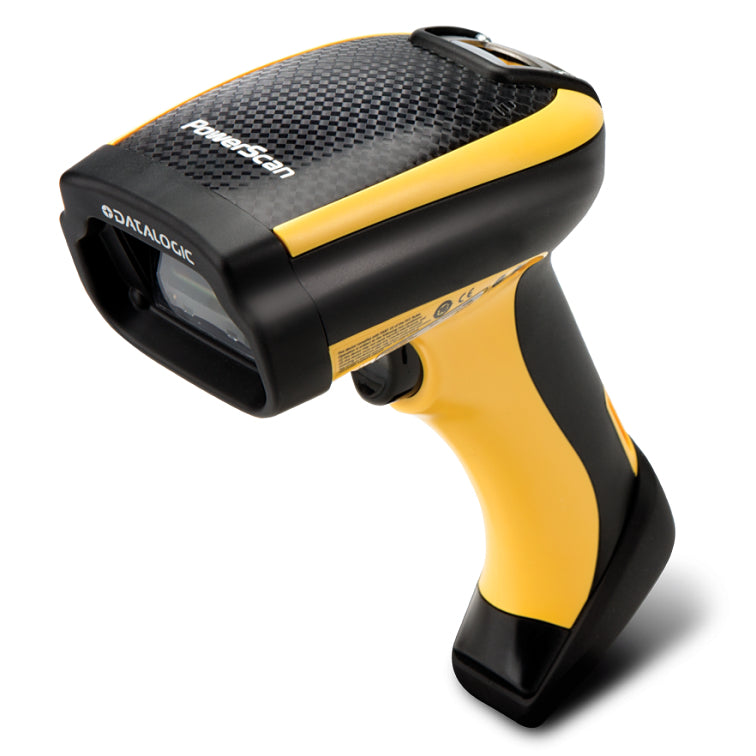

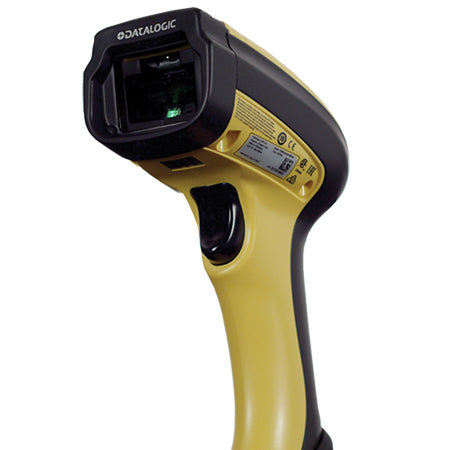

PowerScan PD9130
Overview

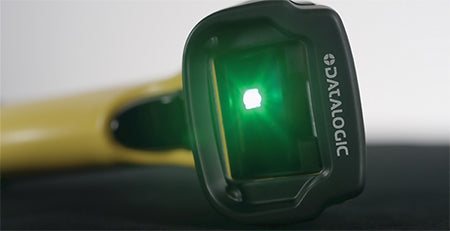

The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager. The PD9130 imager features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle. The PD9130 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations. All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,Plessey
- Sensor type: LED
- Working distance: 6100 mm
- Tilt reading angle: -45 - 45 °
- Pitch reading angle: -75 - 75 °
- Yaw reading angle: -70 - 70 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: RS-232,USB,Keyboard wedge
Performance
- Product colour: Black,Yellow
- International Protection (IP) code: IP65
- Certification: IEC 62471
Power
- Input voltage: 30 V
Weight & dimensions
- Width: 110 mm
- Depth: 74 mm
- Height: 212 mm
- Weight: 340 g
Packaging data
- Cables included: No
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Operating relative humidity (H-H): 0 - 95 %
- Storage temperature (T-T): -40 - 70 °C
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84716070
