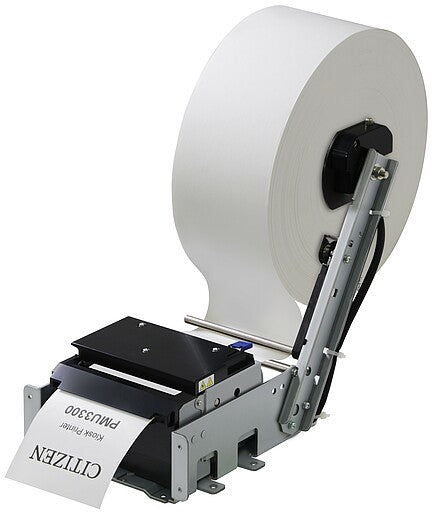

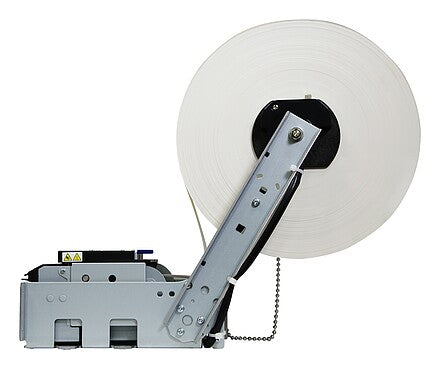

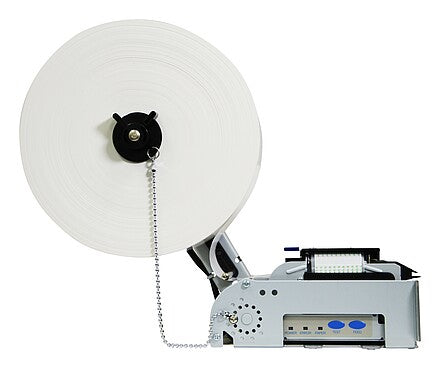

The unique PMU3300 is a compact thermal printer designed for integration into demanding kiosk applications. It features side opening for easy loading, a vandal proof design for ultimate reliability, and its low space requirement makes it ideal for small spaces and enables easy mounting. It also combines 203 dpi resolution, high speed 150mm/sec printing, and a choice of 2 or 3 inch paper widths. Furthermore, since its operating temperatures are between -15 to +65 degrees Celsius, the tough PMU3300 is ideal for all kiosks regardless of extreme temperatures experienced in a wide range of environments.
Printing
- Print technology: Direct thermal
- Type: POS printer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print columns: 72 dots/line
- Print speed (receipt): 150 mm/sec
Paper handling
- Maximum roll diameter: 203 mm
- Supported paper width: 72 mm
- Printing media thickness: 75 µm
Ports & interfaces
- Connectivity technology: Wired
- USB port: Yes
- USB 2.0 ports quantity: 1
- Serial interface: Yes
- Serial interface type: RS-232C
Network
- Wi-Fi: No
Features
- Built-in barcodes: Code 93,Code-128 Codabar Library,Code-39 Library,EAN13,GS1 DataBar Expanded,PDF417,QR Code,UPC-A,UPC-E
- Cutter: Yes
- Autocutter durability: 100 million cuts
- Print head life: 50 km
- Safety: CE UL FCC FCC class A FCC class B
Design
- Product colour: Silver
Power
- Power source type: DC
- AC input voltage: 24 V
Operational conditions
- Storage temperature (T-T): -40 - 85 °C
- Operating temperature (T-T): -15 - 65 °C
Weight & dimensions
- Width: 108 mm
- Depth: 138 mm
- Height: 73 mm
- Weight: 675 g
