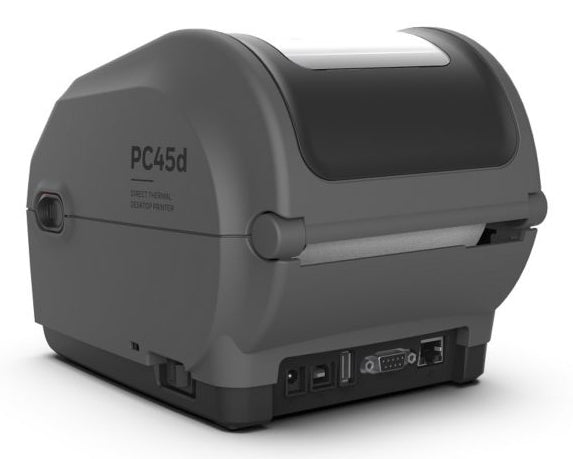

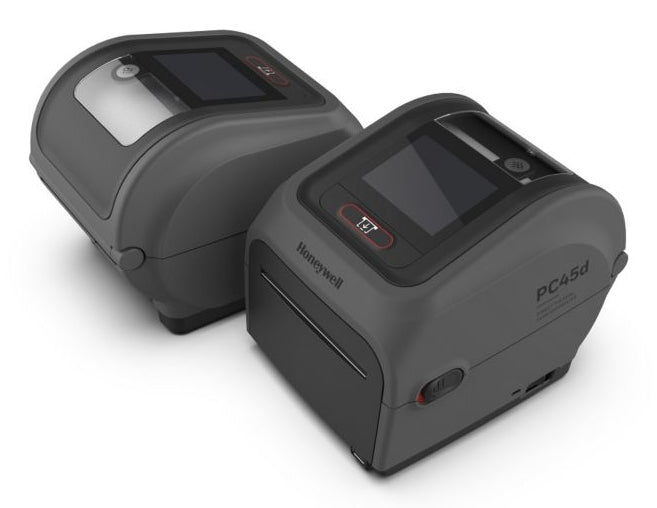

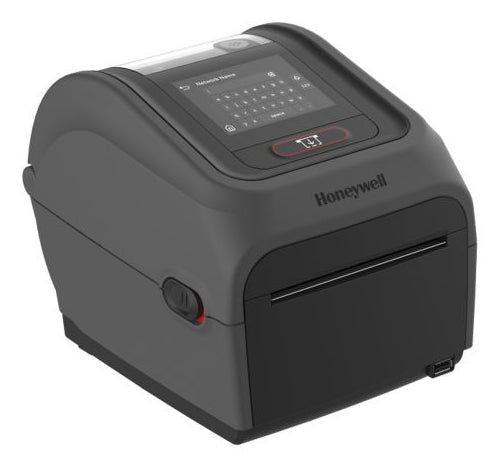

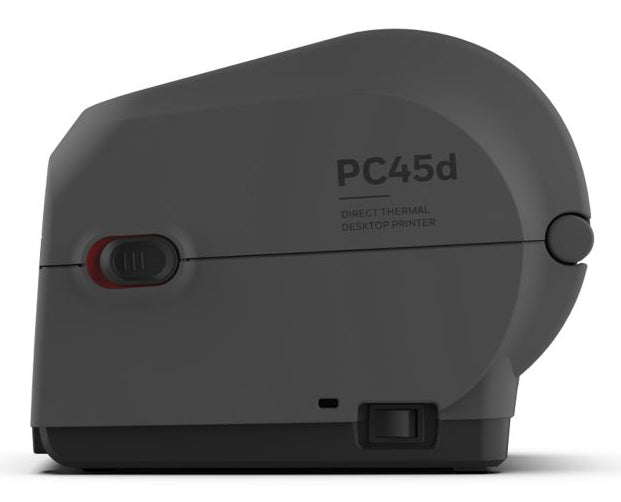

The PC45D direct thermal desktop printer brings powerful performance, reliable connectivity, and easy integration in a compact design to tackle rapidly changing everyday work environments.

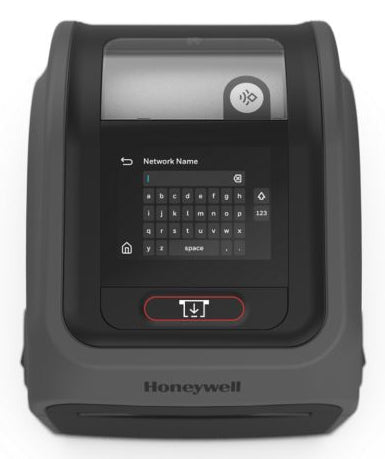

PC45D 4-inch direct thermal printer offers a large touch screen, enterprise-level ruggedness, and multiple new design accessories to support various needs. The PC45 is designed for businesses that invest in solutions and want a durable, stable, secure platform to implement them.
Honeywell Printer Edge™ platform provides a centralized management system for your printer network. Allowing real-time visibility, automated software updates, and enhanced security. This efficient and cost effective solution for businesses looking to optimize printer operations, Honeywell Printer Edge streamlines workflows and helps reduce downtime, making it easier for you to manage costs.
Get connected and stay connected with Wi-Fi 5 and Bluetooth 5.1 LE for continuous productivity. Benefit from WLAN and optional WWAN connectivity for fast data capture allowing for accelerated deployments. With optional low media and low ribbon enabled sensor and RFID, take the guesswork out printer maintenance to avoid unnecessary operational downtime.
Whether on a local server or utilizing the Cloud, the PC45 supports variable network protocols and multiple print languages allowing for easy integration and a seamless transition. Smart Parse technology from Honeywell gives the ability to resize objects, barcodes, or font type without any need to get in on the system backend. Honeywell Operational Intelligence takes it one step further providing remote management capabilities for real-time diagnostics and output performance tracking.
Printing
- Print technology: Direct thermal
- Maximum resolution: 203 x 203 DPI
- Print speed: 8 lpm
- Maximum printing width: 108 mm
- Minimum print length: 6.35 mm
- Printing characters: 2D barcode
Paper handling
- Media thickness: 0.05 - 0.16 mm
- Maximum media length: 6.35 mm
- Maximum roll diameter: 127 mm
- Maximum label width: 118 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- Bluetooth: No
- USB port: Yes
- RS-232 ports: 1
Performance
- Page description languages: DPL,IPL,PDF,XML,ZPL II
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: QR Code
- Built-in RFID module: Yes
- Security algorithms: LEAP,PEAP,TLS,TTLS,WEP,WPA,WPA2,WPA3
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Display diagonal: 3.5 "
- Display resolution: 320 x 240 pixels
- Colour display: Yes
- Backlight display: Yes
- Control type: Buttons
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- AC adapter output voltage: 24 V
- AC adapter output current: 3.15 A
Operational conditions
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 90 °C
- Operating temperature (T-T): 0 - 45 °C
Weight & dimensions
- Width: 181.3 mm
- Depth: 168 mm
- Height: 215.6 mm
- Weight: 1800 g
Technical details
- Compliance certificates: CE,Federal Communications Commission (FCC),RoHS
- Sustainability certificates: ENERGY STAR
- Sustainability compliance: Yes
