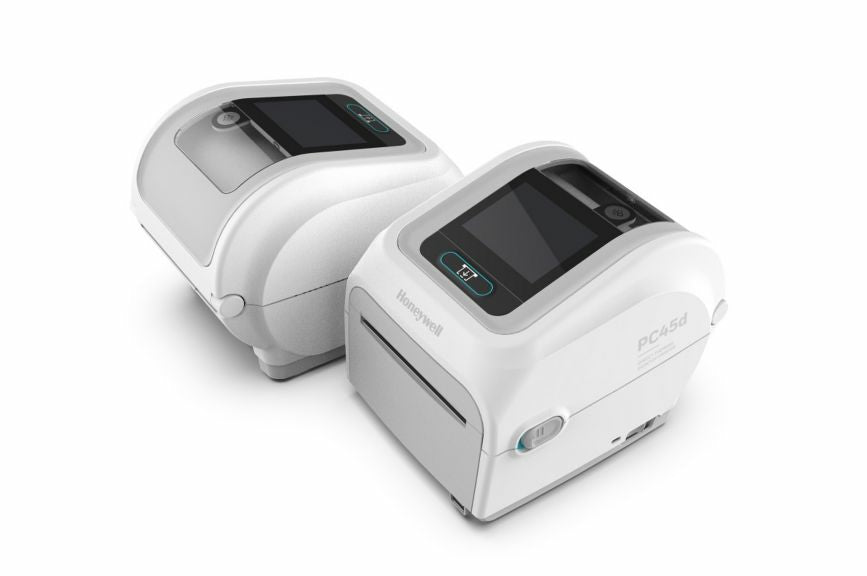

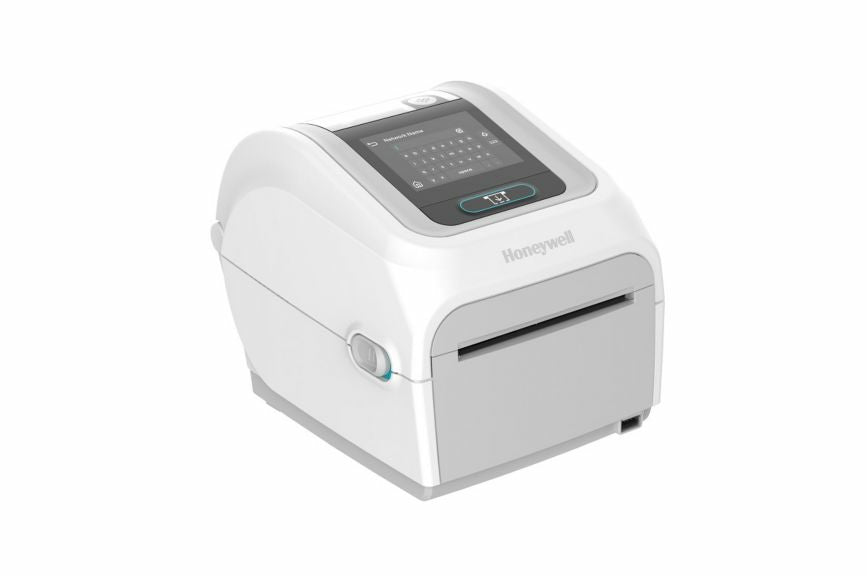

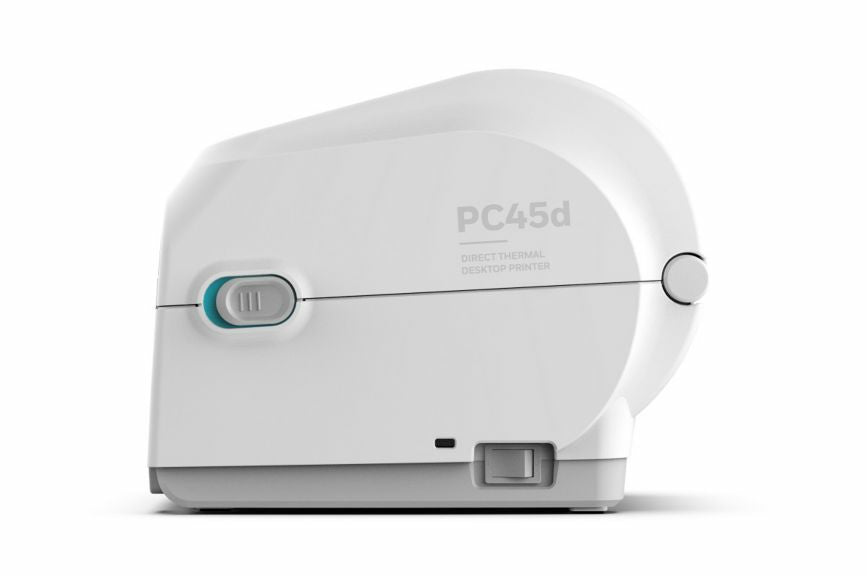

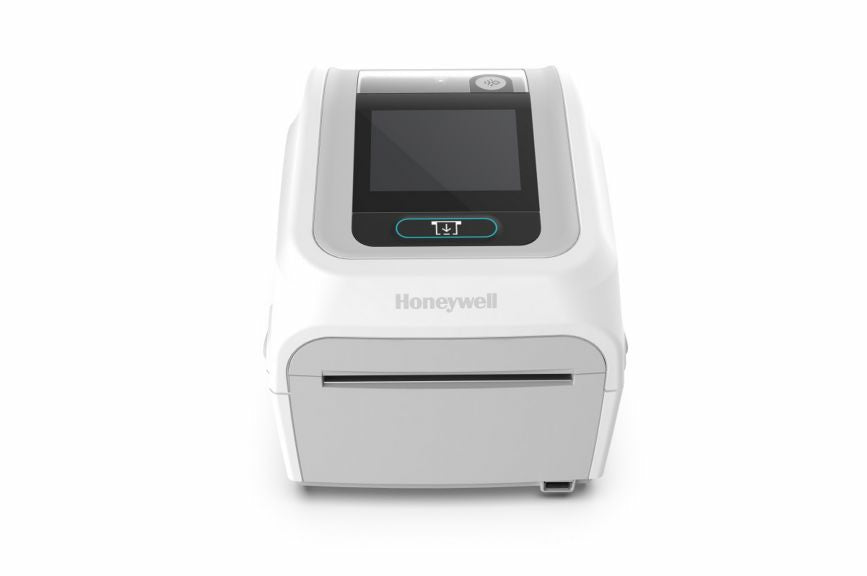

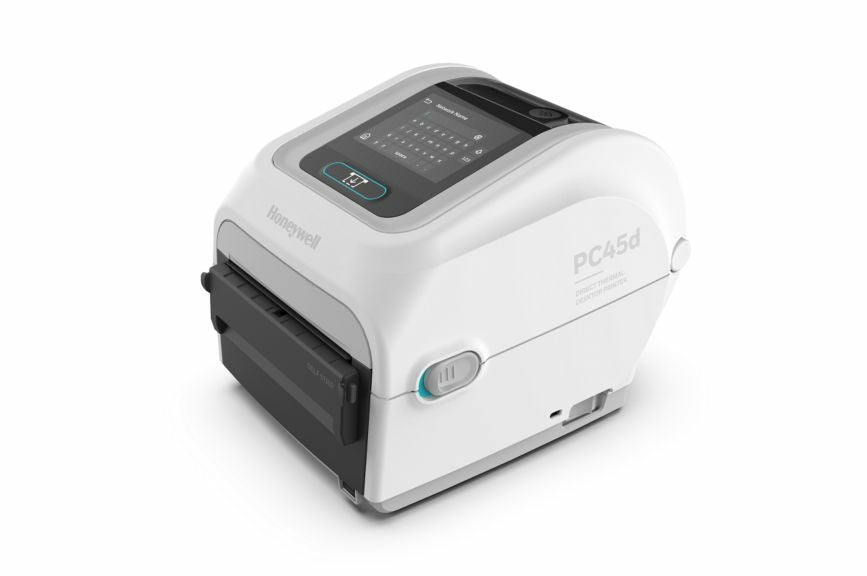

PC45D Desktop Direct Thermal Barcode Healthcare Printer
The PC45D direct thermal desktop printer for healthcare brings powerful performance, reliable connectivity, and easy integration in a compact, disinfectant-ready housing to tackle rapidly changing healthcare work environments.
Designed from proven E-class and PC43 series printers for seamless connectivity, with upgraded premium printing performance and enhanced software. The PC45 direct thermal printer for healthcare clinicians offers a large touch screen, enterprise-level ruggedness, and multiple new design accessories to support various needs. The PC45 is designed for businesses that invest in solutions and want a durable, stable, secure platform to implement them.
Get connected and stay connected with Wi-Fi 5 and Bluetooth 5.2 for continuous productivity. Benefit from WLAN and optional WWAN connectivity for fast data capture allowing for accelerated deployments. With optional low media and low ribbon enabled sensor and RFID, take the guesswork out printer maintenance to avoid unnecessary operational downtime.
Whether on a local server or utilizing the Cloud, the PC45 supports variable network protocols and multiple print languages allowing for easy integration and a seamless transition. Smart Parse technology from Honeywell gives the ability to resize objects, barcodes, or font type without any need to get in on the system backend. Honeywell Operational Intelligence takes it one step further providing remote management capabilities for real-time diagnostics and output performance tracking.
Printing
- Print technology: Direct thermal
- Maximum resolution: 203 x 203 DPI
- Number of printable dots: 12 dot
- Print speed: 8 lpm
- Maximum printing width: 108 mm
- Printing characters: 2D barcode
Paper handling
- Maximum label width: 118 mm
- Maximum roll diameter: 127 mm
- Maximum media length: 6.35 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
- USB port: Yes
- RS-232 ports: 1
Performance
- Page description languages: DPL,IPL,PDF,XML,ZPL II
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: QR Code
- Security algorithms: LEAP,PEAP,TLS,TTLS,WEP,WPA,WPA2,WPA3
Design
- Product colour: White
- Built-in display: Yes
- Display: LCD
- Display diagonal: 3.5 "
- Display resolution: 320 x 240 pixels
- Colour display: Yes
- Backlight display: Yes
- Control type: Buttons
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- AC adapter output voltage: 24 V
- AC adapter output current: 3.15 A
System requirements
- Linux operating systems supported: Yes
- Windows operating systems supported: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 90 °C
- Operating temperature (T-T): 0 - 45 °C
Weight & dimensions
- Width: 181.3 mm
- Depth: 168 mm
- Height: 215.6 mm
- Weight: 1800 g
Packaging content
- Cables included: AC
Technical details
- Sustainability certificates: ENERGY STAR
- Warranty period: 2 year(s)
- Compliance certificates: Federal Communications Commission (FCC),RoHS
- Sustainability compliance: Yes
