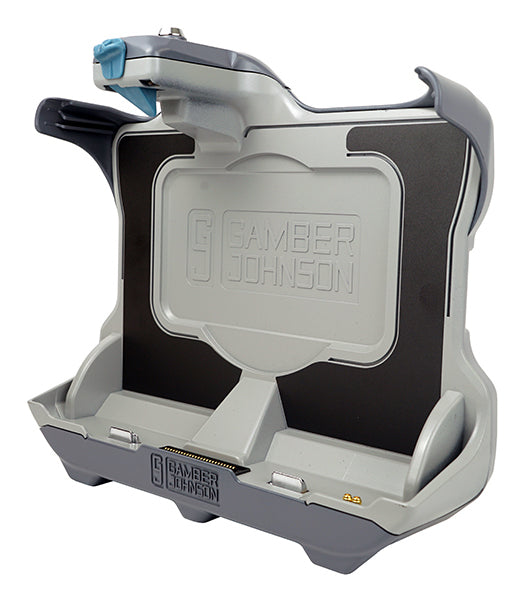

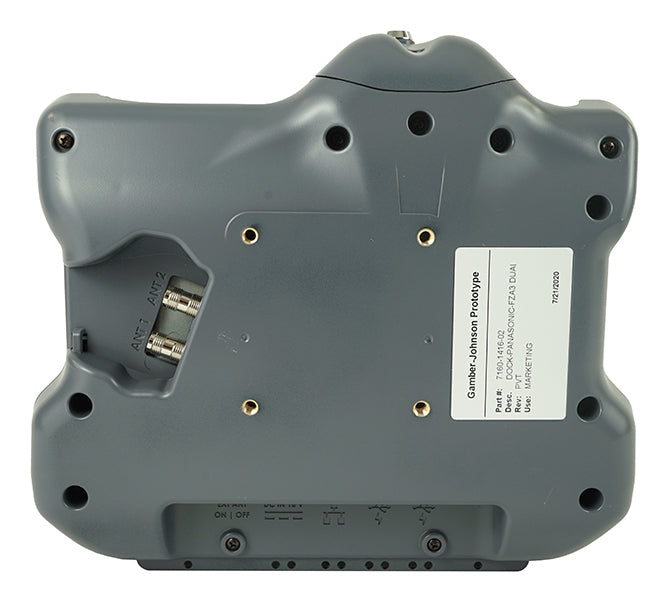

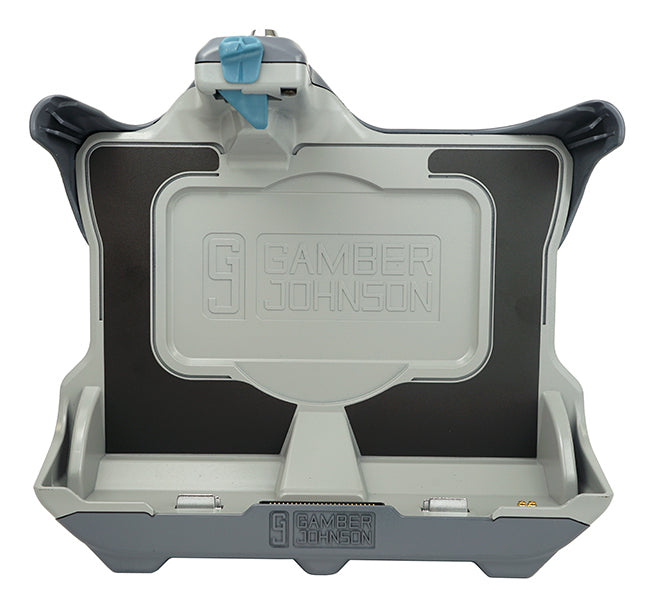

Gamber-Johnson’s Panasonic A3 Tablet docking station (Dual RF) accommodates the tablet’s hand strap with the extended battery. Port replication on this docking station includes dual powered USBs, an ethernet port, power input and an external antenna switch to control the use of an external antenna option. The front-located latch button makes one-handed docking/release very easy, attaches to most Gamber-Johnson motion attachments with the VESA 75mm mounting pattern.
Easy to use one-handed operation
- Insert bottom of computer into the docking station, push top of computer against latch button until latch engages
- To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
Performance
- Basic device type: Tablet
- Brand compatibility: Panasonic
- Compatibility: TOUGHBOOK A3
- Product colour: Black,Grey
- VESA mounting: Yes
- Maximum VESA mount: 75 x 75 mm
- Card reader integrated: No
- Cable lock slot: Yes
- Dual antenna pass-through: Yes
Network
- Bluetooth: No
- Ethernet LAN: Yes
Ports & interfaces
- USB 2.0 ports quantity: 2
- Audio output: No
- HDMI: No
- Ethernet LAN (RJ-45) ports: 1
- Number of antenna connectors: 2
- DC-in jack: Yes
Power
- Power source type: DC
- DC input voltage: 15 V
Weight & dimensions
- Width: 287.8 mm
- Depth: 116.6 mm
- Height: 261.1 mm
- Weight: 980 g
Packaging data
- Quantity: 1
Packaging content
- Adapter included: No
Sustainability
- Doesn't contain: Cadmium,Lead,Mercury (element)
Technical details
- Compliance certificates: CE,Federal Communications Commission (FCC),RoHS
