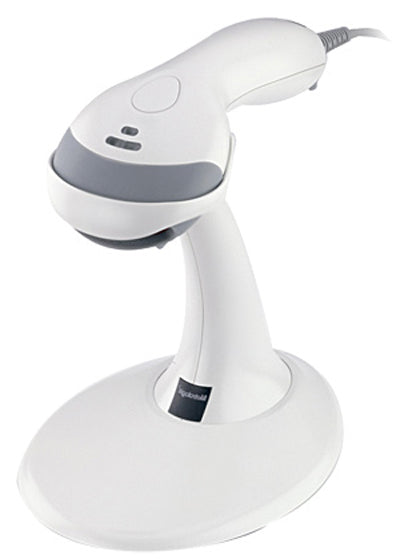

Voyager and VoyagerCG hand-held, single-line laser scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBar. VoyagerCG also includes CodeGate technology for menu scanning applications. CodeGate zeroes in on the desired code and completes data transmission with the push of a single button.
- Automatic trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in
the stand
- CodeGate data transmission: Ideal for menu-scanning applications and when combined with the Auto-Trigger, VoyagerCG is the most intuitive bar code scanning system in the industry
- 650-nanometer laser: Equipped with a high-visibility laser allowing the user to place the line on bar code
- FlashROM: Update firmware from any PC via MetroSet2 software provided free from Metrologic
- Parsing (data editing): Bar code data can be formatted to meet the requirements of host system
Scanning
- Scanner type: 1D
- Sensor type: Laser
- Working distance: 1500 mm
- Wavelength: 650 nm
- Decoding standards: 1D GS1
- Tilt angle range: 0 - 50 °
Ports & interfaces
- Standard interfaces: USB
Performance
- Product colour: White
- Certification: FCC Part 15 ICES-003 EN55022 Class B
Power
- Input voltage: 5 V
Weight & dimensions
- Weight: 149 g
Operational conditions
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): 0 - 40 °C
Logistics data
- Harmonized System (HS) code: 84716070
Other features
- Dimensions (WxDxH): 78 x 198 x 56 mm
- Light source: 4842 Lux
